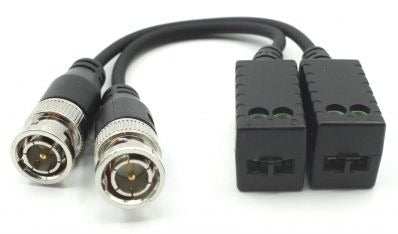

Invid Tech hdbalun-1 Passive Hd Balun Transceiver 5MP

Product Description

The INVID TECH hdbalun-1 is a passive HD video balun transceiver set designed for surveillance installations using CVI, TVI, and AHD camera systems. It supports 4-in-1 signal compatibility and handles video up to 5 megapixels, making it suitable for high-definition analog security camera deployments. A passive design means no external power supply is required for the balun itself, simplifying installation and reducing points of failure. Security technicians and low-voltage installers use this type of device to extend video signals over standard unshielded twisted pair (UTP) cabling instead of coaxial runs.

This balun set is applicable in residential and commercial surveillance installations where existing or new UTP structured cabling is used in place of RG59 or RG6 coax. It is appropriate for retrofit projects converting coax-based analog systems to twisted pair runs, as well as new construction where structured cabling is already in place. The 4-in-1 format supports CVI, TVI, AHD, and CVBS signal types, giving installers flexibility across multiple HD analog camera standards on a single product.

Key Features

• Passive transceiver design requires no external power at the balun
• Supports CVI, TVI, AHD, and CVBS signal formats in one unit
• Rated for video up to 5 megapixels for high-definition analog camera systems
• Enables video transmission over UTP cabling in place of coaxial cable
• Tail-style connector design for straightforward field termination

Compatibility

Designed as a passive HD balun transceiver for use with CVI, TVI, AHD, and CVBS analog HD camera systems up to 5 megapixels.

Installation Notes

Installation is typically performed by low-voltage security technicians familiar with analog HD camera systems and structured cabling practices. Power down the camera and recording equipment before making connections at either end of the UTP run. Ensure cable terminations are tight and properly twisted to minimize signal interference over long runs. Follow local low-voltage wiring codes and any applicable NEC guidelines for signaling cable installation.

Technical Specifications

• Signal Format: CVI, TVI, AHD, CVBS (4-in-1)
• Maximum Resolution: 5 megapixels
• Transceiver Type: Passive

Standard Information

• Brand: INVID TECH
• Manufacturer Part Number: hdbalun-1
