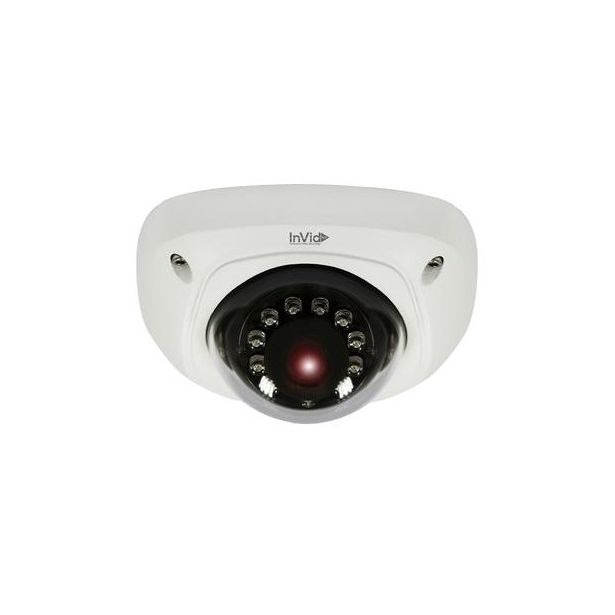

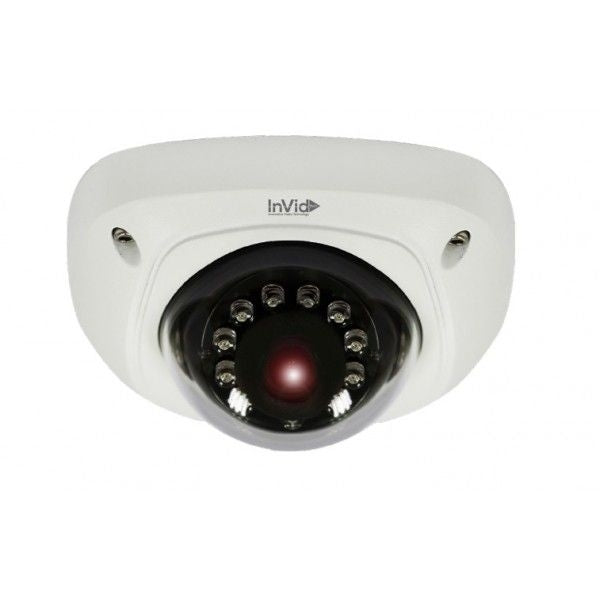

Invid Tech ELEV-C5LIR28 5-2MP TVI/CVI/AHD/CVBS Low Profile Dome 2.8mm with IR 12VDC

Product Description

The INVID TECH ELEV-C5LIR28 is a 5 megapixel field selectable TVI/AHD/CVI/CVBS outdoor low profile dome camera with a 2.8mm fixed lens. It features a 49' IR range and D-WDR. The camera is designed for outdoor use with its IP66 weather resistance and can operate in temperatures down to -40°F. It supports 12VDC power.

• 5-2 Megapixel Field Selectable
• All-in-One Technology (TVI/AHD/CVI/Analog 960h)
• 49’ Smart IR Range
• IP66 Weather Resistant

Product Highlights

5MP, all-in-one technology, fixed lens, true day/night, D-WDR, smart IR range, UTC function, weather resistant, and 12VDC operation.

Product Information

Standard Information

• Brand: INVID TECH
• Manufacturer Part Number: ELEV-C5LIR28

Technical Specifications

• UNSPSC Code: 46171600
• Model: ELEV-C5LIR
• Image Sensor: 1/2.5" CMOS Sensor
• Signal System: NTSC/PAL
• Effective Pixels: 2592(H) x 1944(V)
• Field of View: Horizontal: 102° Vertical:74°
• Electronic Shutter: AUTO/ 1/50（1/60）-1/50,000sec
• Min. IIIumination: 0.01Lux
• Video Output: TVI:5MP 20/12.5 FPS, 4MP 30/25/12.5 FPS, 2MP 30/25 FPS AHD:5MP 20/12.5 FPS, 4 MP 30/25 FPS, 2MP 30/25 FPS CVI:4MP 30/25 FPS, 2 MP 30/25 FPS CVBS
• Video Output By Default: TVI: 5MP @ 20 FPS AHD:2MP @ 30 FPS CVI: 2MP @ 30 FPS CVBS
• Dip Swith: Support
• UTC Control: Support
• Mirror Image: Yes
• Auto Iris: No
• Sharpness: Yes
• Defogging: No
• BLC: Yes
• D-WDR: Yes
• S/N Ratio: >41dB
• Noise Reduction: 2DNR
• Day&Night: Color / B&W/ AUTO / EXT
• White Balance: Manual/Auto
• AGC: Auto
• IR LED: 10pcs IR LED
• IR Range: Up to 49 ft
• Focal Length: 2.8mm Fixed Lens
• Lens Type: Fixed Iris
• Mount Type: M12
• IP Rating: IP66
• Casing: Metal
• Power Supply: DC12V(+/-10%)
• Power Consumption: IR OFF:85mA / IR ON:220mA
• Operating Temperature: -40°F-140°F(—40~+60℃)
• SKU: ELEV-C5LIR28
• Features: Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, On Screen Display Menu, Weather Resistant, Wide Dynamic Range
• Manufacturer: InVid
• NDAA: Compliant
• Camera Signal: Analog, HD-AHD, HD-CVI, HD-TVI
• Resolution: 5 Megapixel
• Sensor Option: 1/2.5" CMOS
• Lens Size: 2.8mm
• Infrared Distance: 0~60 Feet
• Durability: Weather Resistant
• Voltage: 12vDC
• Image Device: 1/2.5" CMOS Sensor
• Image Pixels-Effective: 2592 (H) x 1944 (V)
• IR Distance: 14.93m/49ft
• Minimum Scene Illumination: 0.01Lux
• Weatherproof: IP66
• Angle of View: Horizontal: 102° Vertical:74°
• Auto Gain Control: Yes
• Back Light Compensation: Yes
• Automatic White Balance: Yes
• Mirror: Yes
• On Screen Display Menu: Yes
• Wide Dynamic Range: Yes
• body: Mini Dome
• type: Low Profile
• defog: No
• series: Elevate
• material: Metal
• iris type: Fixed
• lens mount: M12
• protection: Ip66
• illuminator: Up To 49 Ft Ir
• focal length: 2.8 Mm
• shutter mode: Auto
• camera weight: 1.43 Lb
• shutter speed: 1/50 (1/60 To 1/50000 Sec)
• outdoor indoor: Outdoor
• image enhancement: Blc, 2Dnr, D-Wdr
• environmental operating temperature: -40 To 140 Deg F(-40 To 60 Deg C)
• Privacy Masking: Yes
