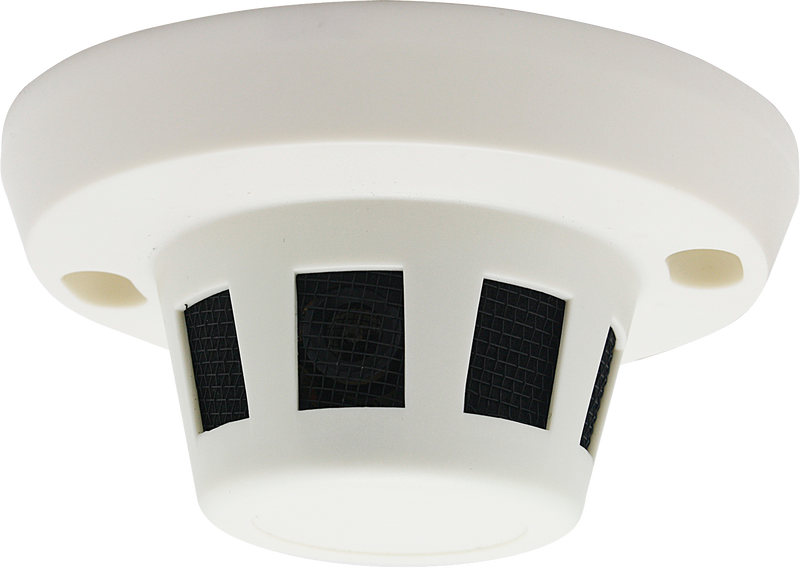

Invid Tech ELEV-ALLSMOKE5 5 Megapixel TVI/AHD/CVI/CVBS Indoor Covert Smoke Detector Housing, D-WDR, DC12V

Product Description

The InVid Tech ELEV-ALLSMOKE5 is an indoor covert smoke detector housing designed for security systems. It features 5 Megapixel resolution and supports TVI, AHD, CVI, and CVBS formats. Equipped with D-WDR technology for enhanced visibility in challenging lighting, it operates on a DC12V power supply. Ideal for discreet surveillance, it combines functionality with a sleek design.

• 5 Megapixel resolution (2592 x 1944)
• All-in-One Technology (TVI/AHD/CVI/Analog 960h)
• Fixed Lens
• D-WDR technology

Product Highlights

Indoor covert smoke detector housing with 5MP resolution, D-WDR, and multi-format support for seamless security integration.

Product Information

Standard Information

• Brand: INVID TECH
• Manufacturer Part Number: ELEV-ALLSMOKE5

Technical Specifications

• UNSPSC Code: 39120000
• Model: ELEV-ALLSMOKE5
• Image Sensor: 1/2.8"
• Sony CMOS Sensor: Sony CMOS Sensor
• Signal System: NTSC/PAL
• Effective Pixels: 2592(H) x 1944(V)
• Minimum Illumination: 0.01Lux
• Video Frame Rate: PAL/NTSC:5MP@20fps
• Video Output: AHD / TVI / CVI / CVBS (960H)
• Video Output Default: TVI
• S/N Ratio: >55dB
• Noise Reduction: 2D & 3D DNR
• Day&Night: Color / B&W/ AUTO / EXT
• White Balance: Auto / Manual
• OSD: English / Chinese / German / French / Italian / Spanish / Polish / Russian / Portuguese / Dutch / Turkish / Korean / Japanese / Hebrew / Arabic
• AGC: Auto
• Mirror Image: Yes
• Auto Iris: No
• Sharpness: Yes
• Defogging: No
• BLC: Yes
• D-WDR: Yes
• Smart IR: No
• Lens: 2.8mm Board Lens
• View Angle: Horizontal: 94 Degree
• Lens Type: Fixed Iris
• Mount Type: M12
• Housing Material: Plastic
• Power Supply: DC12V(+/-10%)
• Power Consumption: < 5W
• Working Temperature / Humidity: -40°F ~ 140°F (-40~+60℃)
• SKU: ELEV-ALLSMOKE5
• Features: Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, On Screen Display Menu, Wide Dynamic Range
• Manufacturer: InVid
• NDAA Compliant: Compliant
• Camera Signal: Analog, HD-AHD, HD-CVI, HD-TVI
• Resolution: 2592 X 1944
• Infrared Distance: Non Infrared
• Durability: Indoor
• Voltage: 12vDC
• Image Device: 1/2.8" Sony CMOS Sensor
• Image Pixels-Effective: 2592 (H) x 1944 (V)
• Minimum Scene Illumination: 0.01Lux
• Operating Temperature: -40°F ~ 140°F (-40~+60℃)
• Digital Noise Reduction: Yes
• Angle of View: Horizontal: 94 Degree
• Automatic White Balance: Auto / Manual
• Auto Gain Control: Yes
• Back Light Compensation: Yes
• Day/Night: Yes
• Mirror: Yes
• On Screen Display Menu: Yes
• Wide Dynamic Range: Yes
• UNSPSC: 39121006
• lens: 2.8Mm
• series: Elevate
• material: Metal
• iris type: Fixed
• frame rate: Pal/Ntsc: 5Mp@20Fps
• lens mount: M12
• illuminator: Color - 0.01 Lux
• camera weight: 0.51 Lb
• day and night: Color / B&W/ Auto / Ext
• outdoor indoor: Indoor
• webpage language: English/Chinese/German/French/Italian/Spanish/Polish/Russian/Portuguese/Dutch/Turkish/Kore
• standards approvals: Ndaa Compliant
• angular field of view: (H): 94 Deg
• signal to noise ratio: >55Db
• environmental operating temperature: -40 To 140 Deg F
• MPN: ELEV-ALLSMOKE5
