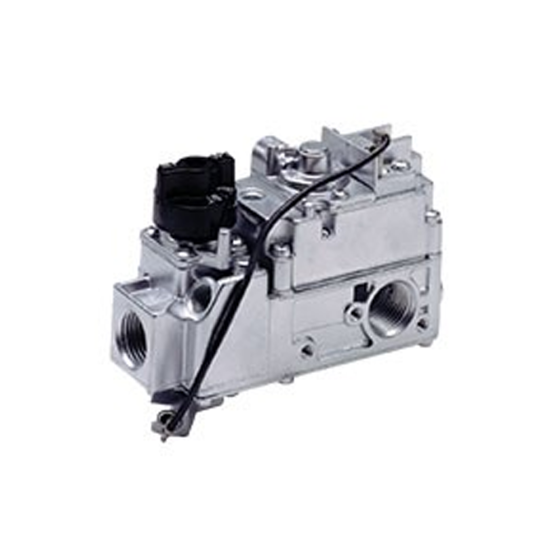

Invensys Climate Controls 710-502 Robertshaw® Low Capacity Millivolt Gas Valve 1/2 inches x 1/2 inches

Product Description

The INVENSYS CLIMATE CONTROLS 710-502 Robertshaw® 710 Series gas valve features a compact control designed for low capacity and limited space applications. It has three-position outlets, multi-positional capability and component replaceability. It is suitable for space heaters and replaces B-67. The gas cock dial has markings for Off - Pilot - On.

• Ambient temperature range of -40°F to 175°F
• Maximum inlet pressure 14" WC (0.5 PSI)
• Various gas types: natural, manufactured, mixed, LP, and LP/air mixtures

Product Highlights

This gas valve has a low capacity with dimensions of 3-13/16"H x 4-21/32"L x 1-29/32" W. It has standard NEMA terminals and an inlet filtered screen.

Product Information

Standard Information

• Brand: INVENSYS CLIMATE CONTROLS
• Manufacturer Part Number: 710-502

Technical Specifications

• Gas Connection Size: 1/2" x 1/2"
• Inlet Size: 1/2"
• Outlet Size: 1/2"
• Pilot Outlet: 1/4" tubing
• Maximum Inlet Pressure: 14" WC (0.5 PSI)
• Electrical Rating: 250 mV to 750 mV
• Capacity: 70,000 BTU
• Pressure Regulation: 3.5" WC Natural Gas
