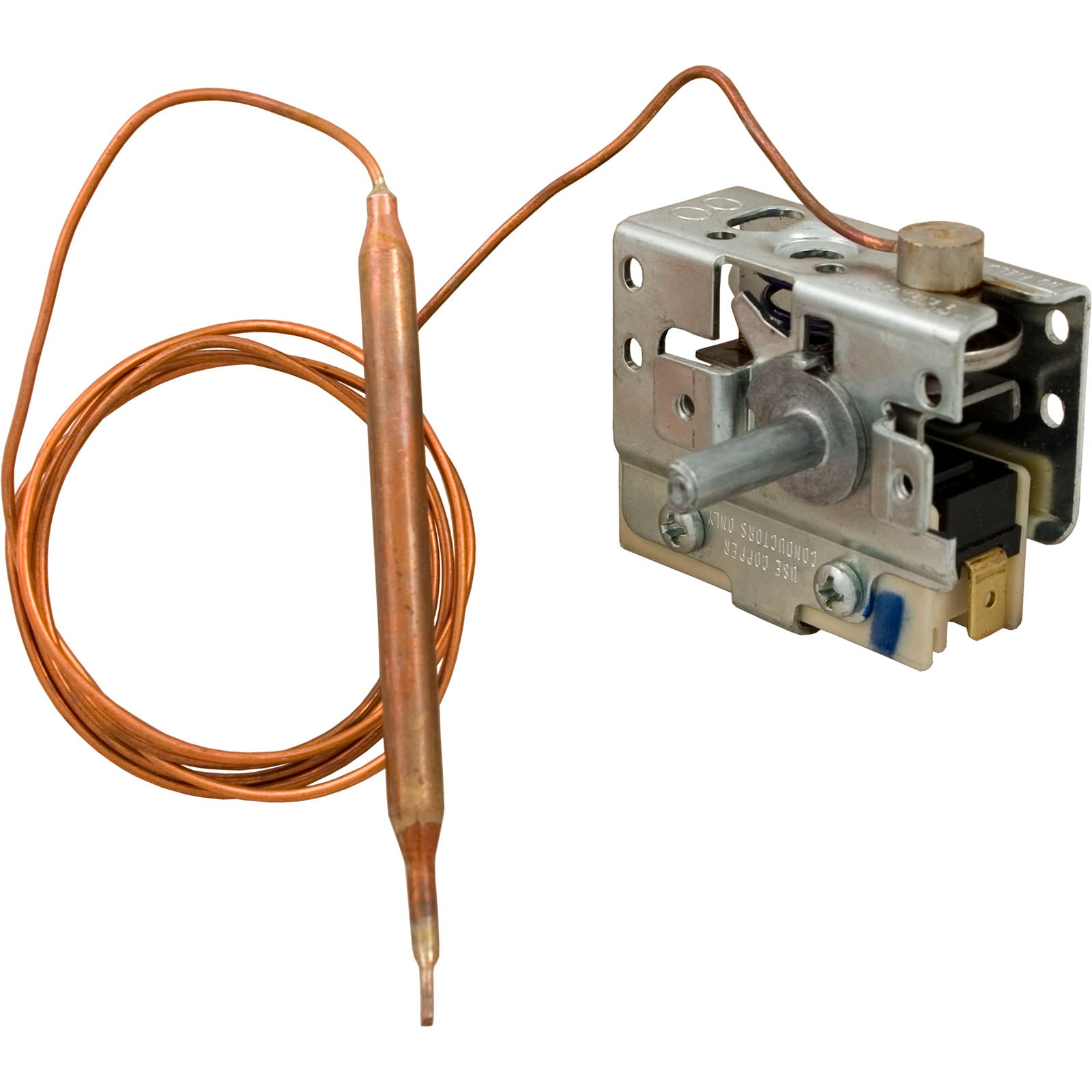

Invensys Appliance Controls 275-3124-00 Thermostat 1/4 36 SPST 275-3124-00

Product Description

The Invensys Appliance Controls 275-3124-00 is a mechanical thermostat designed for various heating applications. This single pole thermostat is rated for a maximum current of twenty-five amps and can withstand temperatures up to one hundred seven degrees Fahrenheit. It is essential for optimal performance to install the bulb in a dry well or groove tube, preferably just before the heater to ensure accurate temperature readings.

• Thermostat type: Mechanical with single pole configuration.
• Capillary length: Thirty-six inches for extended reach.
• Bulb diameter: One-quarter inch to fit standard applications.

Product Highlights

This thermostat serves as a safety device. If there are calibration issues, it is advised to replace it rather than attempting repairs.

Product Information

Standard Information

• Manufacturer: Invensys Appliance Controls
• MPN: 275-3124-00

Technical Specifications

• Thermostat Type: Mechanical
• Thermostat Application: Generic
• Bulb Diameter: 1/4 inch
• Bulb Length: 3.75 inches
• Capillary Length: 36 inches
• Thermostat Amperage: 25A
• Electrical Connection: Slide Connector, 1/4 Male
• Pole/Throw: Single Pole Single Throw (SPST)
