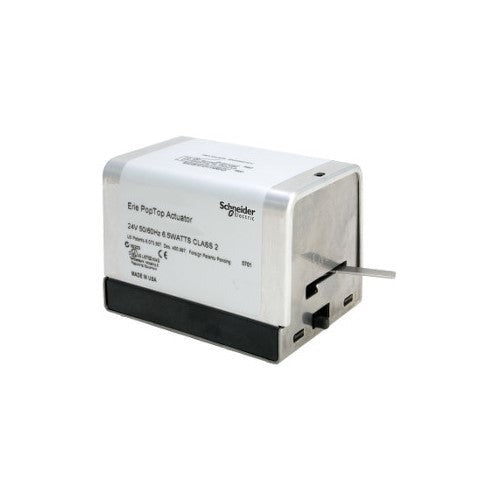

Invensys AG13A01A Two-Position Electric Actuator 24 VAC (NEMA 1)

Product Description

Invensys AG13A01A is a two-position (on/off) electric rotary actuator for zone valves that operates at 24 VAC. It uses a synchronous AC motor with 7.50 VA running power consumption and provides spring-return (normally closed) action with a 51 second stroke time. The unit includes a terminal block, one SPDT auxiliary/end switch, housing scale position indicator, automatic reset override, and a NEMA 1/IP10 enclosure for general temperature applications.

• Two-position (on/off) rotary actuator with spring-return (normally closed) operation and 51 s stroke time
• 24 VAC input, synchronous AC motor, 7.50 VA running power consumption, 50/60 Hz
• Terminal block connections, 1 SPDT auxiliary/end switch, housing scale position indicator, automatic reset override

Product Highlights

24 VAC spring-return rotary actuator for zone valves, NEMA 1 enclosure

Product Information

Standard Information

• Brand: INVENSYS
• Manufacturer Part Number: AG13A01A
