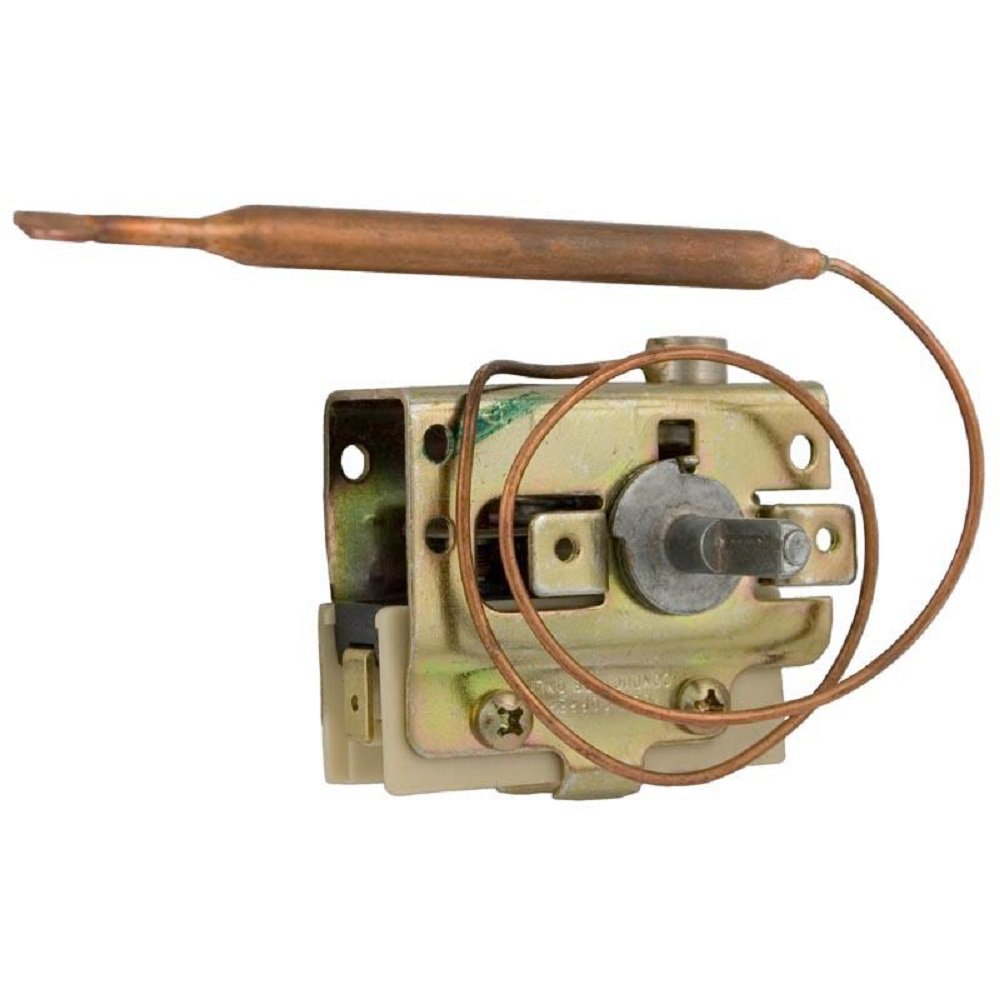

Invensys 275-3123-00 Spa Mechanical Thermostat 12in x 1/4in Capillary Bulb SPST 25A

Product Description

The Invensys 275-3123-00 Spa Mechanical Thermostat is a reliable component used in older spa pack control systems. This thermostat features a 12-inch capillary wire and a 3.6-inch long by 1/4-inch wide copper capillary bulb. The bulb is placed into a thermowell, which is not included. Designed for installation in a dry well or groove tube at or just before the heater, its single pole is rated at 25 amps with a maximum temperature rating of 107 degrees Fahrenheit. Replace the thermostat if it is found out of calibration as it is a crucial safety device.

• Used in older spa pack control systems
• Rated at 25 amps
• Includes a 12-inch capillary wire and 1/4-inch capillary bulb

Product Highlights

The Invensys 275-3123-00 Spa Mechanical Thermostat is a fundamental component for various spa control systems. It is designed to ensure efficient temperature control and safety in your spa system.

Product Information

Standard Information

• Brand: Invensys Appliance Controls
• MPN: 275-3123-00
• Category: Pool & Spa Replacement Parts

Technical Specifications

• Capillary Length: 12 inches
• Bulb Thickness: 1/4 inch
• Max Temp Rating: 107 degrees Fahrenheit
• Current Rating: 25 amps
• Type: SPST
• Connections: 1/4-inch standard tabs
• Weight: 1.00089748 lbs
