Description

Product Description

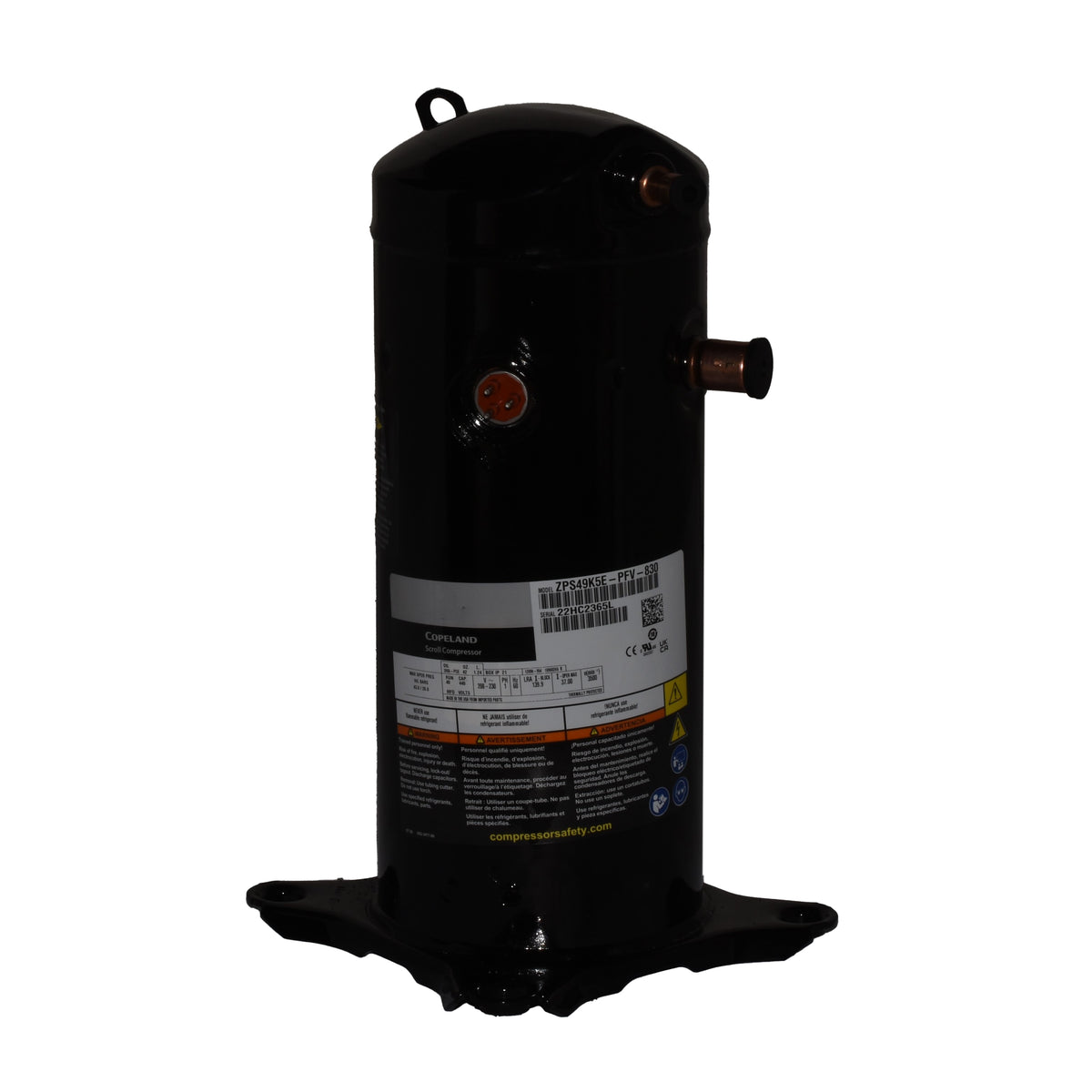

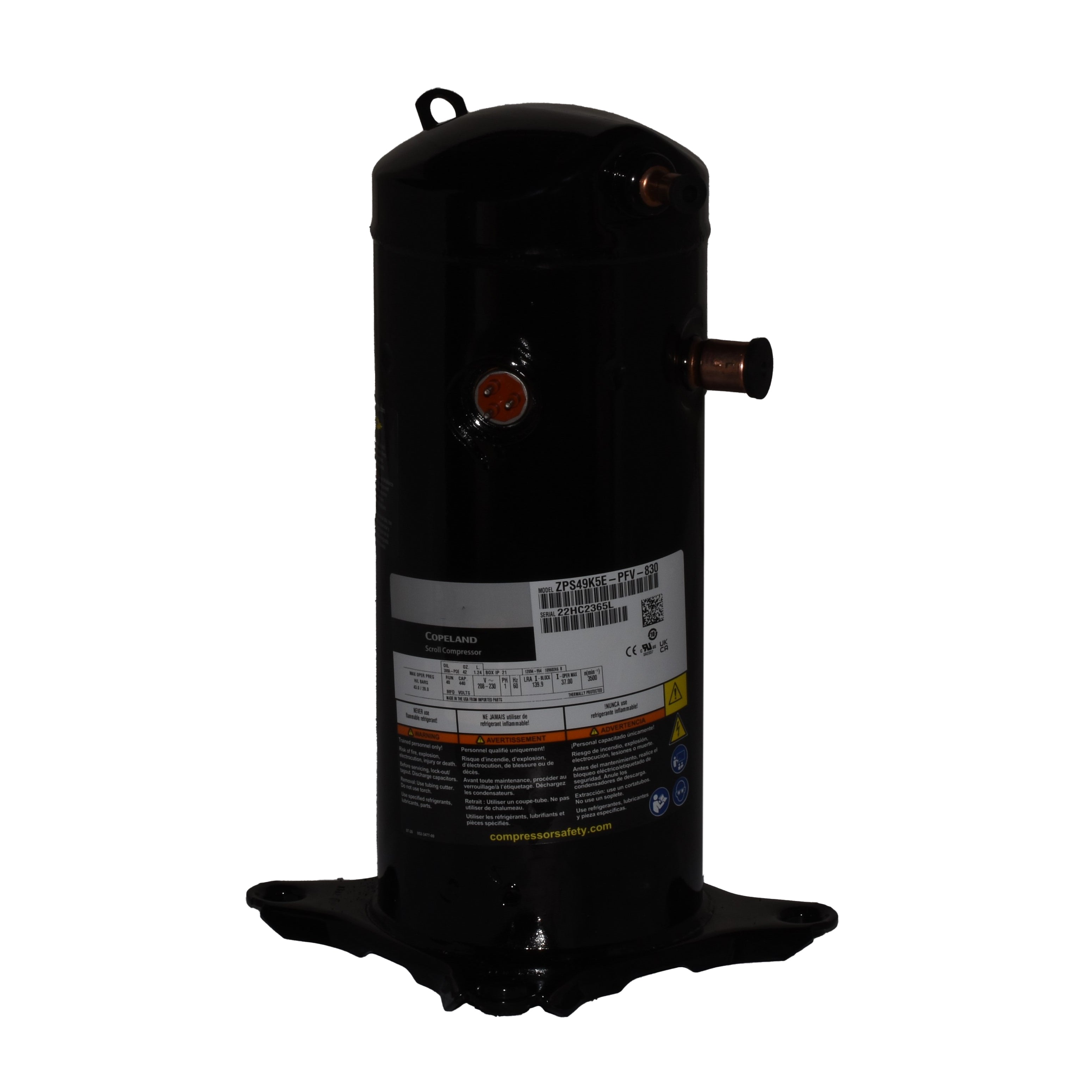

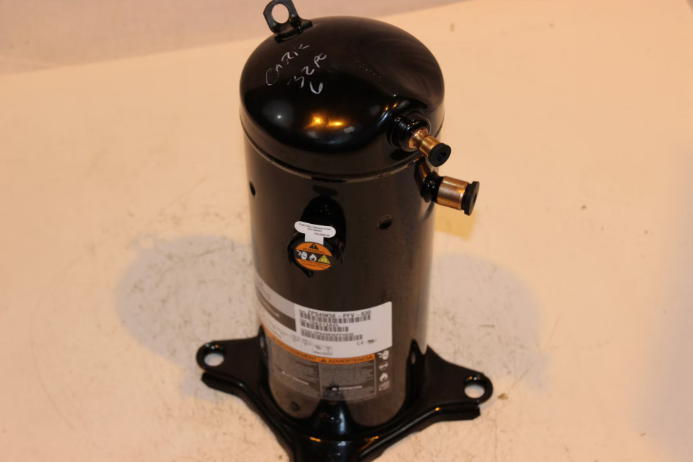

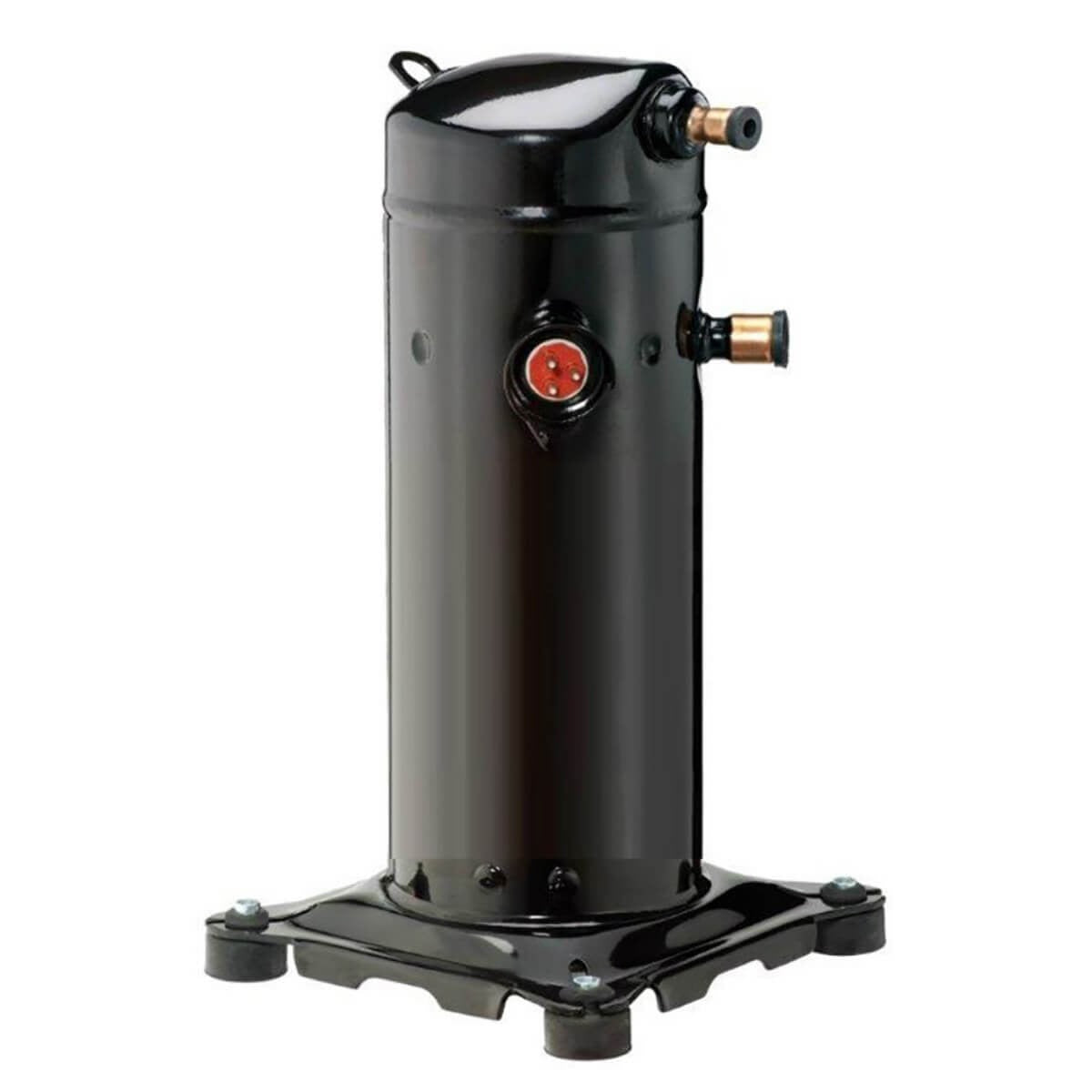

Carrier ZPS49K5E-PFV-830 is a scroll compressor designed for R-410A refrigerant with a nominal capacity of 49,000 BTU and a 208/230 VAC single-phase electrical rating. It employs Copeland UltraTech two-stage scroll technology for staged compression and simplified internal mechanics. Typical applications include residential and light commercial HVAC condensing units and replacements. Reported parameters include a 42 oz POE oil charge, 2.82 in^3/rev displacement, 7.5 x 7.5 x 17.17 in mounting dimensions, and approximately 80 lb weight.

  • Copeland UltraTech two-stage scroll design for staged operation and simplified internal components
  • Nominal capacity 49,000 BTU, refrigerant R-410A, input voltage 208-230 VAC, single phase, 50/60 Hz
  • POE oil charge 42 oz, displacement 2.82 in^3/rev, mounting dimensions 7.5 x 7.5 x 17.17 in, weight ~80.05 lb

Product Highlights

49,000 BTU scroll compressor for R-410A, 208/230V single-phase, Copeland UltraTech two-stage, POE 42 oz oil charge

Product Information

Standard Information

  • Brand: CARRIER
  • Manufacturer Part Number: ZPS49K5E-PFV-830
  • Country of Origin: USA
Technical Specifications
Brand
Carrier
MPN
ZPS49K5E-PFV-830
Input Voltage
208-230 VAC
Refrigerant
R-410A
Capacity (BTU)
49,000 (nominal)
Capacity Range (BTUH)
45,400 to 60,500
Compressor Type
Copeland Scroll UltraTech two-stage
Phase
Single
Cycle/Hertz
50/60 Hz
Weight
80.05 lb
Overall Dimensions
20.3 x 14.9 x 13.2 in (L x W x H)
Mounting Dimensions
7.5 x 7.5 x 17.17 in (mounting/footprint)
Displacement
2.82 in^3/rev
Oil Type
Polyolester (POE)
Oil Charge
42 oz
Sound Level
70-75 dBA
Amps (operating)
17.8-21.1 A
Rated Load Amps (RLA)
30, 26.9 (see notes)
Locked Rotor Amps (LRA)
152.9 A
Discharge Connection Size
1/2 in OD
Discharge Connection Type
Stub
Suction Line Size
7/8 in OD
Suction Line Fitting Type
Stub
Country of Origin
USA
Approvals
UL Recognized
