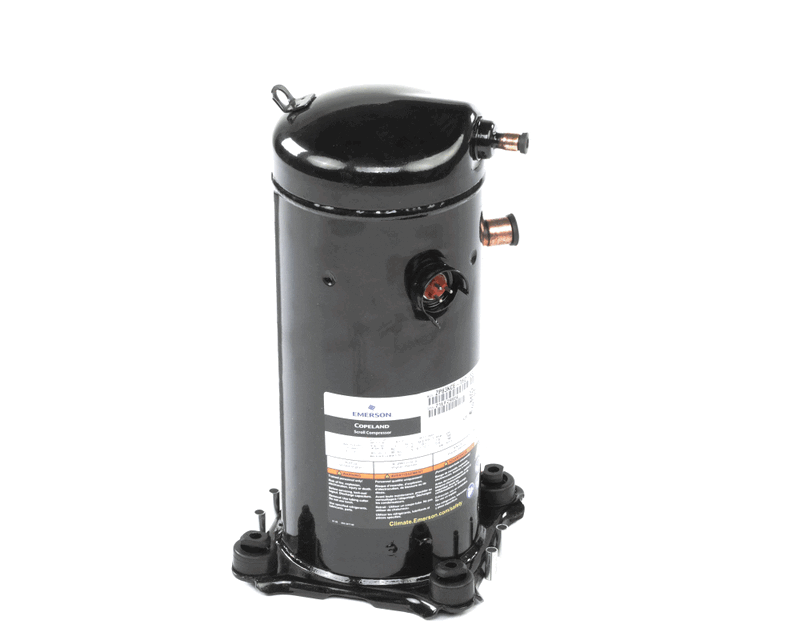

International Comfort Products ZP83KCE-TFD-830 Scroll Compressor 83,000 BTU (Each) ICPZP83KCE-TFD-830

Product Description

International Comfort Products ZP83KCE-TFD-830 is a scroll compressor designed to circulate R410A and R410B refrigerants in HVAC systems. It provides 83,000 BTU capacity and operates on 380–420/460 V at 50/60 Hz for three-phase electrical service. The unit is supplied as an individual replacement compressor and measures 20 in × 15 in × 14 in.

• Compatible with R410A and R410B refrigerants; multi-voltage support 380–420/460 V at 50/60 Hz for three-phase operation.
• Scroll compressor design rated for 83,000 BTU cooling capacity for use in commercial HVAC applications.
• Physical dimensions 20 in × 15 in × 14 in (50.8 cm × 38.1 cm × 35.56 cm); supplied as an each replacement; weight 60.01 lb.

Product Highlights

OEM scroll compressor, 83,000 BTU, R410A/R410B, 380–420/460 V, 50/60 Hz, 3-phase; replacement part ICPZP83KCE-TFD-830.

Product Information

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: ZP83KCE-TFD-830

Technical Specifications

• Product Type: Scroll compressor
• Manufacturer: International Comfort Products
• Manufacturer Part Number: ZP83KCE-TFD-830
• Replacement Part Number: ICPZP83KCE-TFD-830
• Alternative Part Number: V03-ICP-ZP83KCE-TFD-830
• Refrigerant: R410A / R410B
• Capacity: 83,000 BTU
• Input Voltage: 380-420 / 460 V
• Frequency: 50 / 60 Hz
• Number of Phases: 3 (Three phase)
• Dimensions: 20 in x 15 in x 14 in (50.8 cm x 38.1 cm x 35.56 cm)
• Weight: 60.01 lb
• Units: Each
