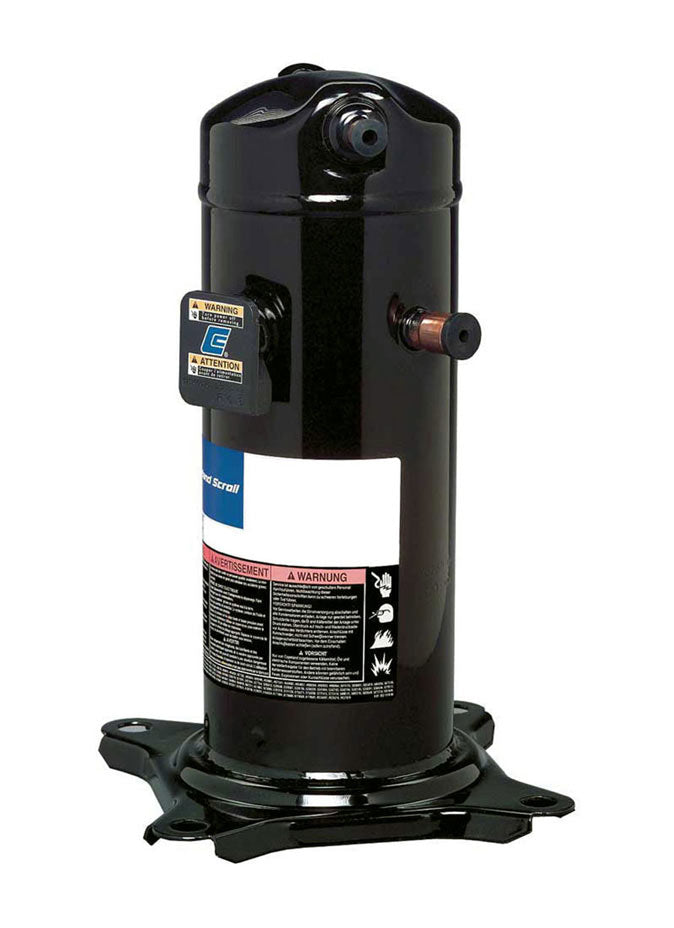

International Comfort Products ZP51LXE-PFV-800 Compressor Scroll R-410A

Product Description

The International Comfort Products ZP51LXE-PFV-800 is an efficient compressor scroll designed specifically for HVACR systems. This hermetic scroll compressor is optimally designed for use with R-410A refrigerant, ensuring reliable performance in various applications.

• Hermetic scroll design for reduced moving parts
• Ideal for HVACR applications
• Compatible with chlorine-free refrigerants

Product Highlights

This compressor offers axial and radial compliance for effective liquid handling, making it a suitable choice in different configurations.

Product Information

Standard Information

• Brand: International Comfort Products
• Manufacturer Part Number: ZP51LXE-PFV-800

Technical Specifications

• Compressor Type: Scroll
• Refrigerant: R-410A
• Voltage: 208-230 VAC
• Phase: Single
• BTU Output: 51000
• Height: 16.94 inches
• Width: 9.56 inches
• Length: 9.56 inches
• Weight: 75.8 pounds
• Suction Line Size (OD): 7/8 inches
• Discharge Connection Size (OD): 1/2 inches
• Displacement: 2.9 in³/Rev
• Oil Type: Polyolester (POE)
• Oil Charge Initial: 42 ounces
• Cycle/Hertz: 50/60 Hz
• Locked Rotor Amps (LRA): 144.2
• Rated Load Amps (RLA): 24.4
• Evaporating Temperature: 45°F (7.22°C), 50°F
• Return Gas Temperature: 65°F (18.33°C)
• Condensing Temperature: 130°F (54.44°C)
• Liquid Temperature: 115°F (46.11°C)
• Sound Level (dBA): 68-73
• Mounting Dimensions: 7.50 x 7.50 x 17.17 inches
• Discharge Connection Type: Stub
• Suction Line Fitting Type: Stub
• Approvals: UL Recognized
