COPELAND Copeland ZP49K6E-PFV-830 Scroll Compressor 49,000 BTU (EA) ICPZP49K6EPFV830
COPELAND Copeland ZP49K6E-PFV-830 Scroll Compressor 49,000 BTU (EA) ICPZP49K6EPFV830

Copeland ZP49K6E-PFV-830 Scroll Compressor 49,000 BTU (EA) ICPZP49K6EPFV830

COPELAND
Brand: COPELAND
SKU: ZP49K6E-PFV-830
Availability: In Stock

Ships via freight in 1-3 business days
$1,385.81
$1,385.81
LTL Delivery

This product weighs 74 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

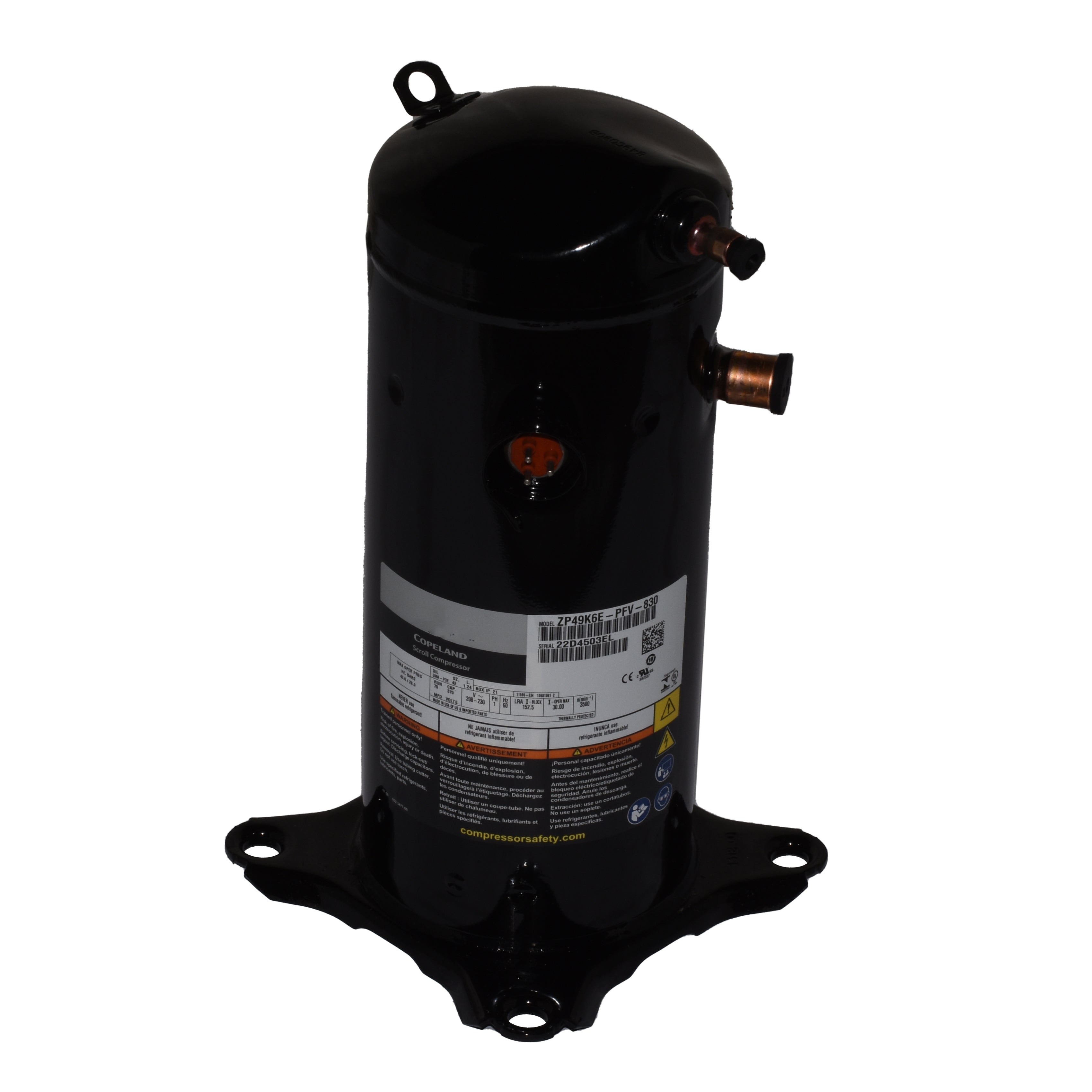

The Copeland ZP49K6E-PFV-830 is a hermetic scroll compressor rated at approximately 49,000 BTU for R-410A air conditioning applications. It operates on single-phase 208-230 VAC at 60 Hz and uses Polyolester (POE) oil with a 42 oz initial charge. The unit features internal inherent protection, a displacement of 2.77 in3/rev, and typical sound levels of 68 to 73 dBA for residential HVAC replacement or OEM applications.

  • Improved full-load and part-load efficiencies for modulated operation
  • Precise temperature and humidity control capability to ±0.5°F
  • Polyolester (POE) oil with proven oil return and internal inherent protection

Product Highlights

49,000 BTU hermetic scroll compressor for R-410A, 208-230 VAC single-phase operation; 42 oz initial POE oil charge; UL listed.

Product Information

Standard Information

  • Brand: COPELAND
  • Manufacturer Part Number: ZP49K6E-PFV-830
  • Country of Origin: USA
Technical Specifications
Manufacturer Part Number
ZP49K6E-PFV-830
Replacement Part Number
ICPZP49K6EPFV830
Brand
Copeland
Capacity (BTU)
49,000
Compressor Type
Scroll
Compressor Housing
Hermetic
Refrigerant
R-410A
Oil Type
Polyolester (POE)
Oil Charge Initial (oz)
42
Voltage
208-230 VAC
Phase
Single
Frequency
60 Hz
Rated Load Amps (RLA)
23.7
Locked Rotor Amps (LRA)
152.5
Displacement
2.77 in^3/Rev
Mass Flow (lbs/hr)
812; 722
Suction Line Size (OD)
7/8"
Discharge Connection Size (OD)
1/2"
Discharge Connection Type
Stub
Suction Line Fitting Type
Stub
Sound Level (dBA)
68-73
Dimensions (H x L x W)
16.94 x 9.56 x 9.56 in
Mounting Dimensions
7.5 x 7.5 x 17.17 in
Weight (lbs)
74.8
Unit Cubic Measurement
0.8879
Protection
Internal inherent protection
UL Listed
Yes
Country of Origin
USA
EAN
0822529650869
UPC
822529650869
GTIN
00822529650869
