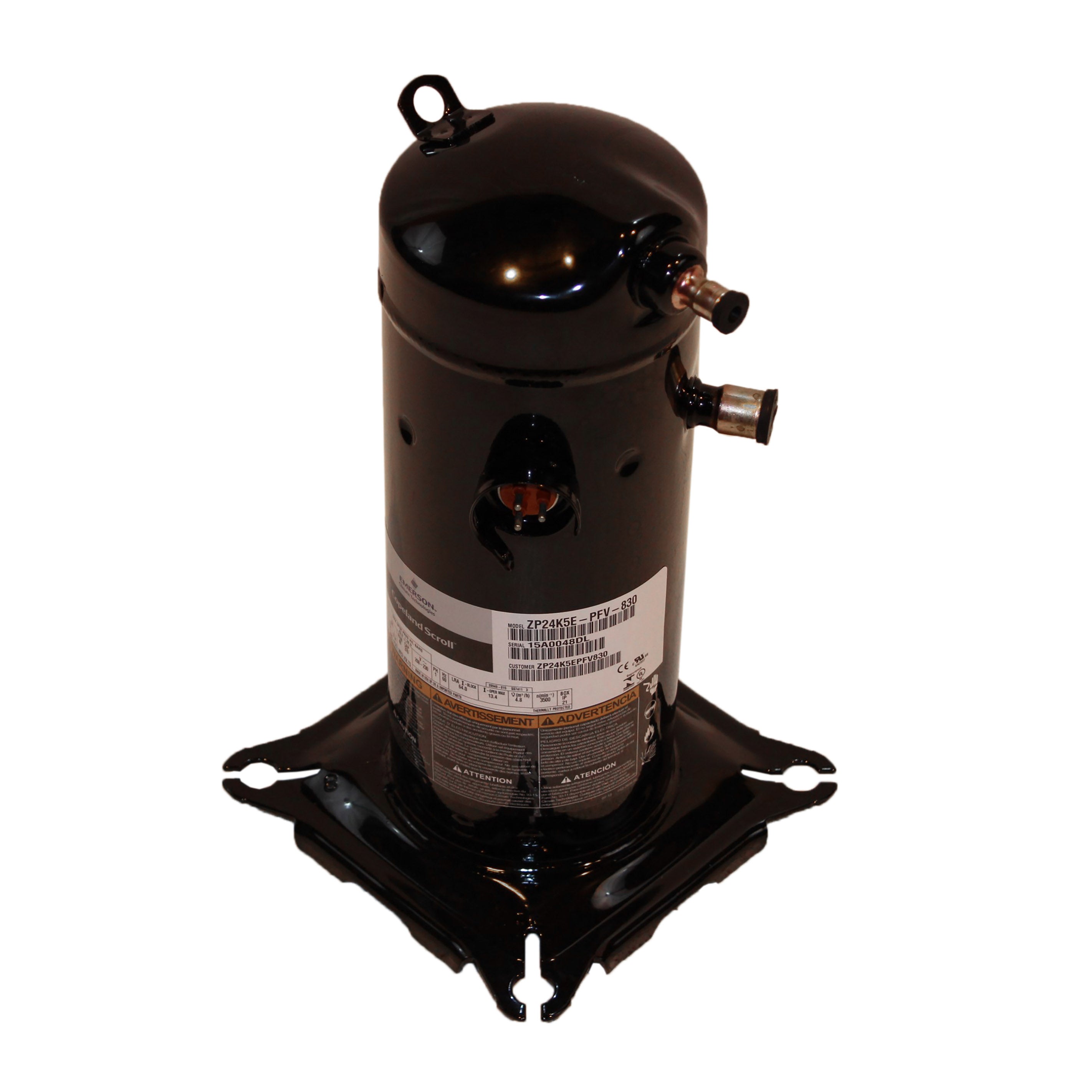

Copeland ZP24K5EPFV830 Scroll Compressor 24000 BTUH (2 Ton) Replacement 27W16

COPELAND
Brand: COPELAND
SKU: ZP24K5EPFV830
Availability: In Stock

Ships via freight in 1-3 business days
$906.42
$906.42
LTL Delivery

This product weighs 57 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Copeland ZP24K5EPFV830 is a Copeland ZP series scroll compressor rated at 24,000 Btu/hr (2 ton) for R-410A systems. It operates single-phase at 208/230 V, 60 Hz, draws about 10.6 A and delivers roughly 2400 W (2 hp). The unit uses polyester (POE) oil, features 3/4 in suction and 1/2 in discharge connections, and has mounting dimensions of 7.5 in x 7.5 in.

  • Refrigerant: R-410A; oil type: polyester (POE).
  • Electrical: 208–230 V AC, 60 Hz, single-phase; RLA ~10.6 A; LRA 64 A; ~2400 W (2 hp).
  • Physical: 3/4 in suction, 1/2 in discharge; unit dimensions ~9.56 x 9.56 x 15.27 in; mounting 7.5 x 7.5 in.

Product Highlights

24,000 Btu/hr scroll compressor for R-410A systems; POE oil; single-phase 208/230 V operation with 3/4 in suction and 1/2 in discharge.

Product Information

Standard Information

  • Brand: COPELAND
  • Manufacturer Part Number: ZP24K5EPFV830
Technical Specifications
Brand
Copeland
Manufacturer
Emerson Electric Co.
MPN
ZP24K5EPFV830
Series
ZP
Product Type
Scroll compressor
Capacity
24,000 Btu/hr (2 ton)
Power
2400 W (approx. 2 hp)
Input Voltage
208-230 V AC
Frequency
60 Hz
Phase
Single-phase
Input Current (RLA)
10.6 A
Locked Rotor Amps (LRA)
64 A
Refrigerant
R-410A
Oil Type
Polyester (POE)
Suction Line Size
3/4 in (stub)
Discharge Line Size
1/2 in (stub)
Volumetric Flow
2.82 cu-ft/min (approx.)
Mass Flow / Capacity Rate
353 - 403 lb/hr (approx.)
Speed
Approximately 3500 rpm
Noise Level
66 - 71 dBA
Mounting Dimensions
7.5 in x 7.5 in
Unit Dimensions
9.56 in L x 9.56 in W x 15.27 in H
Motor Type
Permanent split capacitor (PSC)
Motor Protection
Internal inherent protection
Oil Charge
Initial 25 oz; recharge 21 oz
Mounting Arrangement
A
Application
Air conditioning / heat pump
