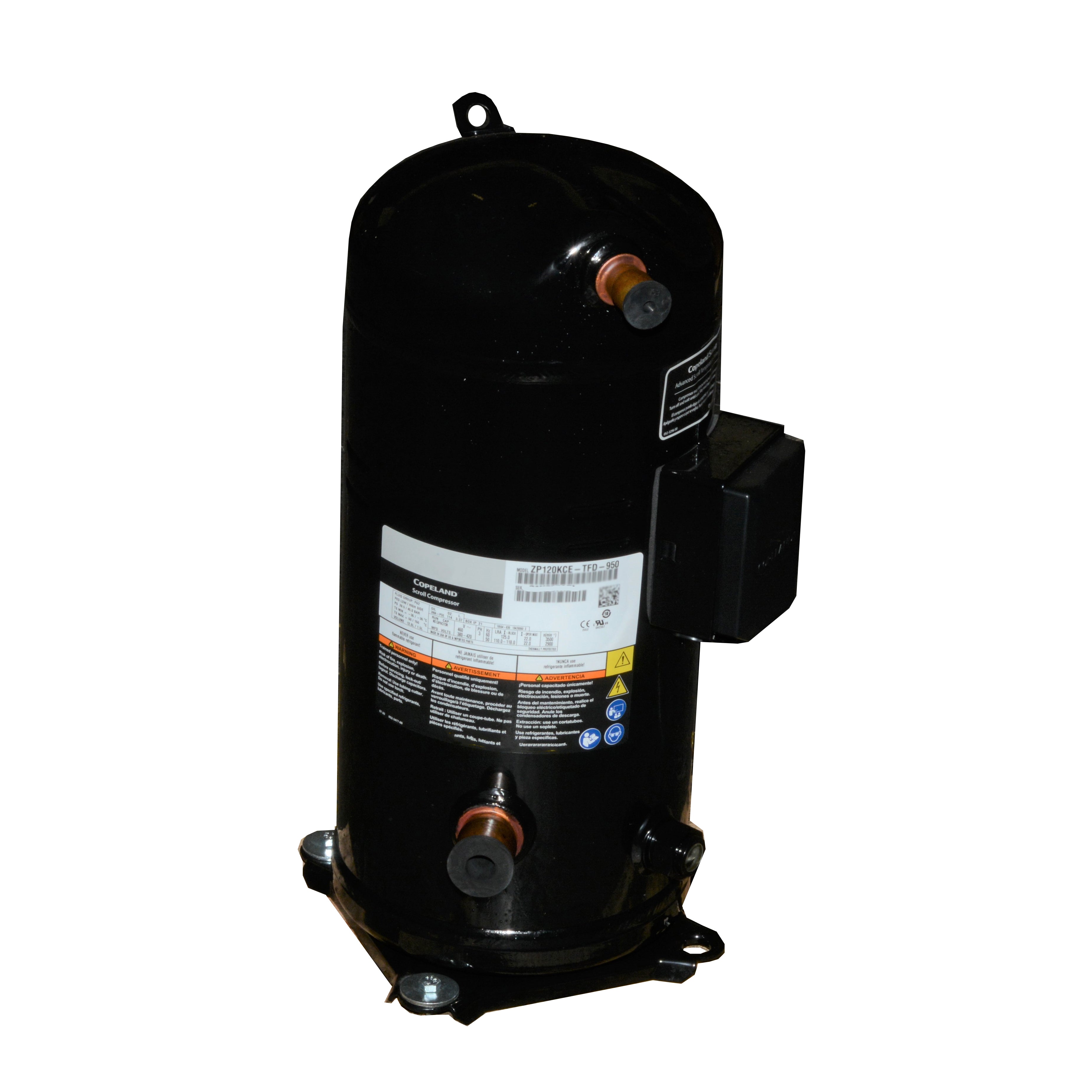

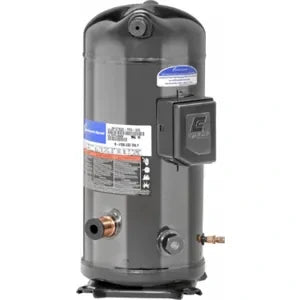

Copeland ZP120KCE-TFD-950 Scroll Compressor 460/3/60 (10 Ton) 38M83

COPELAND
Brand: COPELAND
SKU: ZP120KCE-TFD-950
Availability: In Stock

Ships via freight in 1-3 business days
$3,446.41
$3,446.41
LTL Delivery

This product weighs 135 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Copeland ZP120KCE-TFD-950 is an aftermarket hermetic scroll compressor rated for 460 V, three-phase, 60 Hz operation and designed for R-410A HVACR systems. It delivers approximately 123,000 BTU capacity with a polyol ester (POE) oil charge and internal inherent protection. The compressor features reduced moving parts, compact hermetic housing, improved sound and vibration characteristics, and axial and radial compliance for enhanced liquid handling.

  • Approx. 123,000 BTU capacity; rated for 460 V, three-phase, 60 Hz; compatible with R-410A
  • Electrical: rated load amps (RLA) 20 A; locked rotor amps (LRA) 125 A; operating range 14.9–16.4 A
  • POE oil initial charge 110 oz; suction line 1-3/8 in OD; discharge connection stub; mounting footprint 7.50 x 7.50 x 21.75 in

Product Highlights

Hermetic scroll design for HVACR, POE oil, internal inherent protection, approx. 123,000 BTU (10 ton) capacity

Product Information

Standard Information

  • Brand: COPELAND
  • Manufacturer Part Number: ZP120KCE-TFD-950
Technical Specifications
Brand
Copeland
Manufacturer Part Number
ZP120KCE-TFD-950
Model
ZP120KCE-TFD-950
Compressor Type
Scroll
Compressor Housing
Hermetic
Application
Air conditioning / Heat pump / HVACR
Refrigerant
R-410A
Oil Type
POE (Polyolester)
Input Voltage
460 V AC (three-phase); listed range 380-420/460 VAC
Phase
Three
Frequency
50/60 Hz
BTU Capacity
123000 BTU/hr
Tonnage
10 Ton (nominal)
Rated Load Amps (RLA)
20 A
Operating Amps
14.9-16.4 A
Locked Rotor Amps (LRA)
125 A
Sound Level
79-84 dBA
Protection
Internal inherent protection; ASTP (advanced scroll temperature protection)
UL Listed
Yes
Mounting Dimensions
7.50 x 7.50 x 21.75 in
Mounting Footprint
7.5 in x 7.5 in
Dimensions (L x W x H)
10.38 in x 11.23 in x 21 in
Weight (net)
135 lb
Suction Line Size (OD)
1-3/8 in
Suction Line Fitting Type
Stub
Discharge Connection
Stub; 7/8 in ODF
Electrical Connection
Terminal block
Initial Oil Charge
110 oz
Oil Recharge
106 oz
Mass Flow
1525 lbs/hr; 1815 lbs/hr
Flow Rate
1815-1875 lb/hr
Displacement
6.93 cu-in/rev (842.19 cu-ft/hr)
Speed
3500 rpm
Power Rating
Approximately 10 hp / 11,100 W
Energy Efficiency Ratio (EER)
Approx. 11.0-11.1
Recommended Evaporating Temperature
45 F (7.22 C)
Recommended Return Gas Temperature
65 F (18.33 C)
Recommended Condensing Temperature Range
100-130 F
Technology
Scroll
Type
Hermetic
Ratings
ASRAE ARI
Prop 65
Yes
OPT Code
K05183
Discharge Line Height
19.73 in
Shell Height
21 in
Internal Free Volume
809 cu-in
