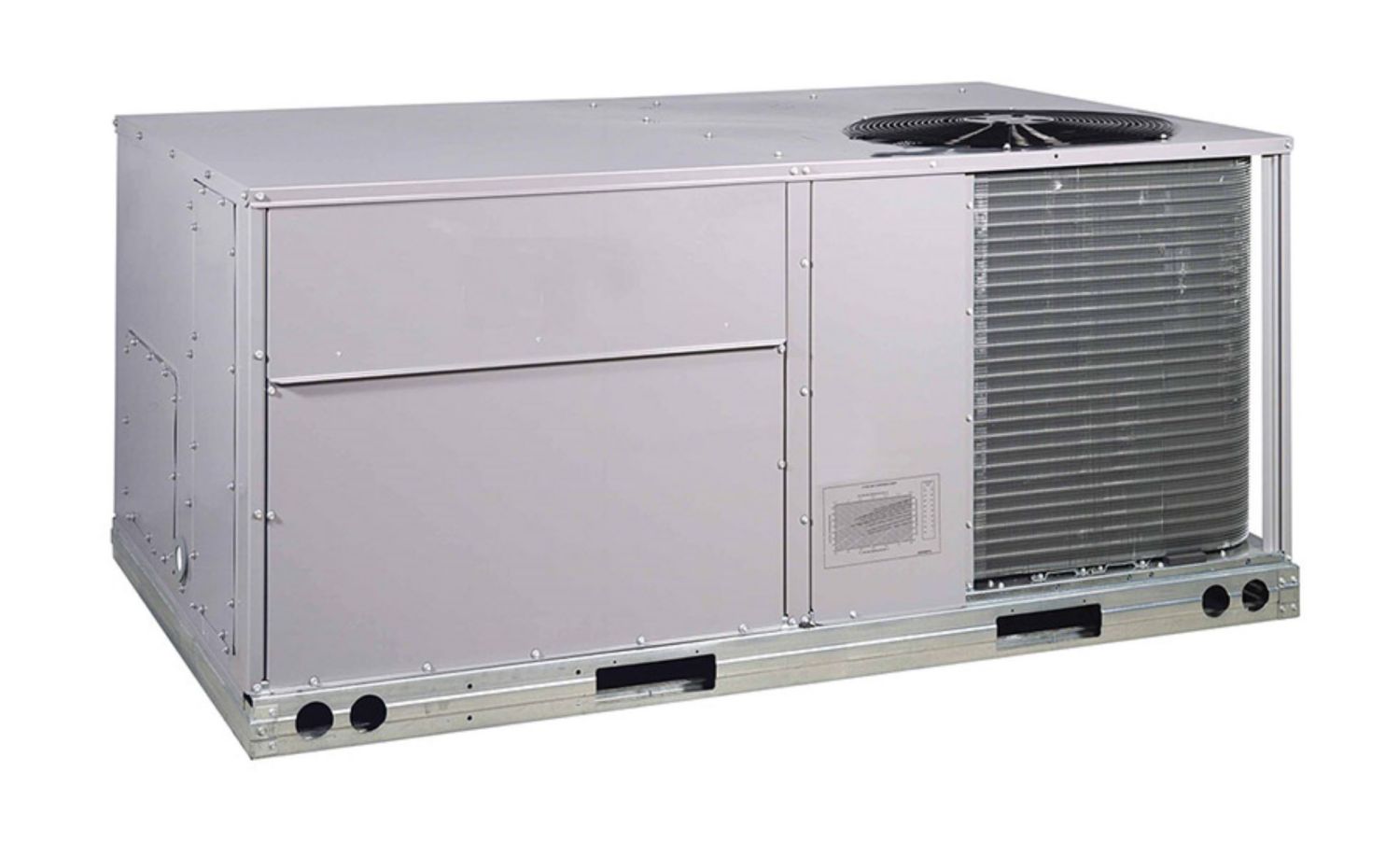

International Comfort Products RGF060KE2A0AAA Packaged Gas Heat/Electric Cooling Rooftop System 5 Ton (Medium Heat) IRGF060KE2A0AAA

Product Description

International Comfort Products RGF060KE2A0AAA is a 5 ton packaged gas/electric rooftop system that combines integrated gas heat and electric cooling for rooftop, slab, or ground-mount installations. The unit uses R-454B refrigerant with TXV refrigeration control, is rated at 13.4 SEER2 and 81% AFUE, and operates on 208/230 V single-phase power. The design includes a scroll compressor and convertible airflow features; it is A2L compatible and CEC compliant for California.

• Cooling: 5 ton nominal capacity, 60,000 Btu/h, 13.4 SEER2; factory charged for R-454B refrigerant and TXV control
• Heating: integrated gas heat with 81% AFUE and 90,000 Btu input
• Electrical and controls: 208/230 V single-phase power, scroll compressor, convertible airflow, A2L compatible (requires certification)

Product Highlights

5 ton gas/electric rooftop packaged unit; 13.4 SEER2 (11.4 EER2); R-454B refrigerant; TXV control; 81% AFUE; 208/230 V single-phase; A2L compatible; CEC compliant for California.

Product Information

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: RGF060KE2A0AAA

Technical Specifications

• Brand: International Comfort Products
• Manufacturer Part Number: RGF060KE2A0AAA
• Replacement Part Number: IRGF060KE2A0AAA
• Model Codes: MH, MS
• Type: Gas/Electric packaged rooftop unit
• Tonnage: 5 Ton
• Cooling Capacity: 60,000 Btu/h
• SEER2: 13.4
• SEER2 Range: 13.4 - 13.7
• EER2: 11.4
• AFUE: 81%
• Heating Input: 90,000 Btu
• Refrigerant: R-454B
• Refrigeration Control Type: TXV
• Compressor Type: Scroll
• Airflow: 1500 CFM
• Airflow Direction: Convertible
• Input Voltage: 208/230 V
• Phase: Single
• A2L Compatible: Yes
• Requires Certification: Yes
• CEC Compliant: For sale in California
• Certifications: UL Listed
• Feature: X-Vane
