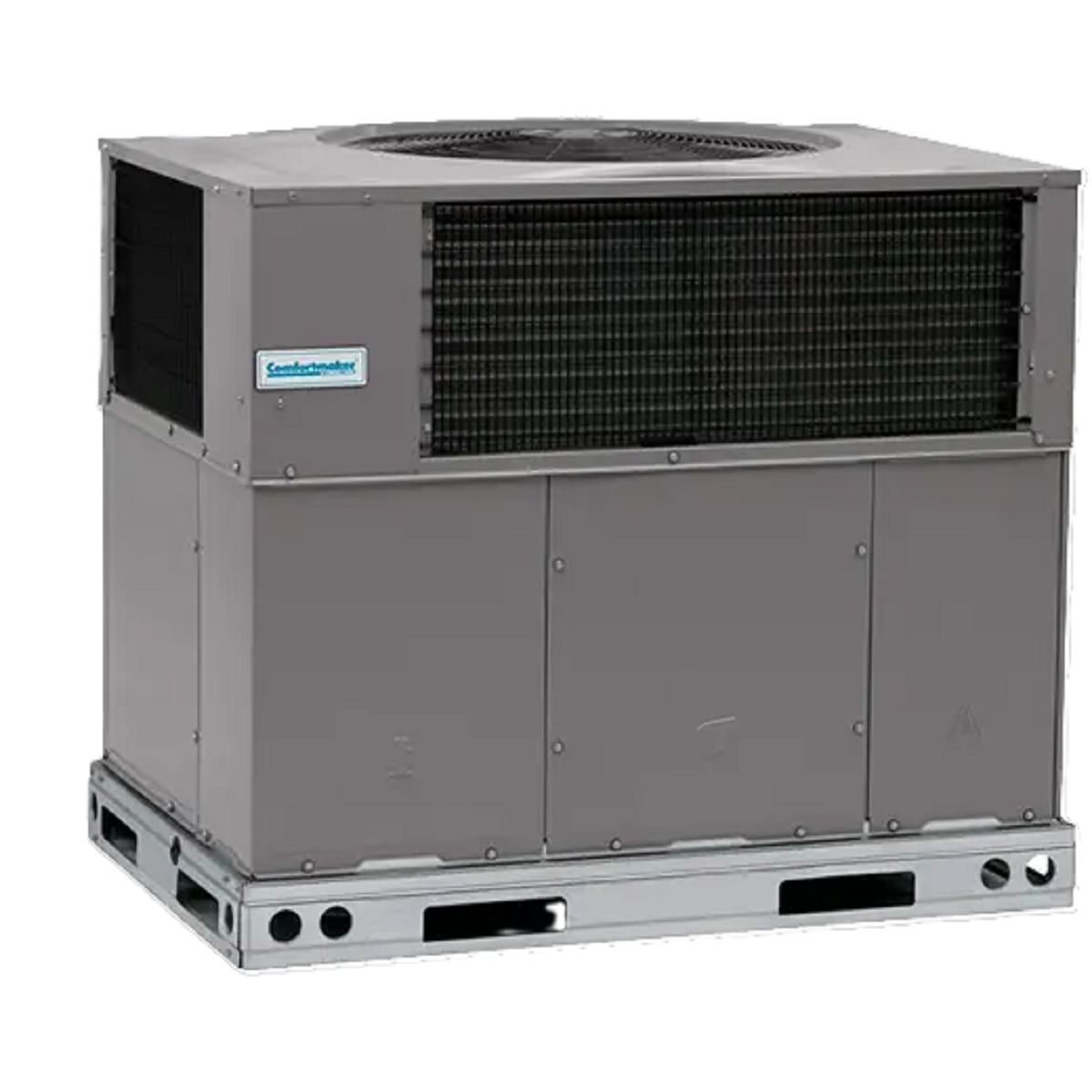

International Comfort Products PHB442000K000B 3.5 Ton 13.4 SEER2 single packaged heat pump system 208/230 V single-phase

Product Description

International Comfort Products PHB442000K000B is a 3.5 ton packaged heat pump rated 13.4 SEER2 and configured for R-454B refrigerant; it is supplied without factory-installed supplemental heat and requires 208/230 V single-phase electrical service. The unit is factory charged and tested for single‑point power and duct connection, features a scroll compressor with convertible airflow and nominal 1350 CFM, and is A2L compatible for licensed contractors. Typical applications include rooftop, slab, or ground-mount residential installations.

• Nominal capacity 3.5 ton; rated 13.4 SEER2 (11.05 EER2).
• Uses R‑454B refrigerant (A2L compatible); supplied without factory heat and requires appropriate certification for purchase and servicing.
• Factory charged and tested; scroll compressor, convertible airflow, nominal 1350 CFM; 208/230 V single‑phase, 60 Hz.
• Designed for residential rooftop, slab, or ground‑mount installations.

Product Highlights

3.5 ton packaged heat pump, 13.4 SEER2, R-454B refrigerant (A2L), factory charged and tested, convertible airflow, 208/230 V single-phase.

Product Information

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: PHB442000K000B

Technical Specifications

• Brand: International Comfort Products
• Manufacturer Part Number: PHB442000K000B
• Nominal Capacity (Tons): 3.5 Ton
• SEER2: 13.4
• EER2: 11.05
• Product Type: Single packaged heat pump system
• Factory Heat: No
• Refrigerant: R-454B (A2L)
• Input Voltage: 208/230 V
• Phase: Single-phase
• Frequency: 60 Hz
• Airflow (CFM): 1350 CFM (nominal)
• Compressor Type: Scroll
• Airflow Direction: Convertible
• A2L Compatible: Yes
• Requires Certification: Yes (for handling R-454B/A2L refrigerant)
• Factory Charge / Shipping Condition: Factory charged and tested; configured for single-point power and duct connection
• Intended Application: Residential rooftop, slab, or ground-mount installations
• ENERGY STAR: No
