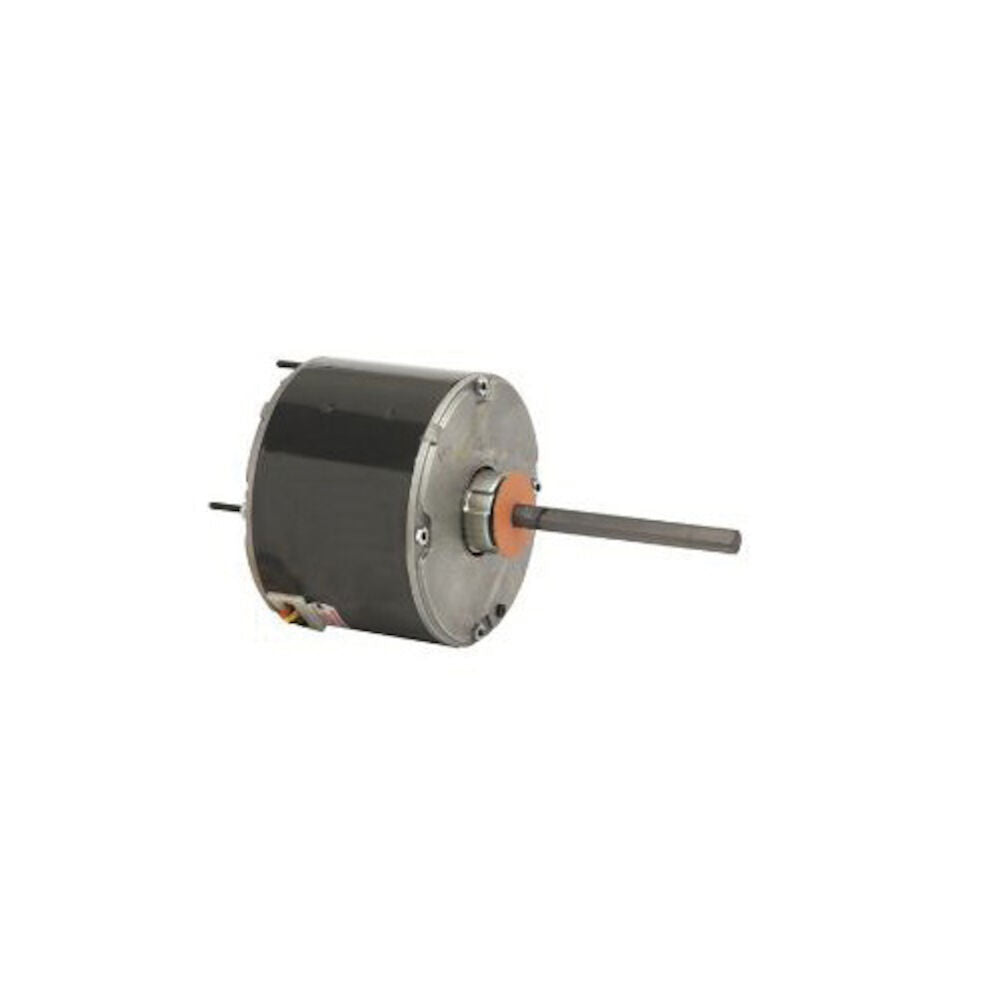

International Comfort Products P257-8730 mtr cf 1/2hp 208-230v1075/1

Product Description

The INTERNATIONAL COMFORT PRODUCTS P257-8730 is a genuine OEM replacement part, MTR CF 1/2HP 208-230V1075/1. This product is branded as Comfortmaker or Tempstar. Parts are generic across all ICP brands and Carrier Corporation products. It is designed as an outdoor condenser fan motor with vertical shaft up or shaft down.

• Weep hole in each end shield
• Rheem mounting holes w/screws installed
• Water slinger on shaft

Product Highlights

The P257-8730 condenser fan motor is suitable for various applications. It features double full flatted shaft and is thermally protected.

Product Information

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: P257-8730

Technical Specifications

• Manufacturer: Carrier HVAC
• Manufacturer #: P257-8730
• Parts Town #: CRRP257-8730
• Motor HP: 1/2 HP
• Speed: 1075 rpm
• Voltage Rating: 208 / 230 V
• Motor Type: PSC
• Enclosure: TEAO
• Voltage: 208-230
• Speeds: 1
• Hz: 60
• Rotation: REV
• RPM Range: 1075
• NEMA Frame Size: 48
• Phase: Single
• Standards: CUL
• FLA: 3.5
• Mount: All Angle
• Bearing: Ball
• Shaft Length Inches: 6.5
• Shaft Dia Inches: 1/2
• Thermal Protection: Auto
• Ambient Deg C: 60
• Ins. Class: Class B
• Capacitor Included: No
• Capacitor Rating: 10/370
