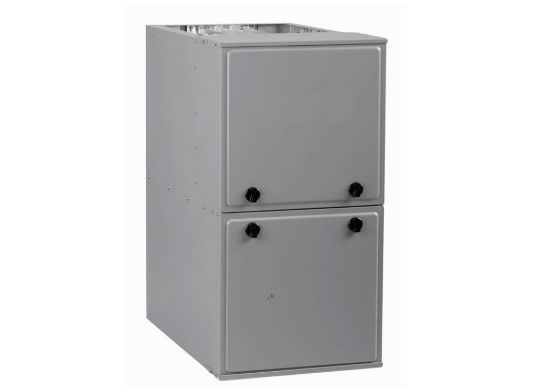

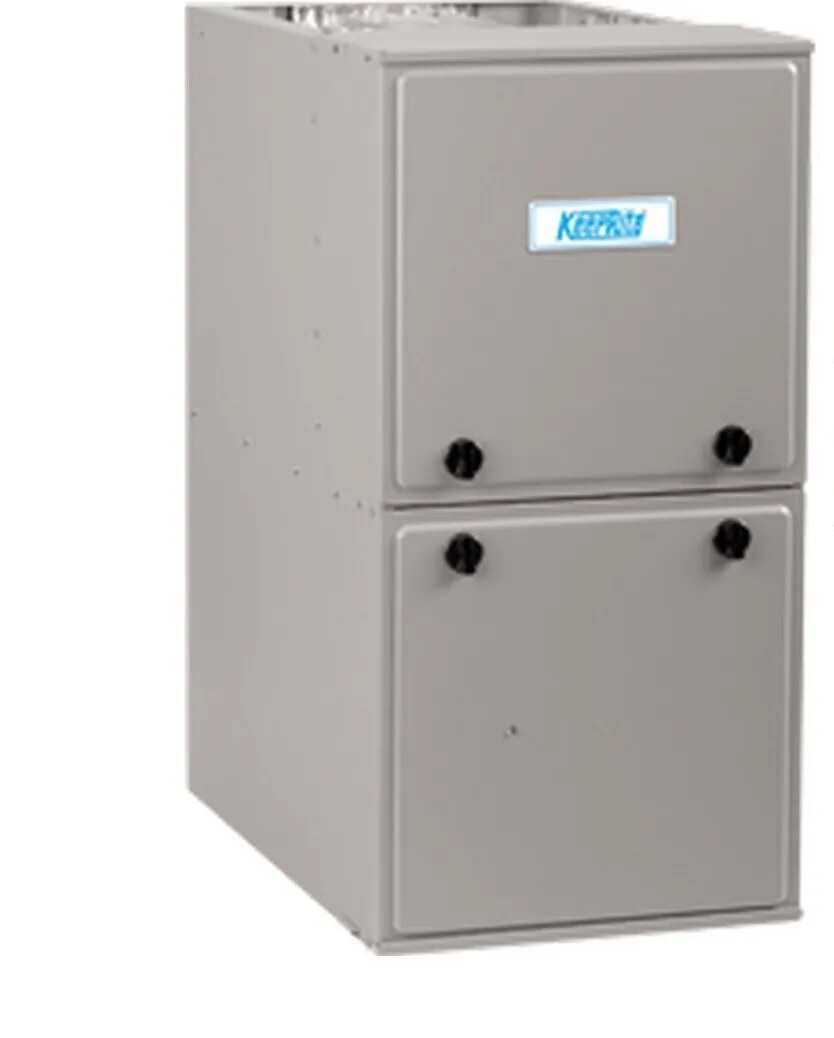

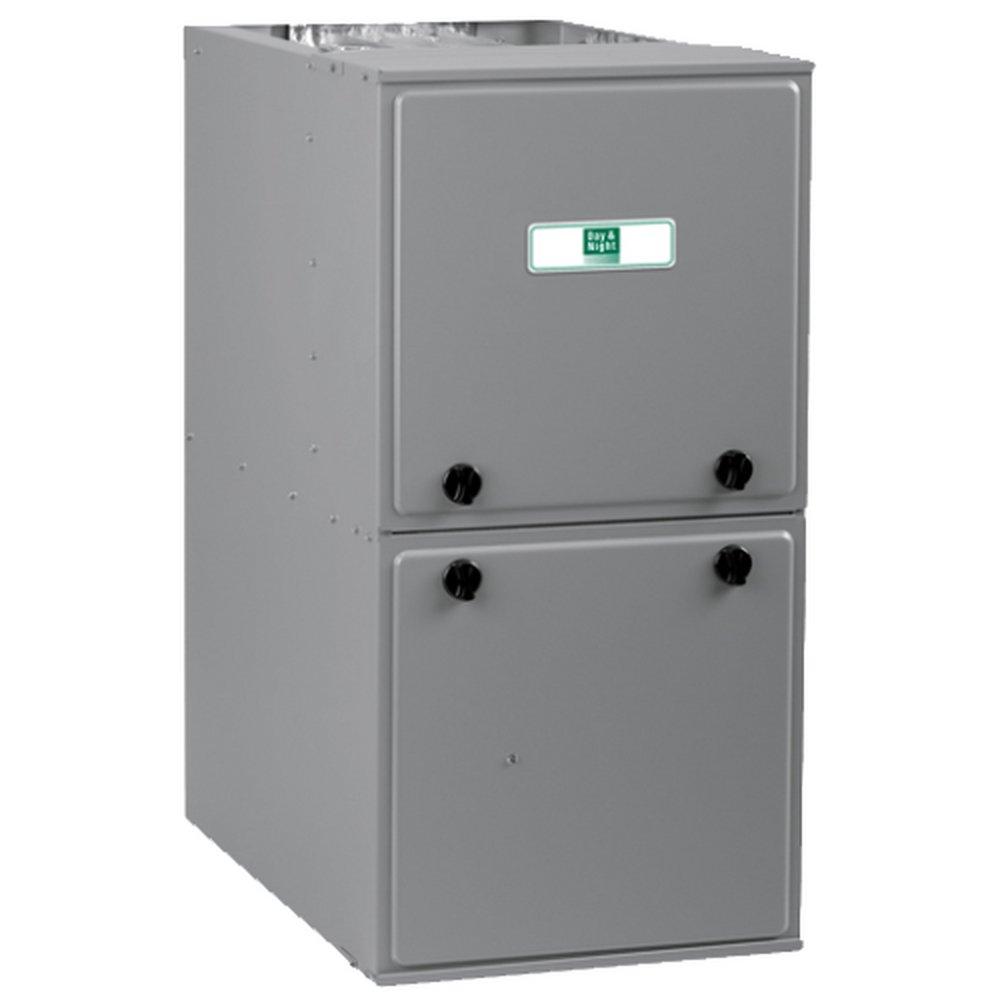

International Comfort Products N96MSN0401712A 96% Direct Vent 2-Pipe Gas Heating Furnace 40000 btu/hr 35 inches H x 17-1/2 inches W x 29-1/2 inches D

Product Description

The INTERNATIONAL COMFORT PRODUCTS N96MSN0401712A is a 96% Direct Vent 2-Pipe Gas Heating Furnace designed for efficient heating. It features an AFUE of up to 97% in upflow/horizontal configurations and up to 95% in downflow. This furnace includes a Multi 18-speed, constant torque (MCT) ECM blower motor and enhanced diagnostics with an easy-to-read 3-digit display for faults and status. It supports single-stage cooling units and has an insulated heat exchanger compartment. The unit is approved for installation in air quality management districts with a 40 ng/J NOx emissions requirement.

• Enhanced diagnostics with easy to read 3 digit display for faults and status
• Supports single-stage cooling units
• Insulated heat exchanger compartment

Product Highlights

This gas heating furnace offers high AFUE efficiency, advanced diagnostics, and a multi-speed ECM blower for consistent performance in various installations.

Product Information

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: N96MSN0401712A

Technical Specifications

• AFUE: Up to 97% (upflow/horizontal), up to 95% (downflow)
• Blower Motor: Multi 18-speed, constant torque (MCT) ECM
• Cabinet Air Leakage: Less than 2.0% at 1.0 in. w.c. and less than 1.4% at 0.5 in. w.c. (ASHRAE 193 compliant)
• NOx Emissions Requirement: 40 ng/J
• Fuel Type: Natural Gas, Propane
• Installation Configuration: Downflow, Horizontal Left, Horizontal Right, Upflow
• BTU Heat Output: 40000
• BTU Input: 40000
• Heating Stages: Single-Stage
• Input Voltage: 115V
• Phase: Single
• Frequency: 60Hz
• Diagnostics: Enhanced with 3 digit display
• Cooling Compatibility: Single-stage
• Heat Exchanger Compartment: Insulated
• Primary Heat Exchanger: RPJ
• Secondary Heat Exchanger: Stainless Steel
• Ignition Type: Direct ignition with Silicon Nitride
• Cabinet Material: High-quality, corrosion-resistant, one-piece steel
• Venting Configurations: Twelve
• Installation Positions: Four (upflow/downflow/horizontal left/right)
• Airflow (CFM): 1075
• A2L Compatible: Contingent
• Amperage: 10.2, 6.7, 7.4
• Certifications: ANSI Z223.1
• Communicating: Non-Communicating
• Condensing: Yes
• Energy Star Compliant: Yes
• Blower Motor Horsepower: 1/2 hp
• Max Fuse Size: 15
• Number of Burners: 3
• Power Source: Electric, Gas
• Refrigerant Compatibility: R-410A, R-454B
• Operating Temperature Range: 40 to 70 Deg F (22 to 39 Deg C)
• Cooling Tonnage Compatibility: 3.5 Ton
• Vent Type: Direct Vent
