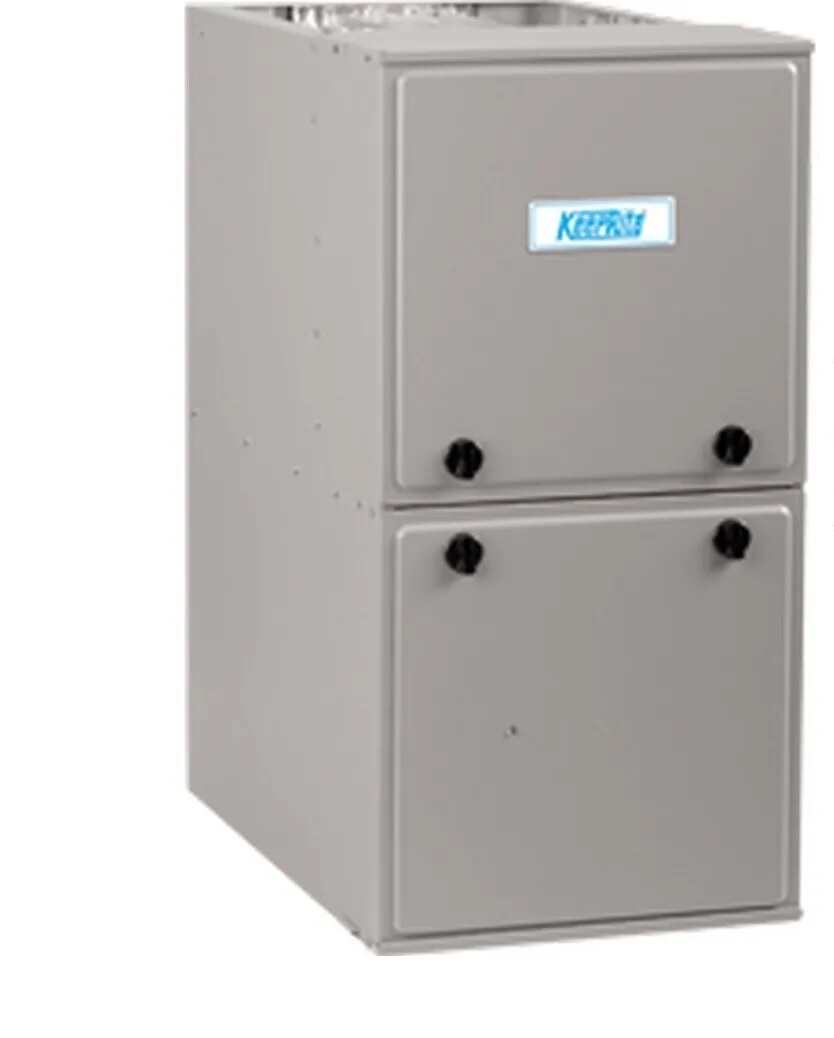

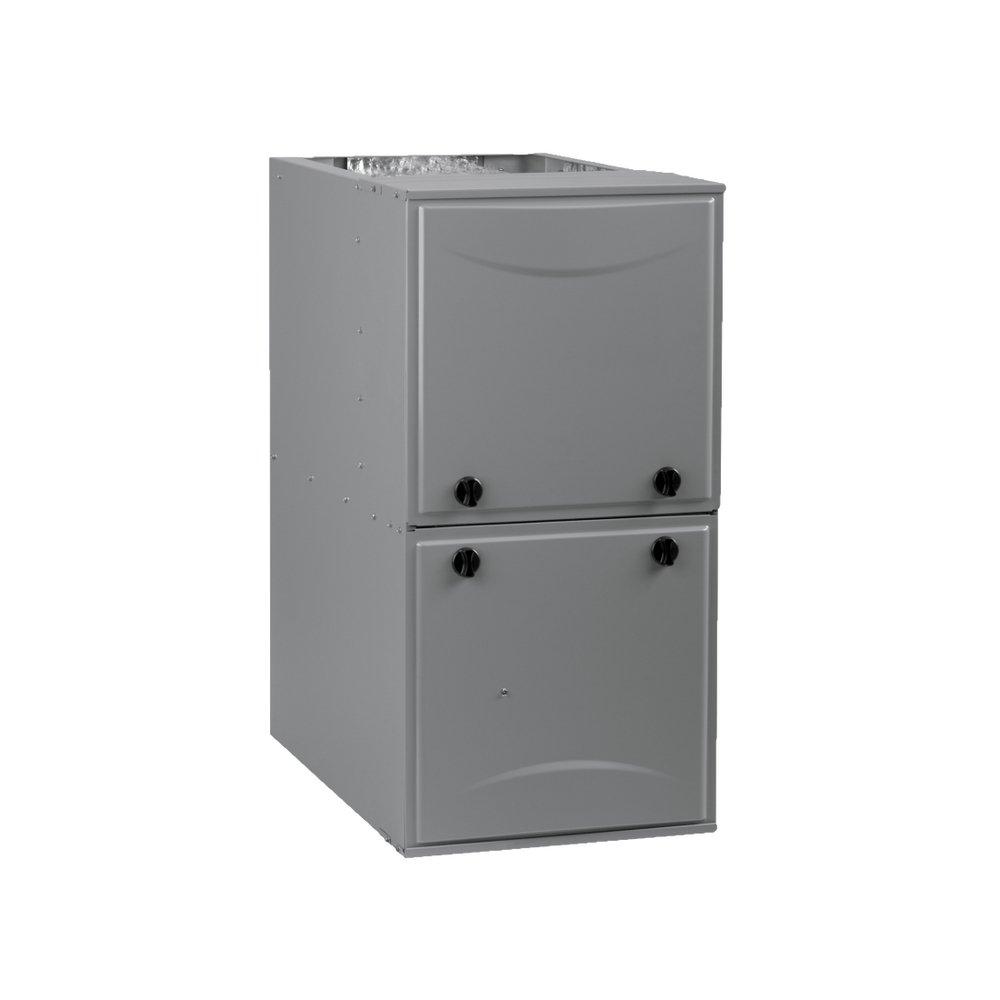

International Comfort Products N92MSN0801716A Up To 92% Multi 18 Speed Gas Heating Furnace 80000 BTU 35 inches H x 17-1/2 inches W x 29-1/2 inches D

Product Description

The INTERNATIONAL COMFORT PRODUCTS N92MSN0801716A is a high-efficiency gas heating furnace featuring a multi 18-speed, constant torque (MCT) ECM blower motor for consistent airflow. It offers enhanced diagnostics with an easy-to-read 3-digit display for status and fault codes. This single-stage gas furnace achieves up to 92.1% AFUE in various installation positions, including upflow, horizontal, and downflow, making it suitable for diverse residential heating applications, including manufactured housing. Its design ensures low cabinet air leakage.

• Multi 18-speed, constant torque (MCT) ECM blower motor
• Enhanced diagnostics with easy to read 3 digit display for faults and status
• Up to 92.1% AFUE in upflow, horizontal and downflow positions

Product Highlights

Approved for manufactured housing applications and suitable for installation in air quality management districts with 40 ng/J NOx emissions requirements.

Product Information

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: N92MSN0801716A

Technical Specifications

• AFUE: Up to 92.1%
• Blower Motor Type: Multi 18-speed, constant torque (MCT) ECM
• Gas Valve Type: Single-stage
• Cabinet Air Leakage: Less than 2.0% at 1.0 in. w.c. and less than 1.4% at 0.5 in. w.c. (ASHRAE standard 193)
• NOx Emissions Requirement: 40 ng/J
• Heating Capacity: 80000 BTU
• Voltage: 120V
• Configuration: Multipoise
• Communicating Capability: No
• CFM: 1600
• A2L Compatible: Contingent
• Amperage: 14.7 A
• ANSI Standard: ANSI Z223.1
• Collection: Performance Series
• Condensing: Yes
• Energy Star Compliant: Yes
• Fuel Type: Natural Gas, Propane
• Heat Exchanger Type: Stainless Steel
• Horsepower: 3/4 hp
• Ignition System: Silicon Nitride Direct Ignition
• Input MBH: 80 MBH
• Max Fuse Size: 15 A
• Number of Burners: 4
• Phase: Single Phase
• Power Source: Gas
• Refrigerant: R-410A, R-454B
• Temperature Range: 40 to 70 Deg F
