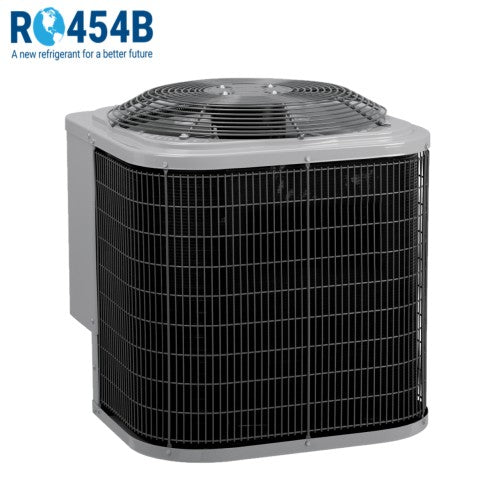

International Comfort Products N5A5S36AKAWA N5A5S 1-Stage Air Conditioner 3 ton Nominal 208/230 VAC 60 Hz 1 ph

Product Description

The INTERNATIONAL COMFORT PRODUCTS N5A5S36AKAWA is a 1-Stage Air Conditioner designed for outdoor mounting. This 3 ton nominal unit operates on 208/230 VAC 60 Hz 1 ph power, delivering 36000 Btu/hr cooling capacity with a flow rate of 3800 cfm. It utilizes R-454B refrigerant and features a scroll compressor, suitable for various HVAC cooling applications.

• Indoor air quality accessories are available for enhanced system performance.
• System supports both programmable and standard thermostat controls for user flexibility.
• Features non-ozone depleting, low global warming potential R-454B refrigerant.

Product Highlights

Durable galvanized steel construction with a dense wire coil guard ensures longevity and protection for this outdoor unit.

Product Information

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: N5A5S36AKAWA
• Country of Origin: USA

Technical Specifications

• Control Type: Thermostat
• Cooling Capacity: 36000 Btu/hr
• Domestic/Import: Domestic
• Flow Rate: 3800 cfm
• Fuse Size: 30 A
• Material: Galvanized Steel
• Motor Horsepower: 1/10 hp
• Motor RPM: 825 rpm
• Motor Type: Ball Bearing
• Mounting Type: Outdoor
• Nominal Capacity: 3 ton
• Power Source: 208/230 VAC 60 Hz 1 ph
• Refrigerant Type: R-454B
• Series: N5A5S
• Sound Level: 72 dBA
• Compressor Stages: 1-Stage
• A2L Compatible: Yes
• AMP: 0.7
• Compressor Type: Scroll
• ETL Listed: No
• Energy Star Compliant: No
• Energy Star Most Efficient: Yes
• Lock Rotor Amps (LRA): 75
• Rated Load Amps (RLA): 13.5
• Refrigeration Control Type: TXV
• SEER2: 16.5
• SEER2 Range: 15.2 - 40.0
• Suction Line (OD): 7/8
• UL Listed: No
