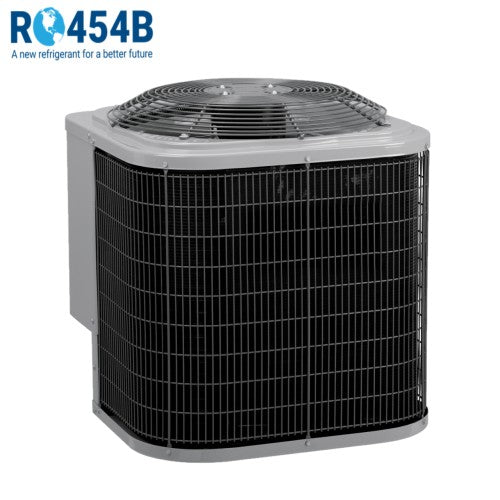

International Comfort Products N5A4S60AKANA 1 stage split system air conditioner w/ R454B, performance series 5T 208/230 V 60,000 BTU/hr

Product Description

The International Comfort Products N5A4S60AKANA is a 1-stage split system air conditioner designed for efficient cooling. This 5-ton unit delivers a cooling capacity of 60,000 BTU/hr and operates on 208/230 V. It features a single-stage compressor and utilizes R-454B refrigerant, offering a 14 SEER2 rating for energy performance. Constructed from galvanized steel, it is built for durability and quiet operation, with a sound level of 74 dBA.

• Quiet performance with a sound level of 74 dBA.
• Features single-stage compressor operation for consistent cooling.
• Durable galvanized steel construction designed to withstand weather and debris.

Product Highlights

This 5-ton split system air conditioner provides 60,000 BTU/hr cooling, 14 SEER2 efficiency, and uses R-454B refrigerant for effective climate control.

Product Information

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: N5A4S60AKANA
• Country of Origin: Import

Technical Specifications

• Cooling Capacity: 60,000 BTU/hr
• Origin: Import
• SEER2 Rating: 14
• Sound Level: 74 dBA
• Air Flow Type: Vertical
• Coil Guard Type: Grill
• Condenser Motor Type: Propeller, Direct Drive
• Drive Type: PSC
• EER2 Rating: 9.8
• Fan Diameter: 24 in
• Finish: Powder Coat
• Fins per Inch: 20
• Air Flow Rate: 4000 CFM
• Frequency: 60 Hz
• Liquid Line Line Size: 3/8 in
• Material: Galvanized Steel
• Maximum Piping Length: 250 ft
• Motor Horsepower: 1/4 HP
• Motor RPM: 1,100
• Nominal Capacity: 5 Ton
• Number of Fan Blades: 2
• Number of Stages: 1
• Outdoor Coil Rows: 2
• Phase: 1
• Region: Standard AC
• Series: Performance
• Suction Line Size: 7/8 in
• Maximum Operating Temperature: 125 °F
• Type: Standard
• Voltage Rating: 208/230 V
