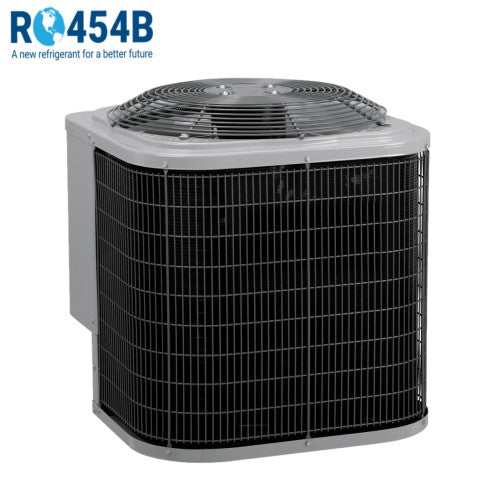

International Comfort Products N5A4S48AKANA 1 stage split system air conditioner w/ R454B, performance series 4 ton 48,000 BTU/hr

Product Description

The International Comfort Products N5A4S48AKANA is a 1-stage split system air conditioner designed for efficient cooling. This 4-ton unit provides 48,000 BTU/hr cooling capacity with a 14 SEER2 rating, utilizing non-ozone depleting R-454B refrigerant. Constructed from galvanized steel, it offers durable performance for residential or commercial applications, operating at 208/230 V.

• Quiet performance, operating as low as 72 decibels.
• Features single-stage compressor operation for consistent cooling.
• Durably built with galvanized steel to withstand adverse weather and debris.

Product Highlights

Efficient 4-ton split system air conditioner with R-454B refrigerant, 14 SEER2 rating, and durable galvanized steel construction.

Product Information

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: N5A4S48AKANA

Technical Specifications

• Cooling Capacity: 48,000 Btu/hr
• SEER2 Rating: 14
• Sound Level: 77 dBA
• Air Flow Type: Vertical
• Coil Guard Type: Grill
• Condenser Motor Type: Propeller, Direct Drive
• Drive Type: PSC
• EER2 Rating: 9.8
• Fan Diameter: 24 in
• Finish: Powder Coat
• Fins per Inch: 20
• Flow Rate: 3000 cfm
• Frequency: 60 Hz
• Liquid Line Size: 3/8 in
• Material: Galvanized Steel
• Maximum Piping Length: 250 ft
• Motor HP: 1/5 HP
• Motor RPM: 1,100
• Nominal Capacity: 4 ton
• Number of Fan Blade: 2
• Number of Stages: 1
• Outdoor Number of Rows: 2
• Phase: 1
• Suction Line Size: 7/8 in
• Temperature Rating: 125 deg F
• Input Voltage: 208 / 230 V
