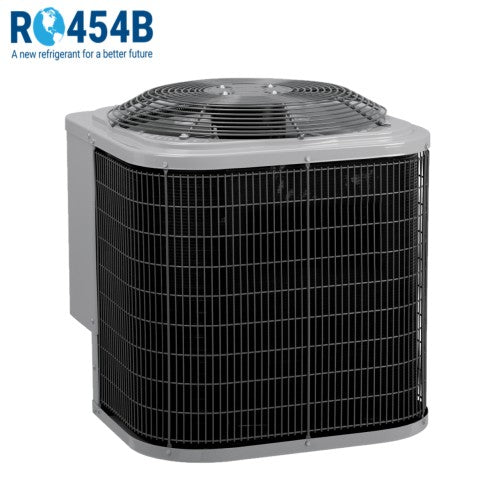

International Comfort Products N5A4S30AKANA 1 Stage Split System Air Conditioner w/ R454B Performance Series 2.5T 208/230 V 30,000 BTU/hr

Product Description

The INTERNATIONAL COMFORT PRODUCTS N5A4S30AKANA is a 1-stage split system air conditioner designed for cooling comfort. This unit features a single-stage compressor and utilizes non-ozone depleting, low global warming potential R-454B refrigerant, providing a cooling capacity of 30,000 BTU/hr with a 14 SEER2 rating. Operating at 208/230 V and 60 Hz, it has a sound level of 72 dBA and a nominal capacity of 2.5 tons. Constructed from galvanized steel, it measures 31 in W x 32-1/16 in H x 31 in D and weighs 145 lb.

• Quiet performance with a sound level as low as 72 dBA.
• Features a single-stage compressor for consistent operation.
• Constructed from galvanized steel for durability and corrosion resistance.

Product Highlights

This Performance Series air conditioner offers reliable cooling with a single-stage compressor, R-454B refrigerant, and durable galvanized steel construction.

Product Information

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: N5A4S30AKANA
• Country of Origin: Domestic

Technical Specifications

• Cooling Capacity: 30,000 Btu/hr
• SEER2 Rating: 14
• Sound Level: 72 dBA
• Air Flow Type: Vertical
• Coil Guard Type: Grill
• Condenser Motor Type: Propeller, Direct Drive
• Drive Type: PSC
• EER2 Rating: 9.8
• Fan Diameter: 24 in
• Finish: Powder Coat
• Fins per Inch: 25
• Flow Rate: 2700 cfm
• Frequency: 60 Hz
• Liquid Line Size: 3/8 in
• Manufacturer Part Number: N5A4S30AKANA
• Material: Galvanized Steel
• Maximum Piping Length: 250 ft
• Motor HP: 1/10 HP
• Motor RPM: 825
• Nominal Capacity: 2.5 ton
• Number of Fan Blade: 2
• Number of Stages: 1
• Outdoor Number of Rows: 1
• Phase: 1
• Region: Standard AC
• Series: Performance
• Suction Line Size: 3/4 in
• Temperature Rating: 125 deg F
• Type: Standard
• Voltage Rating: 208 / 230 V
• Refrigerant Type: R-454B
