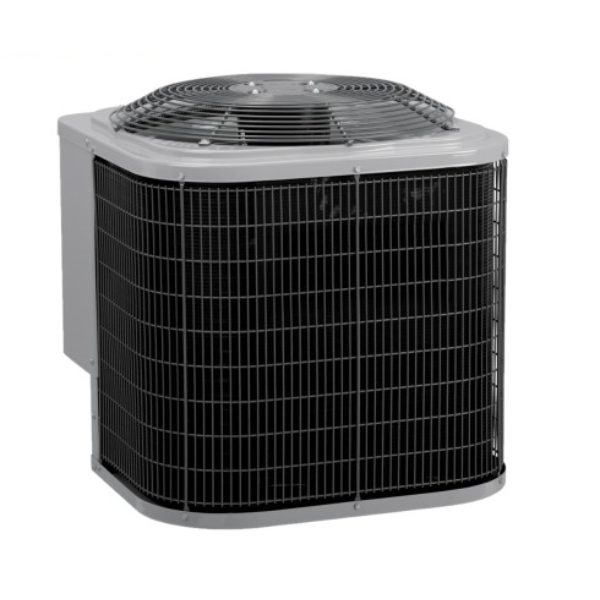

International Comfort Products N5A4S24AKANA 1 stage split system air conditioner R454B performance series 2 ton 208/230 V 24,000 BTU/hr

Product Description

The International Comfort Products N5A4S24AKANA is a 1 Stage Split System Air Conditioner designed for cooling applications. This Performance Series unit utilizes R-454B refrigerant, offering a 2 ton nominal capacity and 24,000 BTU/hr cooling capacity. It operates on 208/230 V, 1 phase power, and features a 14 SEER2 rating for energy efficiency. Constructed from powder-coated galvanized steel, it is suitable for domestic use.

• Quiet performance, operating as low as 72 decibels.
• Single-stage compressor operation with a single-speed fan motor.
• Durable powder-coated galvanized steel construction designed for corrosion resistance.

Product Highlights

This 2 ton split system air conditioner provides efficient cooling with R-454B refrigerant and a 14 SEER2 rating.

Product Information

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: N5A4S24AKANA
• Country of Origin: Domestic

Technical Specifications

• Cooling Capacity: 24000 BTU/hr
• Domestic/Import: Domestic
• SEER2 Rating: 14
• Sound Level: 74 dBA
• Air Flow Type: Vertical
• Coil Guard Type: Grill
• Condenser Motor Type: Propeller, Direct Drive
• Drive Type: PSC
• EER2 Rating: 9.8
• Fan Diameter: 20 in
• Finish: Powder Coat
• Fins per Inch: 25
• Air Flow Rate: 2100 cfm
• Frequency: 60 Hz
• Liquid Line Size: 3/8 in
• Material: Galvanized Steel
• Maximum Piping Length: 250 ft
• Motor Horsepower: 0.1 HP
• Motor RPM: 1100
• Nominal Capacity: 2 ton
• Number of Fan Blades: 2
• Number of Stages: 1
• Outdoor Coil Rows: 1
• Phase: 1
• Region: Standard AC
• Series: Performance
• Suction Line Size: 3/4 in
• Maximum Operating Temperature: 125 deg F
• Type: Standard
• Voltage Rating: 208/230 V
