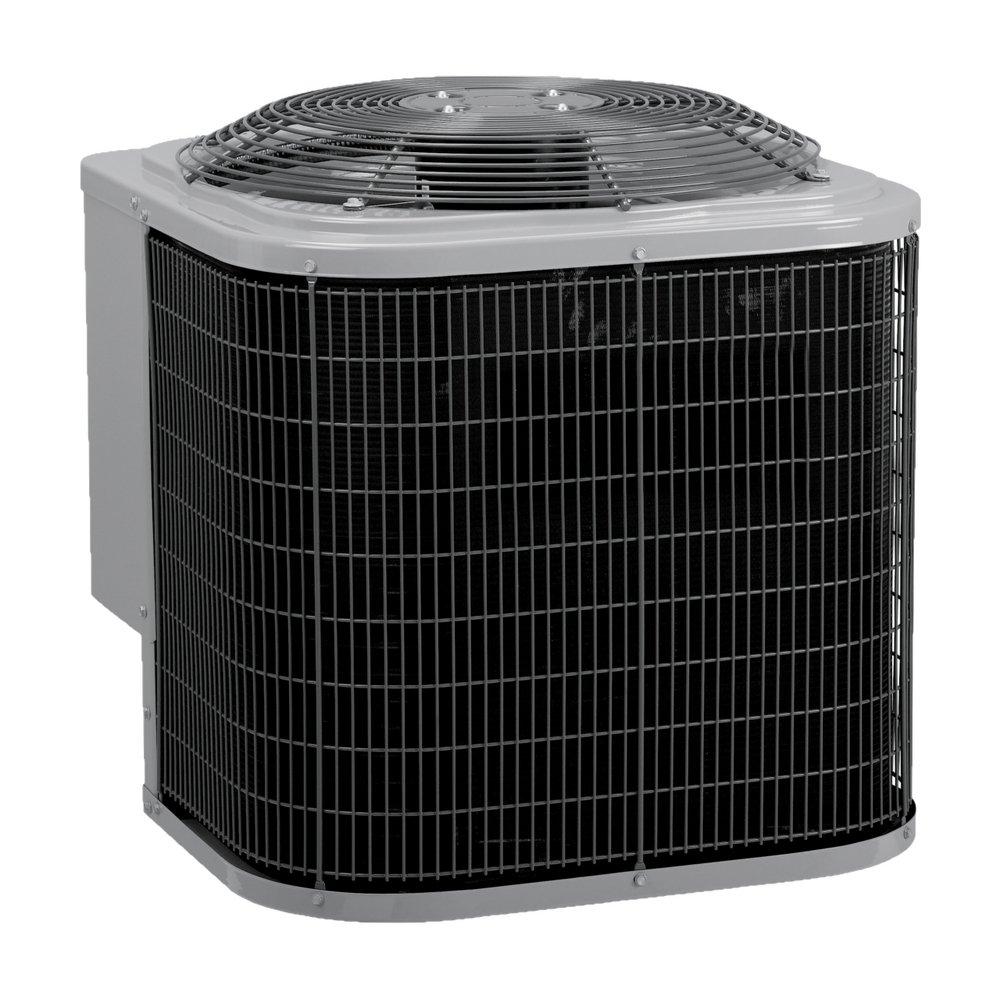

International Comfort Products N4H7T60AKAAA Heat Pump Condensing Performance Series 5 Ton

Product Description

The INTERNATIONAL COMFORT PRODUCTS N4H7T60AKAAA is a heat pump with efficiency up to 17.0 SEER2 / 13.0 EER2 / 8.1 HSPF2. It features R-410A refrigerant, which is environmentally sound with a low lifetime service cost. The system supports Thermidistat or standard 2-stage thermostat controls and has a sound level as low as 70dBA.

• Efficiency Up to 17.0 SEER2 (18.5 SEER) / Up to 13.0 EER2 (14 EER) / Up to 8.1 HSPF2 (9.5 HSPF)
• Indoor air quality accessories available
• Sound level as low as 70dBA

Product Highlights

This heat pump offers efficient and reliable performance with environmentally friendly refrigerant and quiet operation.

Product Information

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: N4H7T60AKAAA

Technical Specifications

• MfgNum: N4H7T60AKAAA
• Main Category: HVAC
• Category: HVAC Equipment
• SubCat: Heat Pumps
• SubSubCat: Residential
• ItemNum: N4H7T60AKAAA
• Vendor Name: International Comfort Products
• Brand Name: International Comfort Products
• Cooling BTU: 60000
• Heating BTU: 60000
• Voltage: 208/230
• Phase: 1
• Refrigerant: R410A
• SEER: 18.5
• A2L Compatible: No
• AMP: 35.1
• Application: Residential
• BTU: 60000
• BTU Cooling Rating: 56500 Btu/h
• CFM: 5000
• Coil Type: Aluminum Fin
• Collection: Performance Series
• Compressor Stages: Two Stage
• Compressor Type: Scroll
• Decibel Rating (dB): 74 dB
• Depth: 35
• EER: 14.0
• EER2: 13
• EER2 Range: 11.7 - 23.0
• Energy Star Compliant: Yes
• Factory Std. Refrigerant Charge: 247.2
• HSPF: 9.5
• HSPF2: 8.1
• HSPF2 Range: 7.5 - 25.0
• Height: 45-11/16
• Horsepower: 1/4 hp
• Liquid Line (OD): 3/8
• MBH: 60
• Max Fuse Size: 60
• Power Source: Electric
• Refrigeration Control Type: TXV
• SEER2: 17
• SEER2 Range: 15.2 - 40.0
• Suction Line (OD): 7/8
• Tonnage: 5 Ton
• UL Listed: Yes
• Volts: 208/230V
• Weight: 267
• Width: 35
