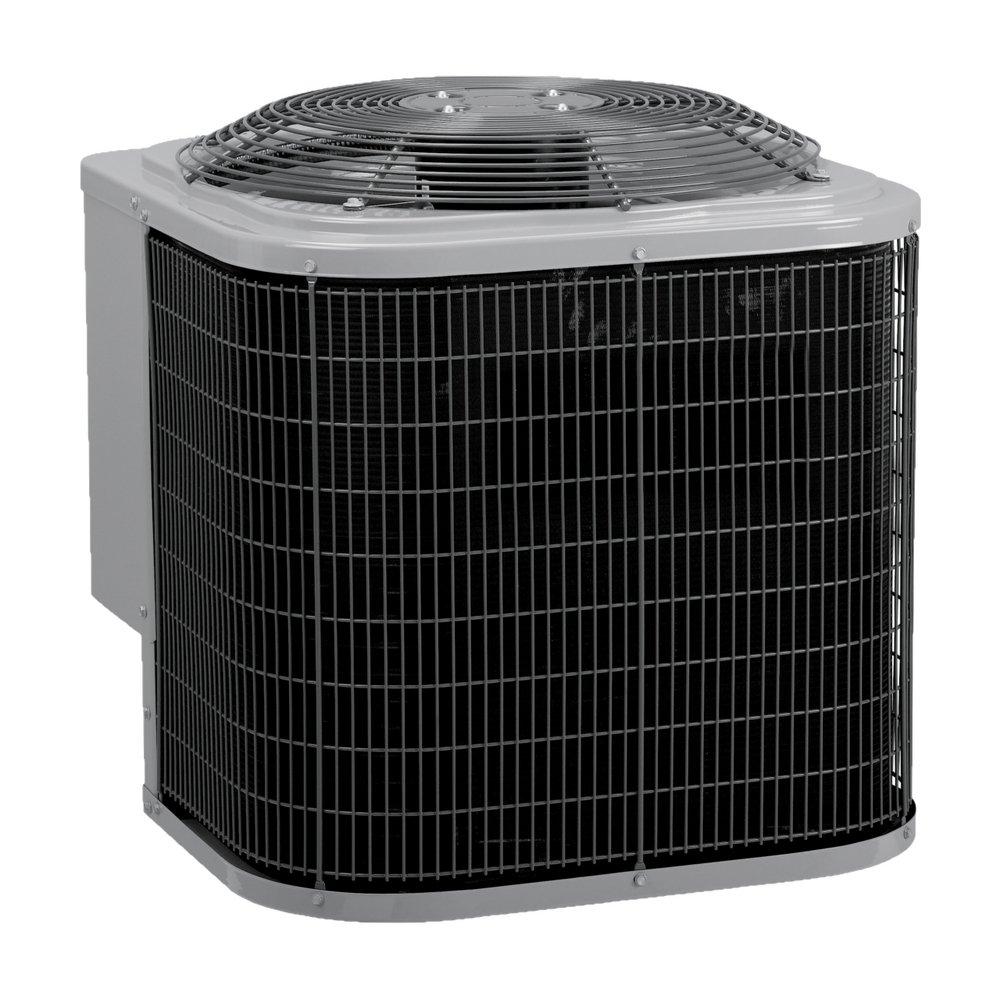

International Comfort Products N4H7T36AKAAA Heat Pump 3 Ton

Product Description

The International Comfort Products N4H7T36AKAAA is a heat pump with up to 17.0 SEER2 (18.5 SEER) and a sound level as low as 70dBA. It uses R-410A refrigerant and supports Thermidistat or standard 2-stage thermostat controls. The system features a 2-stage scroll compressor and a balanced refrigeration system for maximum reliability.

• Up to 17.0 SEER2 (18.5 SEER)
• Up to 13.0 EER2 (14 EER)
• Up to 8.1 HSPF2 (9.5 HSPF)
• Indoor air quality accessories available

Product Highlights

This heat pump offers efficient and reliable performance with features like a two-stage compressor and quiet operation.

Product Information

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: N4H7T36AKAAA

Technical Specifications

• MfgNum: N4H7T36AKAAA
• Brand Name: International Comfort Products
• Cooling BTU: 36000
• Heating BTU: 36000
• Voltage: 208/230V
• Phase: 1
• Refrigerant: R-410A
• SEER: 18.5
• A2L Compatible: No
• AMP: 25.2
• Application: Residential
• BTU: 36000
• BTU Cooling Rating: 35600 Btu/h
• CFM: 3158
• Coil Type: Aluminum Fin
• Collection: Performance Series
• Compressor Stages: Two Stage
• Compressor Type: Scroll
• Decibel Rating (dB): 74 dB
• Depth: 35"
• EER: 14.0
• EER2: 13
• EER2 Range: 11.7 - 23.0
• Energy Star Compliant: Yes
• Factory Std. Refrigerant Charge: 237.44
• HSPF: 9.5
• HSPF2: 8.1
• HSPF2 Range: 7.5 - 25.0
• Height: 38-7/8"
• Horsepower: 1/12 hp
• Liquid Line (OD): 3/8"
• MBH: 36
• Max CFM: 3158
• Max Fuse Size: 40
• Power Source: Electric
• Refrigeration Control Type: TXV
• SEER2: 17
• SEER2 Range: 15.2 - 40.0
• Suction Line (OD): 7/8"
• Tonnage: 3 Ton
• UL Listed: Yes
• Width: 35"
• Electrical: 208/230v 1 Phase 60 Hz
• Condenser Stages: Two Stage
• Max Breaker Size: 40 Amps
• Min. Breaker Size: 25.2 Amps
• Liquid Valve Size: 3/8"
• Suction Valve Size: 7/8"
