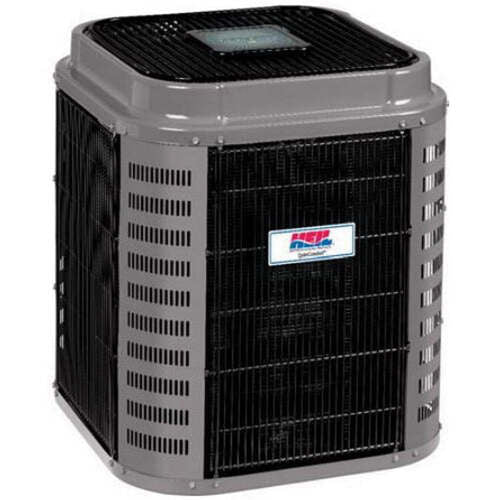

International Comfort Products HVH824GKA Heat Pump Condensing Unit High Efficiency 2 Ton

Product Description

The INTERNATIONAL COMFORT PRODUCTS HVH824GKA is a heat pump condensing unit with a variable speed compressor that operates at 5 stages with capacity range as wide as 25 - 100%. It features an electronic expansion valve (EXV) for precise heating control. Up to 13.0 EER and 11 HSPF. Compact ECM fan motor driven by integrated inverter control.

• Variable speed compressor operates at 5 stages with capacity range as wide as 25 - 100%
• Electronic expansion valve (EXV) for precise heating control
• High pressure switch

Product Highlights

The HVH824GKA heat pump offers efficient and precise heating and cooling with its variable speed compressor and electronic expansion valve.

Product Information

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: HVH824GKA

Technical Specifications

• Cooling BTU: 24000
• Heating BTU: 24,000
• Voltage: 208/230
• Phase: 1
• Refrigerant: R410A
• SEER: 18
• Maximum CFM: 2150
• Depth: 23"
• Width: 23"
• Height: 32"
• Fuel Type: Propane, Natural Gas
• Electrical: 208 / 230 V. 1 Phase 60 Hz
• Blower Motor: Variable Speed - ECM
• Brand/Manufacturer: ACiQ
• Burner Stages: Two
• Equivalent: Carrier Equivalent: 25VNA824B003 Tempstar Equivalent: TVH824GKA Bryant Equivalent: 288BNV024000
• Configuration: Multi-Positional
• Ignition Type: Direct Ignition with Silicon Nitride Hot Surface Ignitor
• Exhaust Flue Requirement: Metal
• Product Features: Variable Speed Condenser
• Liquid Line: 3/8"
• Style: A-Coil
• Suction Line: 3/4"
• Certification: UL Listed
• Tonnage: 2 Ton
• SEER1 (Efficiency): 18
• Energy Star: Yes
• Compressor Type: Scroll
• Condenser Stages: Variable Speed
• Max Breaker Size: 20 Amps
• Min. Breaker Size: 13.5 Amps
• Liquid Valve Size: 3/8"
• Suction Valve Size: 5/8"
