HEIL Heil HCA724GKA 17 SEER A/C condensing unit 2 ton (1PHCA724GKA)
HEIL Heil HCA724GKA 17 SEER A/C condensing unit 2 ton (1PHCA724GKA)

Heil HCA724GKA 17 SEER A/C condensing unit 2 ton (1PHCA724GKA)

Brand: HEIL
SKU: HCA724GKA
Availability: Out Of Stock
Final Sale / No Returns
$2,507.72
$2,507.72

This is a Final Sale item and cannot be returned or refunded. Exceptions apply for damaged or defective items.

LTL Delivery

This product weighs 252 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

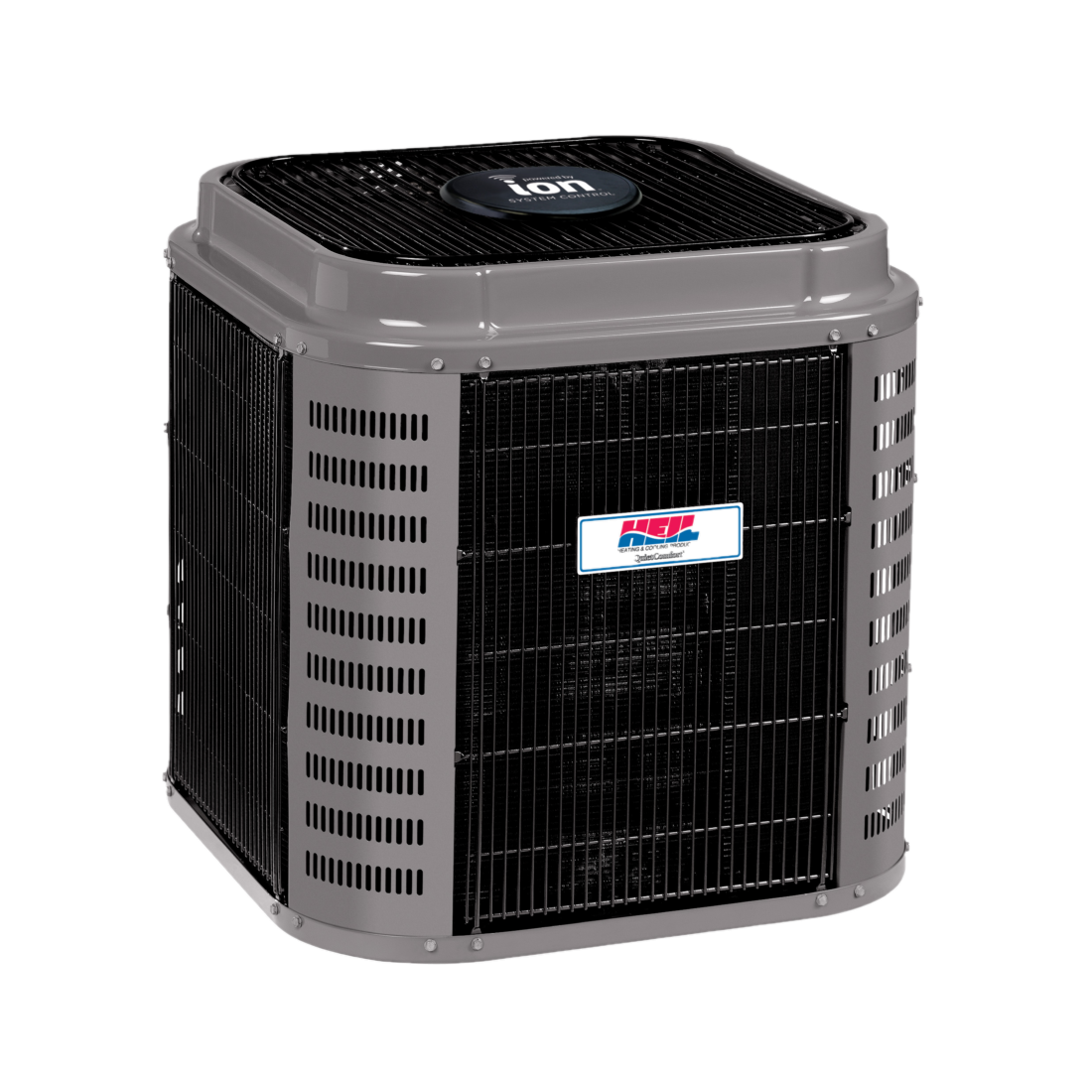

Heil HCA724GKA is a 17 SEER two-stage 2 ton A/C condensing unit designed for split systems, operating at 208-230 V, single-phase, 60 Hz and factory charged with R-410A. The unit uses Copeland Scroll Ultratech compressors, a ball-bearing PSC fan motor, and includes filter-drier, external high/low service ports, and text-based diagnostics via the Observer communicating control. Cooling capacity is 21,600 to 24,000 BTU/hr.

  • Two-stage Copeland Scroll Ultratech compressor with isolation grommets and sound shield
  • Factory-charged R-410A refrigerant, filter-drier included, and external high/low service ports
  • 208-230 VAC single-phase, 60 Hz operation with 17 SEER and 13 EER performance

Product Highlights

2 ton, 17 SEER condensing unit; Copeland Scroll compressor; factory-charged R-410A; Observer communicating control

Product Information

Standard Information

  • Brand: HEIL
  • Manufacturer Part Number: HCA724GKA
Technical Specifications
Brand
Heil
Manufacturer Part Number
HCA724GKA
OPT Code
1PHCA724GKA
Product Family
HCA7
Tonnage
2
SEER
17
EER
13
Cooling Capacity (BTU/hr)
21600-24000
Input Voltage
208-230 VAC
Phase
Single
Frequency
60 Hz
Stage
Two
Compressor Type
Copeland Scroll Ultratech
Refrigerant
R-410A
Condenser Motor RPM
800
Condenser Motor Type
PSC (Permanent Split Capacitor)
Condenser Motor Speeds
Variable
Fins per Inch (FPI)
25
Liquid Line Size (OD)
3/8"
Maximum Piping Length
80'
Rated Load Amps (RLA)
10.3
Locked Rotor Amps (LRA)
52
Maximum Overcurrent Protection (MOCP)
20
Liquid Line Fitting Type
Sweat or Braze
Suction Line Fitting Type
Sweat or Braze
Weight (product, lbs)
252
Dimensions (L x W x H, inches)
35.5 x 32.5 x 43
Sound Level (dBA)
72
CBU - Compressor Bearing Unit
Yes
UL Listed
Yes
Energy Star Rated
Yes
UOM
EA
