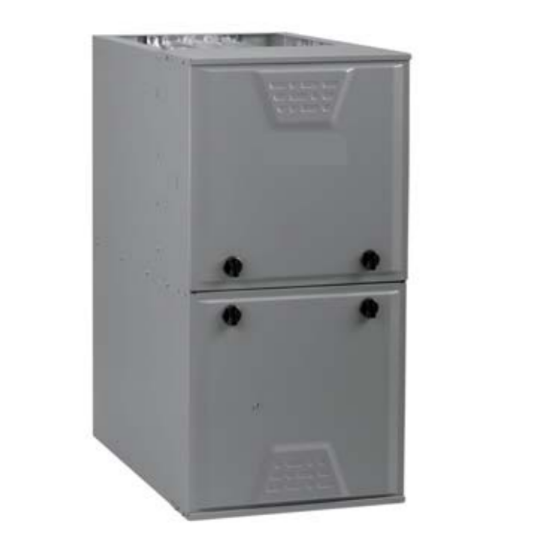

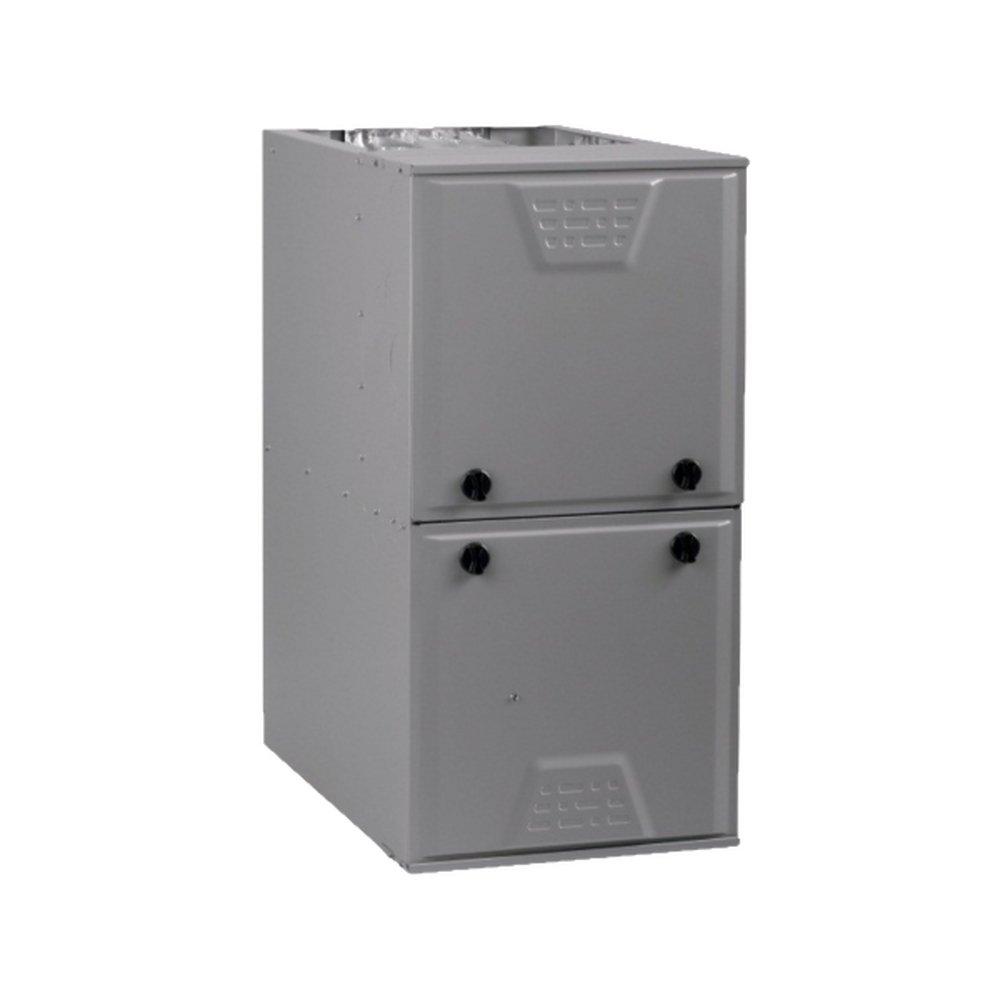

International Comfort Products G97CMN1202422B Modulating Communicating Gas Heating Furnace 120MBTUH 24.5 inchesW

Product Description

The International Comfort Products G97CMN1202422B Gas Furnace features a 97% AFUE efficiency rating and a 120,000 BTU/H input. This modulating, communicating unit incorporates variable-speed ECM technology for optimal performance and consistent airflow. It includes a stainless steel secondary heat exchanger and direct ignition with a Silicon Nitride ignitor, designed for quiet operation at lower heating rates.

• Flame roll-out sensors standard for safety.
• Variable speed, constant airflow, communicating ECM blower motor.
• RPJ® primary heat exchanger and stainless steel secondary heat exchanger.

Product Highlights

This furnace offers high efficiency heating with modulating operation and is Energy Star compliant, ensuring energy savings and consistent temperature control.

Product Information

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: G97CMN1202422B

Technical Specifications

• Product Type: Heating Furnace
• AFUE: 97%
• Fuel Type: Gas
• Stages: Modulating
• Communication: Communicating
• Input BTU: 120,000 BTU/H
• Output BTU: 115,200 BTU/H
• CFM: 2,200
• Vent/Connection Size: 11" x 11"
• Motor Type: ECM
• Voltage: 120V
• Configuration: Multipoise
• Energy Star Compliant: Yes
• Condensing: Yes
• Amperage: 18.4 A
• Max Fuse Size: 20 A
• Fan Speeds: Variable
• Filter Type: Media
• Heat Exchanger Type: Stainless Steel
• Horsepower: 1 hp
• Ignition System: Silicon Nitride Direct Ignition
• Number of Burners: 6
• Phase: Single Phase
