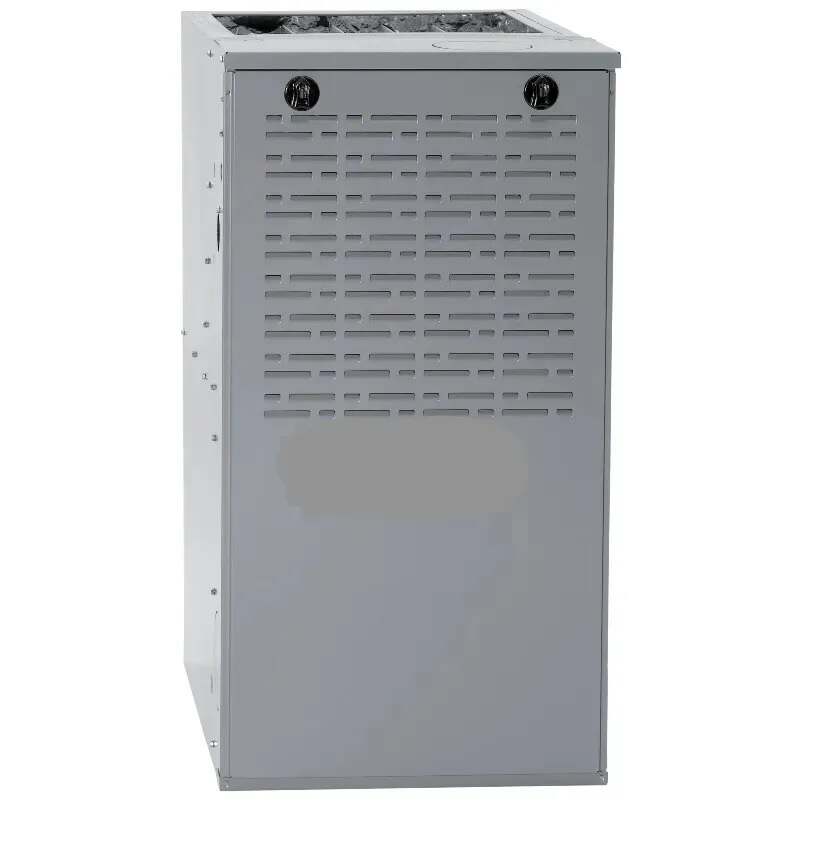

International Comfort Products G80CTL0701716B 80% variable speed gas heating furnace 70000 BTU 33-1/3 inches H x 17-1/2 inches W x 29 inches D

Product Description

The INTERNATIONAL COMFORT PRODUCTS G80CTL0701716B is an 80% AFUE variable speed gas heating furnace. It features cabinet air leakage less than 2.0% at 1.0 in. W.C. and less than 1.4% at 0.5 in. W.C., tested per ASHRAE standard 193. This unit supports two-stage cooling and integrates with ION and Observer Communicating Control Systems. It includes flame rollout sensors, Category I venting, and a blocked vent switch, ensuring efficient and safe operation.

• Achieves 80% AFUE efficiency for reduced energy consumption.
• Supports two-stage cooling units and integrates with ION and Observer Communicating Control Systems.
• Equipped with flame rollout sensors, Category I venting, and a blocked vent switch for enhanced safety.

Product Highlights

Features Low NOx design for California installations, meeting 40 ng/J NOx emissions requirements.

Product Information

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: G80CTL0701716B

Technical Specifications

• AFUE: 80%
• Cabinet Air Leakage (1.0 in. W.C.): Less than 2.0%
• Cabinet Air Leakage (0.5 in. W.C.): Less than 1.4%
• ASHRAE Standard: 193
• Venting Category: I
• Humidifier Terminal: 24 VAC
• NOx Emissions: 40 ng/J (for Low NOx units)
• Input BTU: 70000 BTU/hr
• Output BTU: 54000 BTU/hr
• Airflow CFM: 1600 CFM
• Vent Size: 6" x 10"
• Stages: Two Stage
• Blower Type: ECM Blower
• Installation Position: Multi-position
• Fuel Type: Liquid Propane / Natural Gas
• Connection Size: 1/2 in
• Fuse Size: 15 A
• Ignition Type: Silicon Nitride
• Low NOX: Yes
• Motor HP: 3/4 HP
• Series: G80CTL
• Voltage Rating: 115 V
