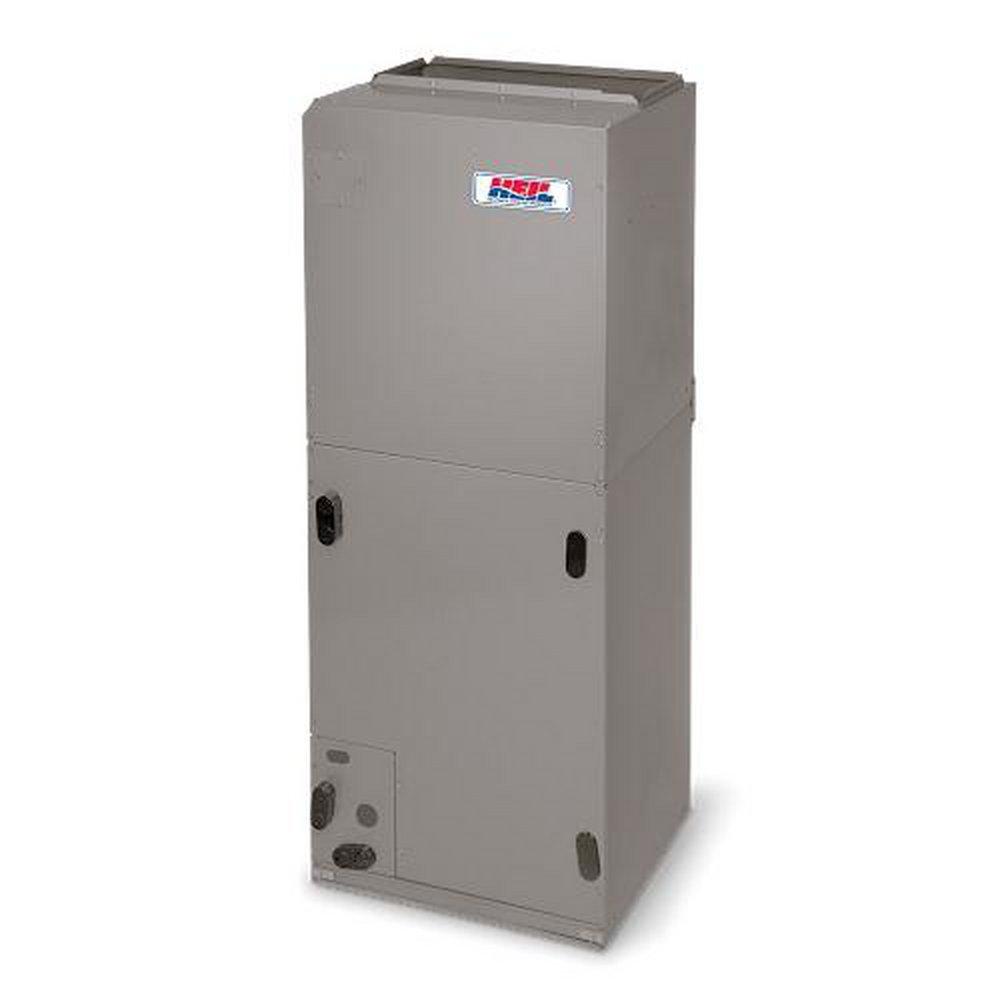

International Comfort Products FTMA5B60L0DA QuietComfort TXV Variable Speed Fan Coil 5 ton nominal 3/4 hp 208/230 1 ph 60 hz

Product Description

The International Comfort Products FTMA5B60L0DA is a premium variable speed fan coil air handler designed for use with R-454B refrigerant. This 5 ton nominal unit features a 3/4 hp ECM motor, providing an operational advantage when paired with a compatible heat pump or air conditioner. It delivers 60,000 Btu/hr cooling capacity and a 1750 cfm flow rate, operating at 208/230V.

• Premium air handler combining proven ICP fan coil technology.
• Utilizes environmentally balanced R-454B refrigerant.
• Achieves operational advantage with variable speed ECM motor.

Product Highlights

Premium variable speed fan coil air handler with R-454B refrigerant and ECM motor for operational efficiency.

Product Information

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: FTMA5B60L0DA

Technical Specifications

• Item Number: ICPFTMA5B60L0DA
• Manufacturer Part Number: FTMA5B60L0DA
• Brand: ICP - Comfortmaker / Tempstar
• Cooling Capacity: 60000 Btu/hr
• Flow Rate: 1750 cfm
• Refrigerant Type: R-454B
• Input Voltage: 208/230 V
• Dimensions (W x H x D): 24-11/16 in x 59-3/16 in x 22-1/16 in
• Filter Size: 24 x 20 in
• Manufacturer: International Comfort Products
• Motor Horsepower: 3/4 HP
• Motor Type: ECM
• Series: FTMA5
• Type: Multi-Position
• A2L Compatible: Yes
• Coil Type: Multi
• Collection: FTMA5 Series
• Configuration: Downflow, Horizontal, Upflow
• Energy Star Compliant: No
• Liquid Line OD: 3/8 in
• Material: Aluminum
• Minimum Circuit Ampacity: 7.1 A
• Refrigerant Control: TXV
• Suction Line OD: 7/8 in
• Tonnage: 5 Ton
• UL Listed: Yes
• Weight: 207 lbs
