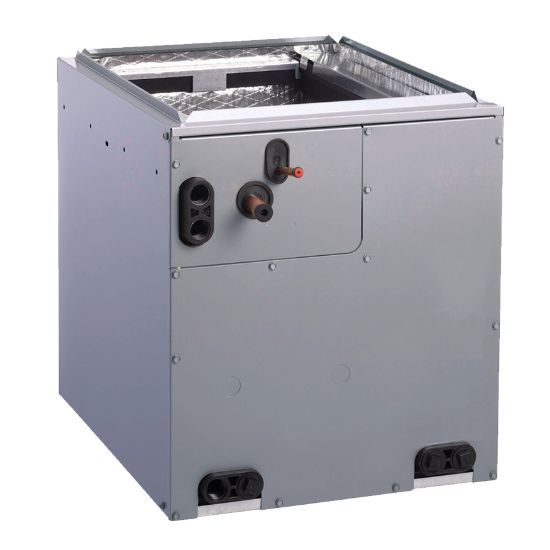

International Comfort Products EVM5X61M24A 5 ton Horizontal Evaporator Coil With Power-V Technology Cased 24-1/2 in W

Product Description

The INTERNATIONAL COMFORT PRODUCTS EVM5X61M24A is a 5 ton horizontal evaporator coil designed for reliable system operation and performance. This cased V-coil, suitable for use with R-454B refrigerant only, features a durable 24-gauge pre-painted cabinet. Its fully insulated design with R-2.1 insulation ensures quiet and efficient operation, providing AHRI-rated performance. The coil incorporates Power-V Technology and is listed with UL and c-UL, making it a robust component for comfort systems.

• Incorporates proven standards for reliable system operation and performance.
• Provides AHRI-rated performance ratings and is additionally listed with UL and c-UL.
• Fully insulated cabinet with R-2.1 insulation ensures quiet and efficient operation.

Product Highlights

Features Power-V Technology and a durable 24-gauge pre-painted cabinet for efficient and quiet operation.

Product Information

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: EVM5X61M24A

Technical Specifications

• Coil Type: Cased Multipoise Aluminum V-Evaporator
• Flow Rate: 2500 cfm
• Nominal Capacity: 5 ton
• Refrigerant Type: R-454B
• Series: EVM5X
• Liquid Line Size: 3/8 in
• Suction Line Size: 7/8 in
• Product Type: Evaporator Coils
• A2L Compatible: Yes
• BTU/hr: 60k
