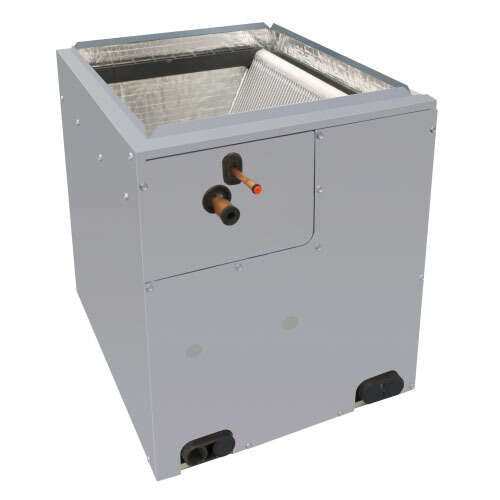

International Comfort Products EVD4X48M24A Evaporator Coil Cased 4 Ton Upflow/Downflow (4 Ton)

Product Description

International Comfort Products EVD4X48M24A is a cased evaporator coil for 4-ton HVAC systems using Power-V (V-coil) technology configured for upflow or downflow installation. It includes a factory-installed, refrigerant-specific thermostatic expansion valve (TXV) preset to approximately 10 degrees of superheat, a corrosion-resistant PBT condensate pan with three watertight drain plugs, sweat refrigerant connections with straight tube for braze-less fittings, factory UV knockouts, and meets or exceeds 1900 psi burst pressure. The coil is removable from the front without tools after door removal and refrigerant line disconnection, facilitating service and cleaning.

• Factory-installed refrigerant-specific TXV preset to ~10 degrees superheat
• Corrosion-resistant PBT condensate pan with three watertight drain plugs and proper slope
• Sweat refrigerant connections with straight tube for braze-less compression fittings; factory UV knockouts; front-removable coil for service

Product Highlights

Cased 4-ton Power-V (V-coil) evaporator with factory TXV, PBT drain pan, R410A compatibility, and front-removable serviceability.

Product Information

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: EVD4X48M24A

Technical Specifications

• Brand: International Comfort Products
• Manufacturer Part Number: EVD4X48M24A
• Model / Title: Evaporator Coil Cased 4 Ton With Power-V Technology Upflow/Downflow
• Capacity: 4 Ton
• BTU: 48000
• Power Technology: Power-V (V-coil)
• Coil Type: V-coil
• Orientation: Upflow/Downflow
• Refrigerant: R410A
• Thermostatic Expansion Valve (TXV): Factory-installed, refrigerant-specific, preset to approximately 10 degrees superheat
• Condensate Pan Material: Polybutylene terephthalate (PBT)
• Condensate Drain Plugs: Three watertight drain plugs
• Refrigerant Connections: Sweat connections with sufficient straight tube length for braze-less compression fittings
• Burst Pressure: Meets or exceeds 1900 psi
• UV Knockouts: Factory-installed
• Serviceability: Removable from the front without tools after door removal and refrigerant line disconnection
• Material: Aluminum coil construction
