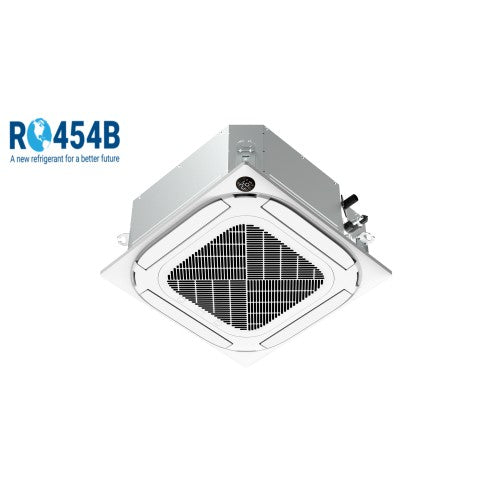

International Comfort Products D5FSCAH18XAK 1.5 ton QuietComfort 4-way cassette ductless heat pump with R-454B refrigerant 18,000 BTU/hr heating 16,800 BTU/hr cooling

Product Description

The International Comfort Products D5FSCAH18XAK is a 1.5 ton QuietComfort 4-Way Cassette Ductless Heat Pump designed for efficient heating and cooling. This unit utilizes R-454B refrigerant, offering a 75% decrease in GWP compared to R-410A. It provides 18,000 BTU/hr heating and 16,800 BTU/hr cooling capacity with a 20.8 SEER2 rating. Operating at 208/230 V and 60 Hz, it features a low sound level of 23.5 to 44.5 dBA for quiet operation.

• Silent mode indoor operation as low as 23.5 dB(A).
• Consistent and evenly distributed airflow for uniform room temperature.
• Built-in condensate pump with 29.5 inches of lift.

Product Highlights

Features Follow Me temperature sensing, auto-restart, and A2L R-454B refrigerant.

Product Information

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: D5FSCAH18XAK

Technical Specifications

• Cooling Capacity: 16,800 BTU/hr
• Heating Capacity: 18,000 BTU/hr
• Nominal Capacity: 1.5 ton
• Refrigerant Type: R-454B
• SEER2 Rating: 20.8
• Sound Level: 23.5 to 44.5 dBA
• Ceiling Clearance: 26.3 in W x >10.8 in H x 26.3 in
• Face Area: 2.95 sq. ft
• Fins per Inch: 20
• Flow Rate: 448 cfm
• Frequency Rating: 60 Hz
• Liquid Line Size: 1/4 in
• Maximum Line Length: 98.42 ft
• Motor HP: 0.061 HP
• Mounting Type: Ceiling
• Number of Circuits: 4
• Number of Rows: 2
• Phase: 1
• Series: QuietComfort
• Suction Line Size: 1/2 in
• Temperature Rating: 32 to 90 deg F
• Type: 4-Way Cassette
• Voltage Rating: 208 / 230 V
• A2L Compatible: Yes
