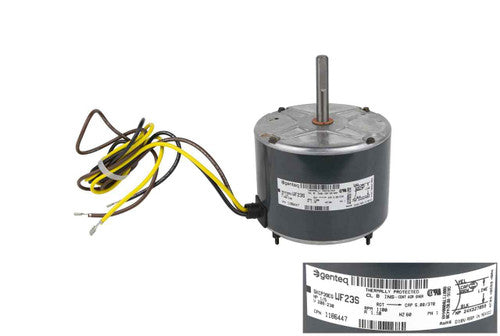

International Comfort Products 1186447 Condenser Fan Motor

Product Description

The International Comfort Products 1186447 Condenser Fan Motor is a reliable option for HVAC systems. This single-phase motor operates efficiently at 208/230 VAC and 60 Hz. Manufactured by Genteq, this motor delivers one-fifth horsepower at 1100 RPM with a single speed, ensuring consistent performance. It features a durable design with a thermal protection feature and Class B insulation that adds to longevity.

• Operates at 208/230 VAC, 60 Hz, single-phase power.
• Provides 1/5 horsepower at 1100 RPM.
• Thermally protected with Class B insulation.

Product Highlights

This motor is designed for continuous air over cooling and incorporates ball bearings for smooth operation. It has a vertical shaft down mounting setup and ensures clockwise lead end rotation, making it suitable for various applications.

Product Information

Standard Information

• Manufacturer: Genteq
• Model Number: 5KCP39EGWF23S

Technical Specifications

• Horsepower: 1/5
• Voltage: 208/230
• Hertz: 60
• Amperage: 1.10
• Phase: Single
• RPM: 1100
• Speeds: 1
• Frame: 39
• Thermal Protection: Yes
• Insulation Class: B
• Motor Duty/Cooling: Continuous Air Over
• Bearings: Ball
• Capacitor Required: 5 MFD @ 370 VAC
• Mounting: Vertical Shaft Down
• Rotation: Clockwise Lead End
• Shaft Type: Single Side Flat Shaft
• Shaft Diameter: 1/2
• Shaft Length: 2 3/4
