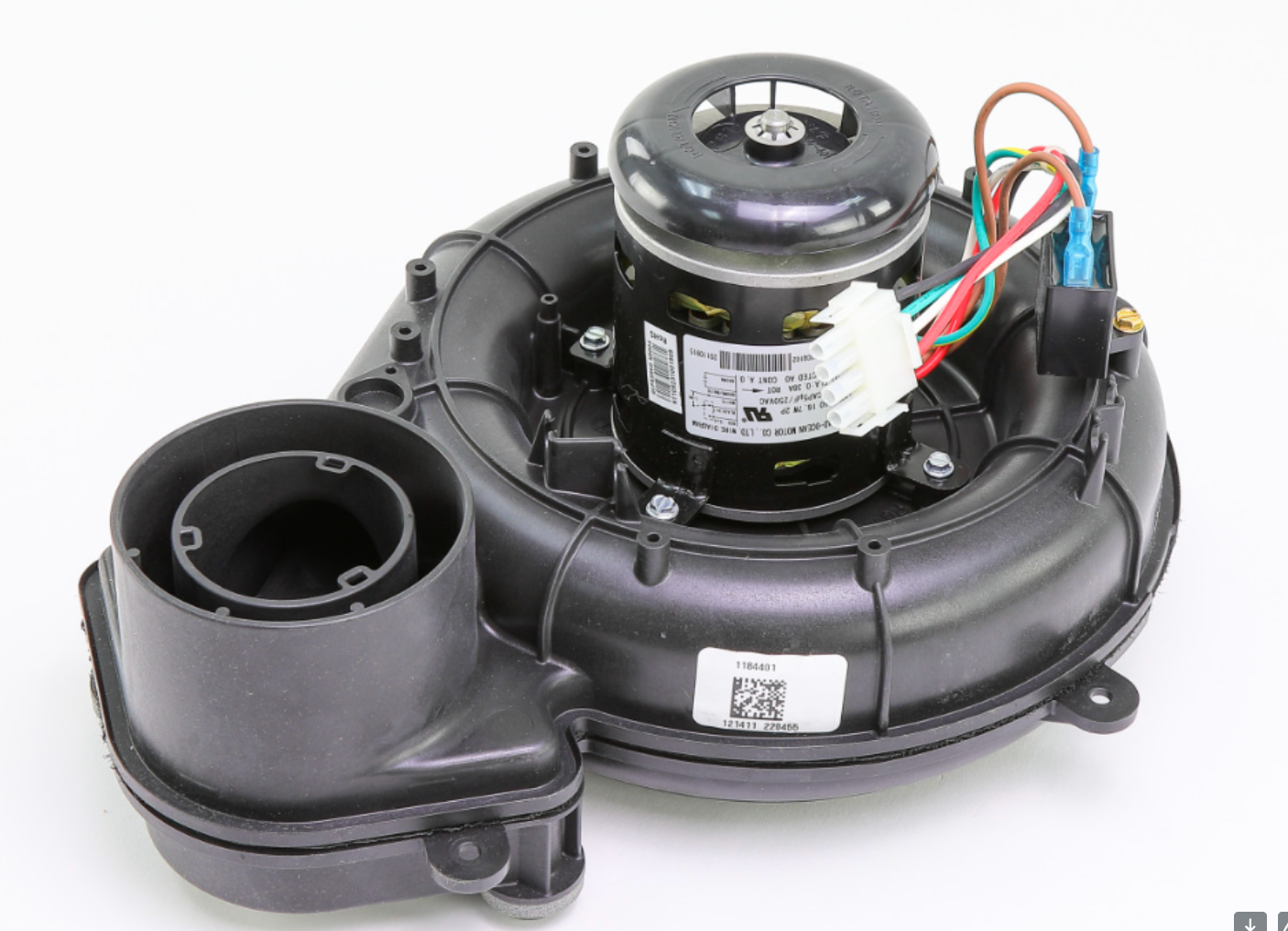

International Comfort Products 1184401 Draft Inducer Motor Assembly

Product Description

The International Comfort Products 1184401 is a draft inducer motor assembly used in HVAC systems. This assembly includes the draft inducer motor, an inlet choke plate, and screws. It is suitable for single-phase power applications. The motor operates at a specific RPM, delivering efficient air circulation for heating and cooling systems.

• Includes draft inducer motor, inlet choke plate, and screws.

• Designed for single-phase power at a specific voltage and frequency.

• Features thermal protection and supports continuous air over operation.

Product Highlights

This motor assembly is crucial for ensuring efficient airflow in HVAC systems. The thermal protection feature enhances the durability of the motor during operation.

Product Information

Standard Information

• Brand: International Comfort Products

• MPN: 1184401

Technical Specifications

• Manufacturer: Broad-Ocean

• Voltage: 115

• Hertz: 60

• Number of Phases: 1

• Amps: 0.393

• RPM: 3030

• Number of Speeds: 2

• Insulation Class: B

• Thermally Protected: True

• Continuous Air Over: True
