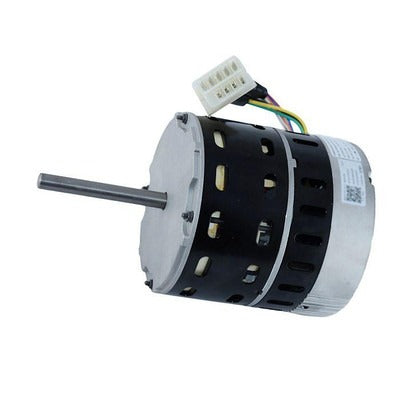

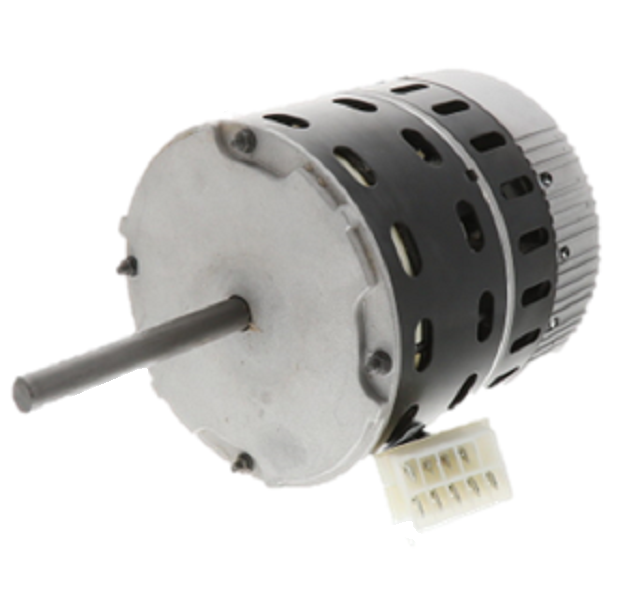

International Comfort Products 11002015000783 208-230V 1/2 Hp ECM Motor (Each) Replacement 11002015000783

Product Description

The International Comfort Products 11002015000783 is a 208-230V, 1/2 hp ECM blower motor for HVAC blower assemblies. It provides electronically commutated variable-speed operation with a direct-drive design and an integrated factory-programmed control module; nominal speed is approximately 1800 RPM. Construction features a rolled steel frame and aluminum flange. Single-phase operation and moisture-resistant windings make it suitable for air handlers, furnaces, and OEM replacement applications.

• 208-230 V input; 1/2 hp electronically commutated motor (ECM) for variable-speed blower control
• Direct-drive design with integrated factory-programmed control module; nominal speed approximately 1800 RPM
• Rolled steel frame and aluminum flange construction; single-phase with moisture-resistant windings

Product Highlights

OEM 11002015000783 ECM blower motor for 208-230V HVAC systems; direct-drive, approx. 1800 RPM.

Product Information

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: 11002015000783
• Country of Origin: United States

Technical Specifications

• Brand: International Comfort Products
• MPN: 11002015000783
• Model: 11002015000783
• Input Voltage: 208-230 V
• Horsepower: 1/2 hp
• Motor Type: ECM (electronically commutated motor)
• Speed: Approximately 1800 RPM
• Phase: Single-phase
• Drive: Direct-drive
• Function: Blower motor / HVAC blower
• Frame Material: Rolled steel frame
• Flange Material: Aluminum flange
• Control: Integrated factory-programmed control module
• Rotor: Precision-balanced rotor
• Bearings: High-grade ball bearings
• Windings: Moisture-resistant windings
• Weight: 10.74 lb
• Frequency: 60 Hz
• Condition: New
• Country of Origin: United States
