Product Description

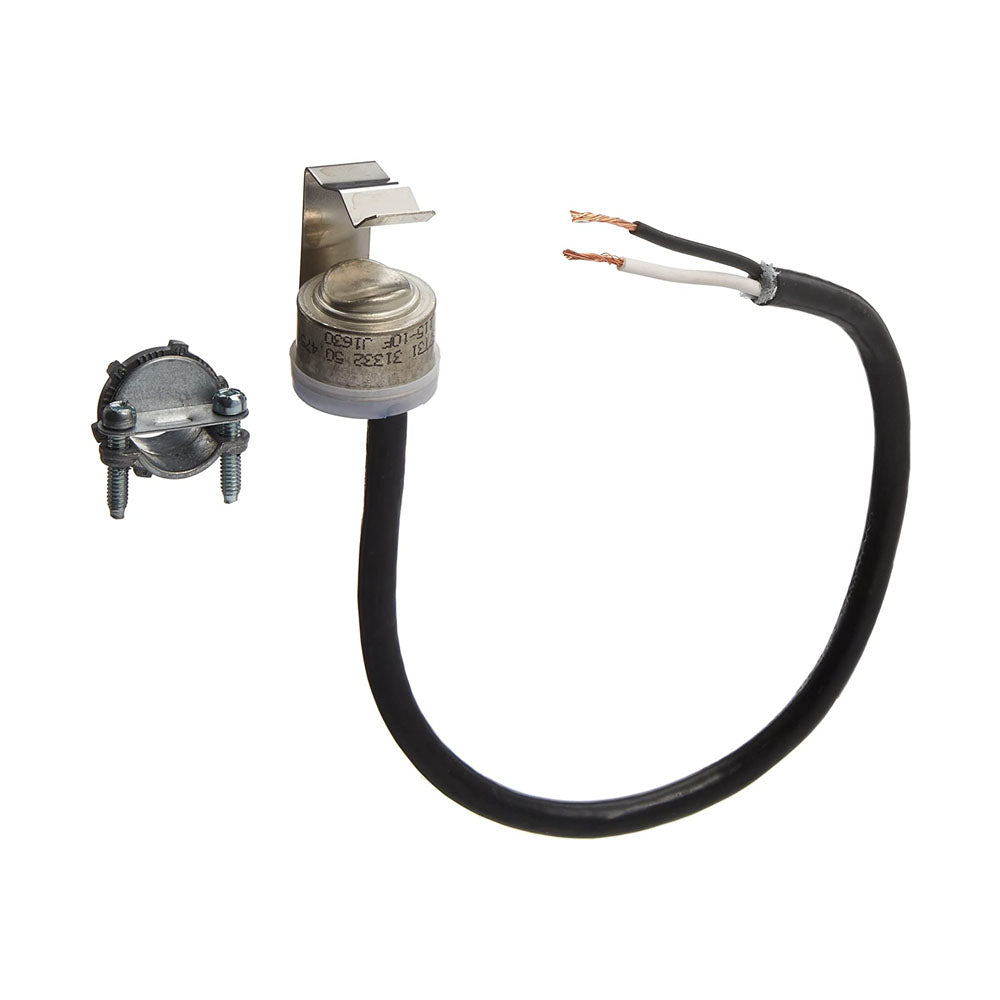

The Intermountain Sales (Grundfos) 595657 Clip-On Thermostatic Control is designed for use with single speed, Series UP 115 volt circulators. This control features a three-quarter inch clip-on mount suitable for seven-eighths inch O.D. system piping. It is compatible with three-quarter inch I.D. copper tubing or half inch steel pipe. The thermostat operates between the temperatures of one hundred fifteen plus five degrees Fahrenheit and one hundred five plus six degrees Fahrenheit, allowing for precise control over pump operation.
- Designed for single speed, Series UP 115 volt circulators
- Clip-on mount for straightforward installation on compatible piping
- Temperature range ensures efficient pump activation and deactivation
Product Highlights
This thermostatic control efficiently manages your circulator system by switching the pump on and off at specified temperature thresholds, making it suitable for various plumbing applications.
Product Information
Standard Information
-
Brand: Intermountain Sales (Grundfos)
-
MPN: 595657
Technical Specifications
-
Mount Type: Clip-On
-
Pipe Compatibility: 3/4inch I.D. copper tubing or 1/2inch steel pipe
-
Operating Temperature Range: 115+5 degrees F (40+2 degrees C)
-
Switch Off Temperature: 105+6 degrees F (29+3 degrees C)
-
Leads: 2 Leads, AWG 18, 14.5 inches strip length
