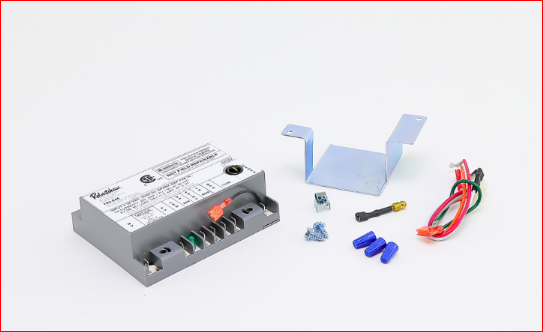

Robertshaw 780-002 Lockout Universal Ignition Control Uni-Kit 24 VAC 1.5A Liquid Propane 360 sec Prepurge 3 Retries

Product Description

The Robertshaw 780-002 Lockout Universal Ignition Control Uni-Kit is essential for reliable ignition control in various gas appliances. The kit includes a lockout feature that ensures safety by preventing repeated pilot reignition after a flame failure.

• Universal design for easy integration.
• Advanced circuitry for consistent spark generation.
• Suitable for residential and commercial heating equipment.

Product Highlights

This ignition control module is designed for use with furnaces, water heaters, and fireplaces. It features effective spark generation, reducing ignition failures and enhancing overall system reliability.

Product Information

Standard Information

• Brand: Robertshaw
• MPN: 780-002

Technical Specifications

• Type: Lockout, Universal
• Input Voltage: 24 VAC
• Transformer: 24 VAC / 20 VA
• Spark Rate: 3 to 4 sparks per second
• Pilot Valve: 1 amp at .5 PF
• Main Valve: 1 amp at .5 PF
• Combined Load: 1.5 amps at .4 PF
• Flame Sense Current: .7 µA DC at 25°C / 24 VAC
• Max Total Current: 1.5 amps
• Flame Failure Recognition Time: .8 seconds maximum
• Thermostat Anticipator Setting: .7 amp
• Ambient Temperature Rating: -40 to 175°F (-40 to 80°C)
• Relative Humidity: 95% noncondensing at 104°F
• Retries: 3
• Gas Type: Liquid Propane
• Reset Time: 10 seconds
• Electrical Connection: 1/4 Inch Spade and Molex Plug
• Prepurge Time: 360 seconds
