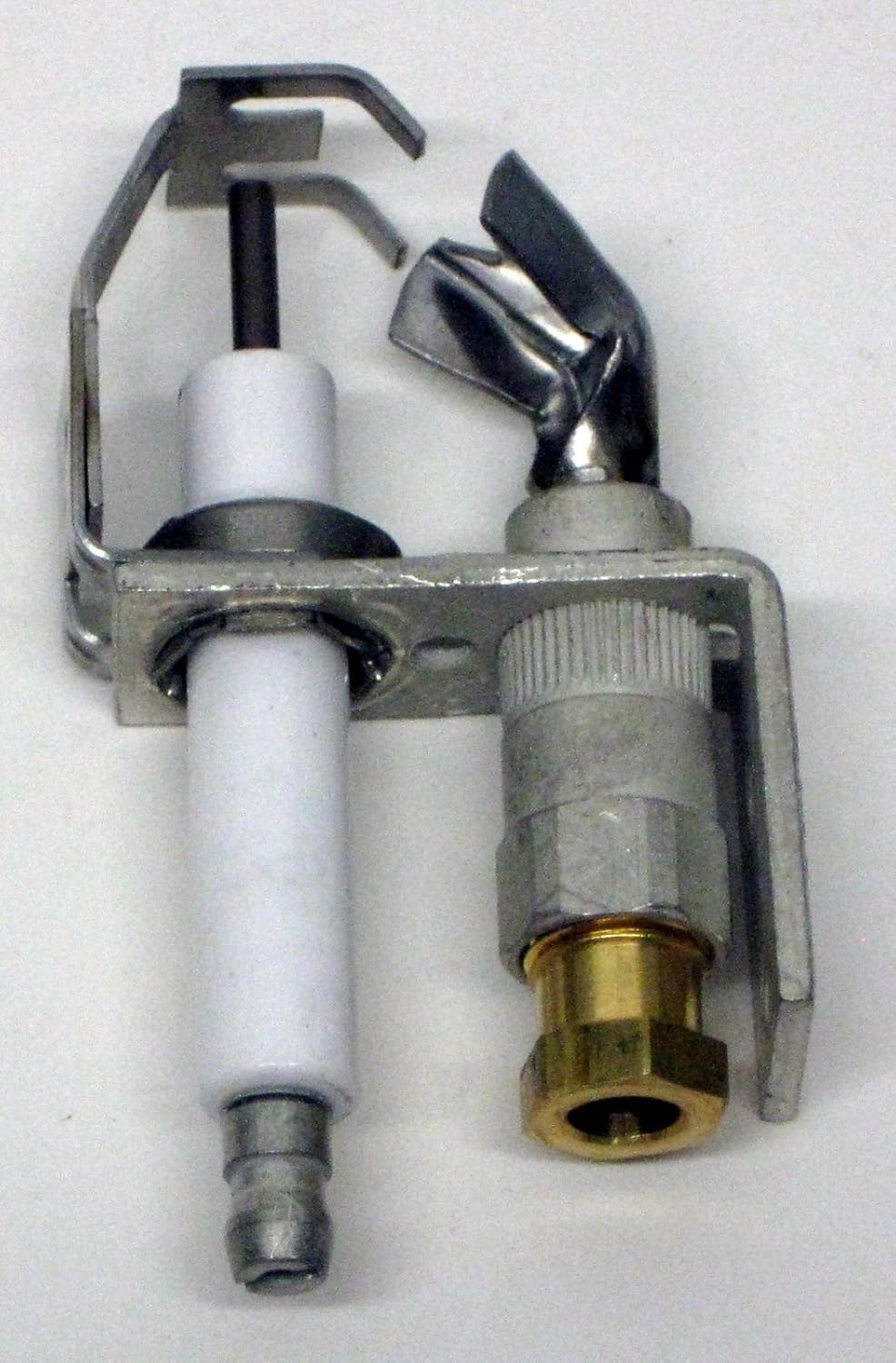

Honeywell Q345A1313 Intermittent Pilot Burner Natural Gas BCR-18 Single Tip 1/4 Inch Compression

Product Description

The Honeywell Q345A1313 Intermittent Pilot Burner is a reliable solution for intermittent pilot applications. This burner, with its BCR-18 (0.018 inch) orifice and single tip, is designed for use with natural gas. The unit includes a 1/4 inch compression connection and features a non-primary aeration design. The Q345A1313 offers practical application in various Honeywell intermittent pilot systems, making it a versatile choice for your HVAC needs.

• Designed for intermittent pilot applications
• Natural gas compatibility

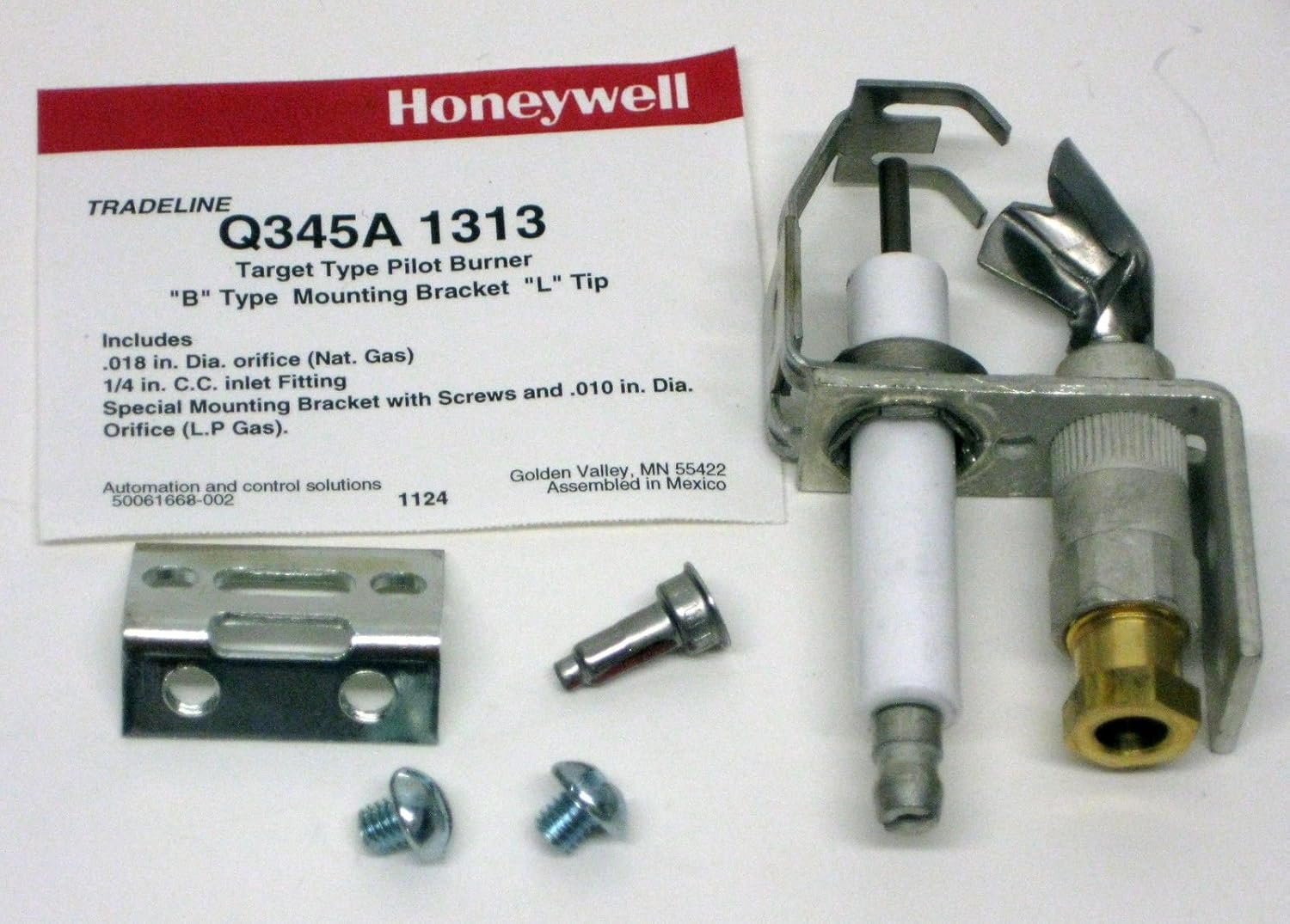

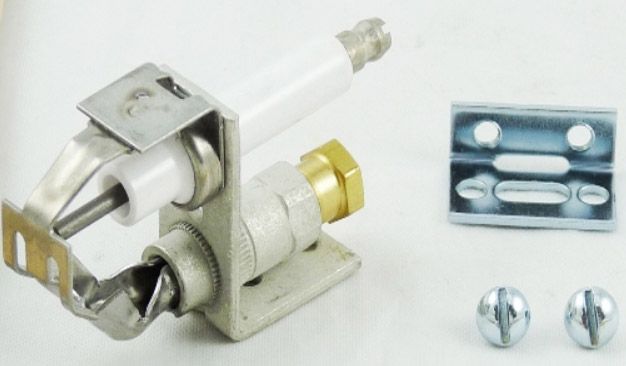

• Includes a mounting bracket and ceramic-insulated Kanthal flame rod/spark igniter

Product Highlights

The Honeywell Q345A1313 Pilot Burner is an integral part of intermittent pilot systems, providing reliable ignition and pilot performance. It features a left-direction front tip and comes with a Style B bracket mount.

Product Information

Standard Information

• Brand: Honeywell
• MPN: Q345A1313

Technical Specifications

• Type: Intermittent
• Series: Q345
• Aeration: Non-Primary
• Gas Type: Natural Gas
• Tip Style: Single
• Dimensions: 3/4 Inch L x 1-14/25 Inch W x 3 Inch H
• Orifice Size: BCR-18 (0.018 Inch)
• Mounting Type: Style B Bracket
• Connection Type: 1/4 Inch Compression
• Direction of Front Tip: Left
