Intermatic WP5103C In Use Weatherproof Cover with Adapter Plate for 3/0 Box

Product Description

The Intermatic WP5103C plastic in-use weatherproof cover is extra-duty rated and easy to install. It comes with a gasket, mounting screws, base, cover assembly, and inserts to meet the needs of a variety of applications. This single-gang receptacle cover provides receptacle protection for indoor or outdoor applications.

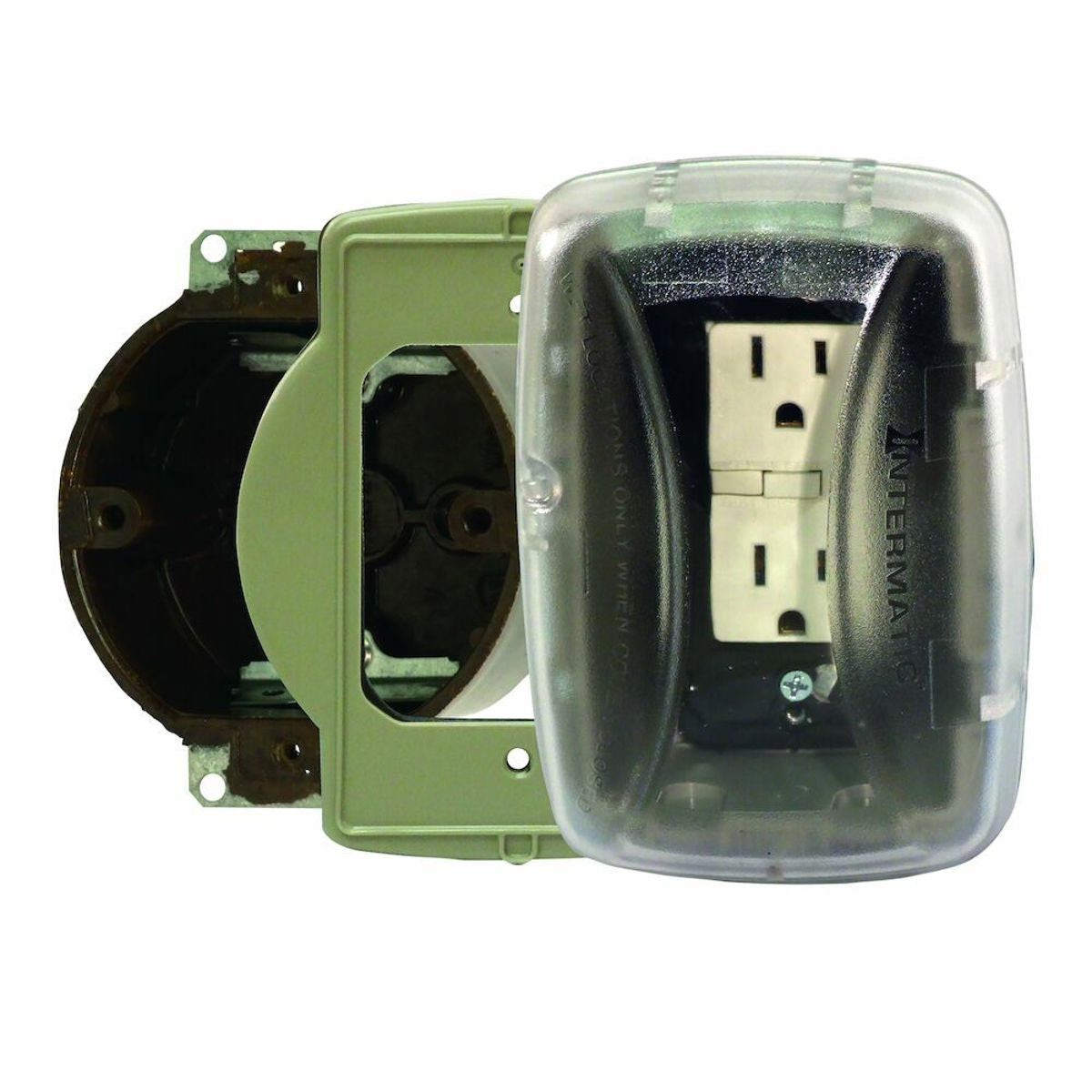

• Includes 3/0 adapter plate for 3 (76 mm) round box
• Complies with 2020 NEC Article 406.9 (B)(1) for wet locations and extra-duty applications
• CEC Article 26-702 Compliant

Product Highlights

The Intermatic WP5103C weatherproof cover is UL certified for Type 3R outdoor enclosures and meets requirements for cold impact testing at -60° F (-51° C).

Product Information

Standard Information

• Brand: Intermatic
• Manufacturer Part Number: WP5103C
• Country of Origin: Mexico

Technical Specifications

• Type: Weatherproof Receptacle Cover
• Brand: Intermatic
• Color: Clear
• Depth: 2-3/4 Inch
• Shape: Rectangle
• Width: 119.1 mm
• Height: 6.333 Inch
• Material: Polycarbonate
• Standard: 2014 NEC Article 406.9(B)(1) Compliant,CEC Rule 26-702,CSA,UL Certified For Type 3R,UL Listed
• Gang Type: Single
• Applications: Receptacle Protection
• Construction: Heavy-Duty Polycarbonate
• Mounting Type: Horizontal,Vertical
• Number of Outlets: 2
• Insulation Material: Neoprene Gasket
• Catalog Number: WP5103C
• Manufacturer: Intermatic
• Made in USA: No
• Knockouts: Yes
• Mounting: Surface
• Special Features: Features: Heavy-Duty UV Stabilized Polycarbonate Construction Ensures Long-Lasting Durability, Reinforced Hinge Pin Designed to Exceed 40lb Hinge Hang/Stress Test, Impact Rated 12 lb Impact Test to Ensure Cover Remains In-tact, Lockable Hasp Accept up to 0.25" Diameter Shank, Meets Requirements for Cold Impact Testing -60°F (-51°C)
• UPC: 078275147669
• GTIN: 00078275147669
• Item Type: Weatherproof Receptacle Cover
• ECCN: EAR99
• UNSPSC: 39121304
• Box Mounting: Horizontal or Vertical
• Color Family: Clear
• Length: 160.3 mm
• Temperature Rating: -51 deg C
• Cover Type: Receptacle
• Mounting Orientation: Horizontal/Vertical
• Series: WP5103C
• Includes: (3) WP17 FlexiGuard Inserts, Neoprene Gasket, Mounting Screws, Knockouts, Base and Cover Assembly
• Mfg Standards/Approvals: ARRA Compliant | Buy American Act Compliant | UL 514B | UL 514C | CSA C22.2 No. 85
