Intermatic WP5100C Extra Duty In-Use Cover 1-Gang Vertical/Horizontal 2-3/4 Deep

Product Description

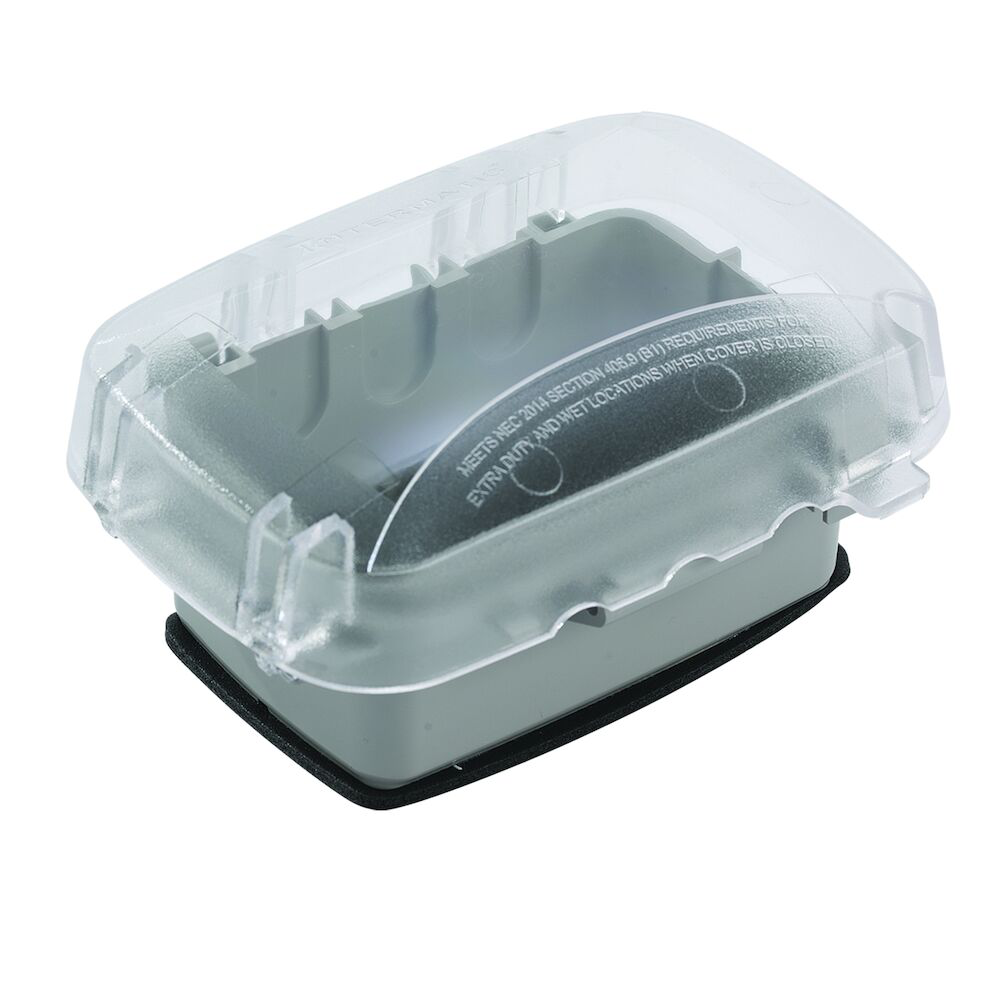

The Intermatic WP5100C is a heavy-duty, weatherproof cover designed for in-use situations. This extra-duty rated receptacle cover measures six and one-half inches in length, four and three-quarters inches in width, and two and three-quarters inches in depth. It is constructed from UV stabilized polycarbonate, which ensures durability in various weather conditions.

• Complies with 2020 NEC Article 406.9 (B)(1) for wet locations
• Meets the requirements for cold impact testing down to negative sixty degrees Fahrenheit
• Includes a neoprene gasket with slits for easy mounting

Product Highlights

This cover is ideal for commercial or residential use, providing protection in outdoor applications. It is suitable for both vertical and horizontal mounting, making it versatile for any installation.

Product Information

Standard Information

• Brand: Intermatic
• MPN: WP5100C

Technical Specifications

• Type: Rectangular, Receptacle
• Material: Polycarbonate
• Color: Clear
• Insulation Type: Neoprene Gasket
• Mounting Type: Vertical, Horizontal
• Temperature Rating: -51 degrees Celsius
• Dimensions: 2.75 depth x 6.5 height x 4.75 width inches
• Country of Origin: Mexico
• Standards: UL Listed, CSA, compliant with 2014 NEC
