Intermatic WP3100C Flexi-Guard In-Use Weatherproof Exterior Receptacle Cover

INTERMATIC
Brand: INTERMATIC
SKU: WP3100C
Availability: In Stock

Ships same day if ordered by 12 pm
$24.64
$24.64
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The INTERMATIC WP3100C is a heavy-duty non-metallic weatherproof while-in-use cover designed for exterior receptacles. It measures 146.6 mm L x 103.1 mm W x 2-3/4 in D and is constructed from polycarbonate. This rectangular receptacle cover features neoprene gasket insulation and supports horizontal or vertical surface mounting. It is suitable for damp and wet locations, complying with NEC Article 314.15.

  • Complies with 2020 NEC Article 314.15 for damp and wet locations.

  • Meets requirements for cold impact testing down to -51 deg C (-60 deg F).

  • Constructed from heavy-duty UV stabilized polycarbonate with a pre-adhered neoprene gasket.

Product Highlights

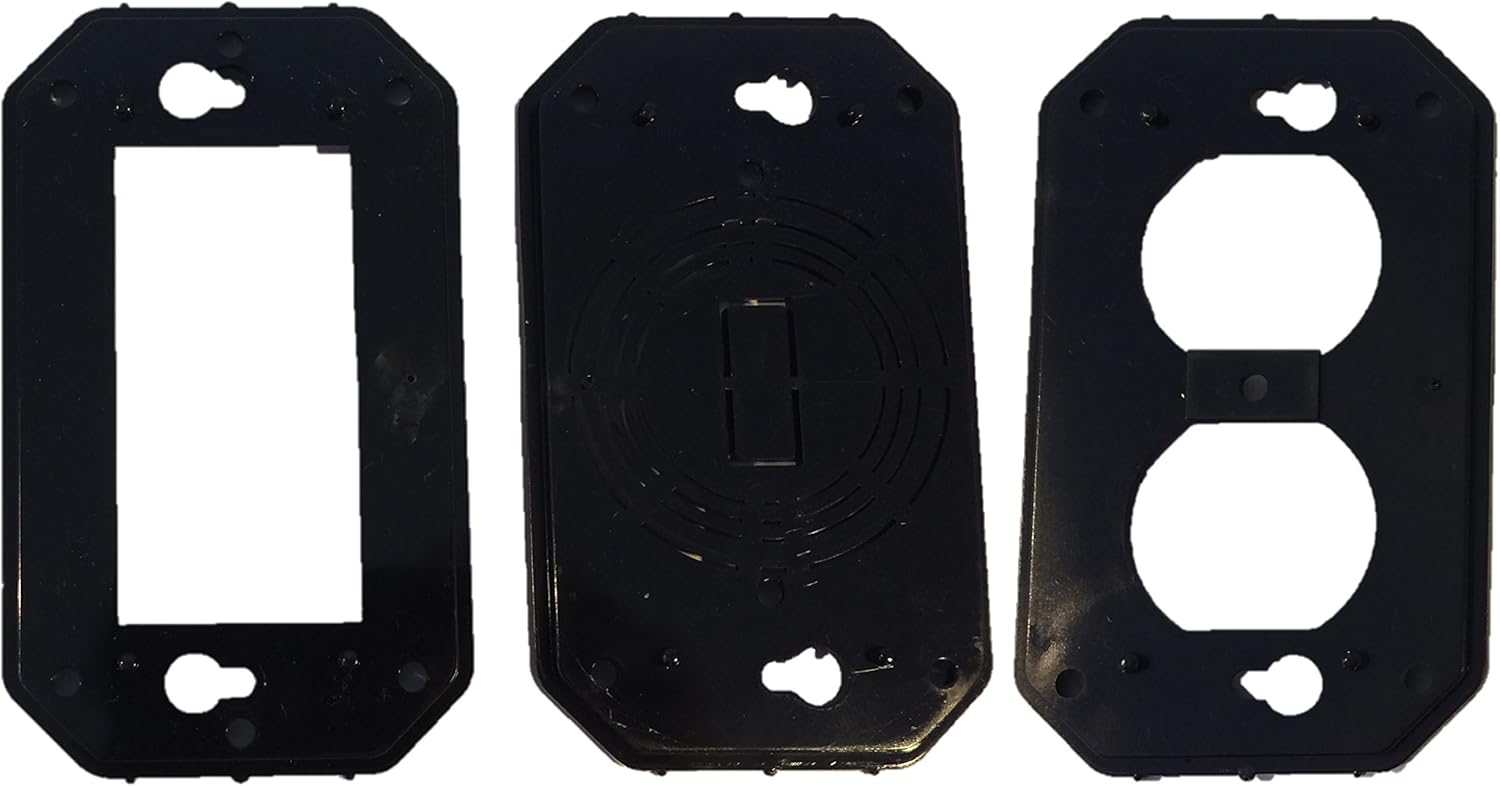

Versatile design with three FlexiGuard inserts for up to 16 configurations, supporting horizontal or vertical mounting.

Product Information

Standard Information

  • Brand: INTERMATIC

  • Manufacturer Part Number: WP3100C

  • Country of Origin: Mexico

Technical Specifications
Type
Heavy Duty Non-Metallic

Cover Type
Receptacle

Material
Plastic Polycarbonate

Color
Clear

Installation Type
Screw-In

Mounting Type
Surface

Mounting Orientation
Horizontal/Vertical

Number of Gangs
1 Gang

Number of Outlets
1

Shape
Rectangular

Insulation Material
Neoprene Gasket

Cold Impact Testing Temperature
-60 deg F (-51 deg C)

Standard Compliance
2020 NEC Article 314.15, 2011 NEC Article 406.9 (B1), 2008 NEC Article 406.8, UL/CSA Cold Impact Testing, UL Listed, NEMA 3R, CSA, PROP65, cULus Listed, CEC Article 26-702

Receptacle Type
Duplex, GFCI, Toggle or Round

Lockable Hasp
Accepts up to 1/8 in (3 mm) dia shank

Applications
Residential, Industrial, Sports Fields, Commercial, Agricultural, Signage, Schools

Includes
(3) WP17 FlexiGuard Inserts, Neoprene Gasket, Mounting Screws, Knockouts, Base and Cover Assembly

Knockouts
True

Style
Industrial

Quantity
1
