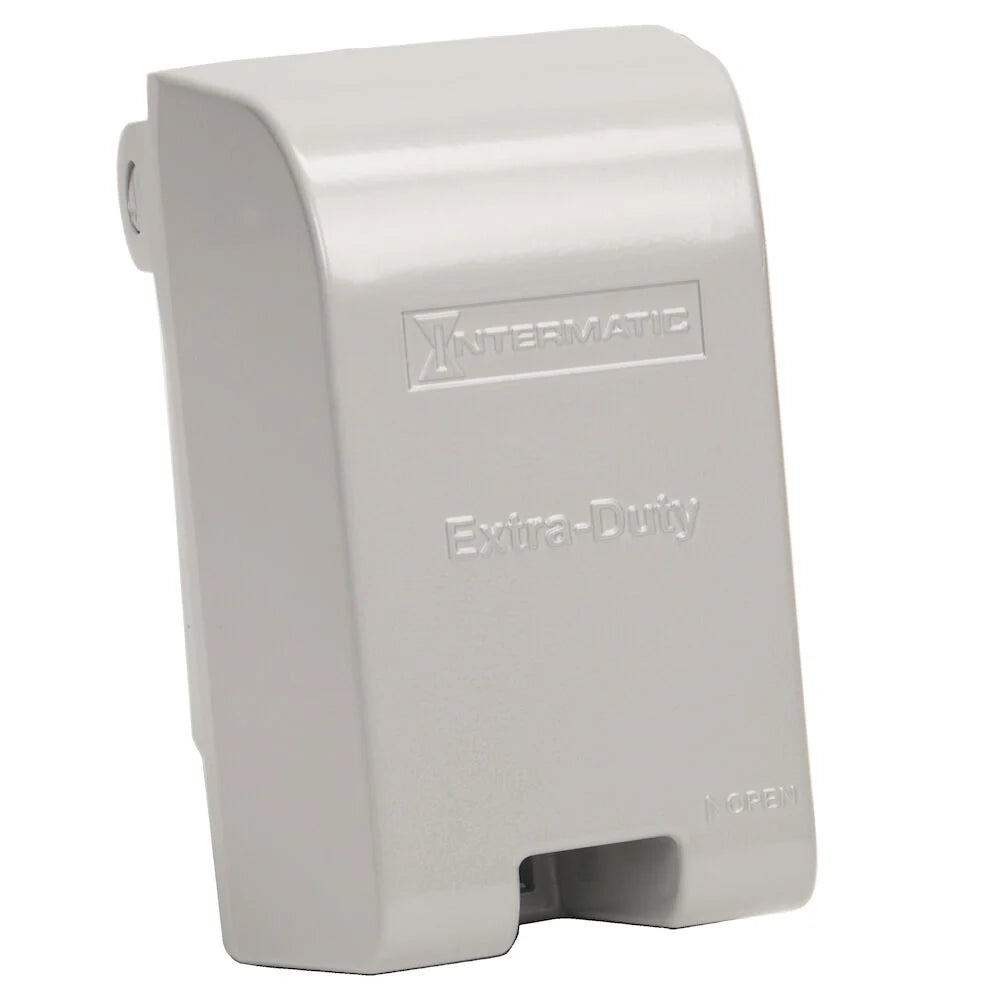

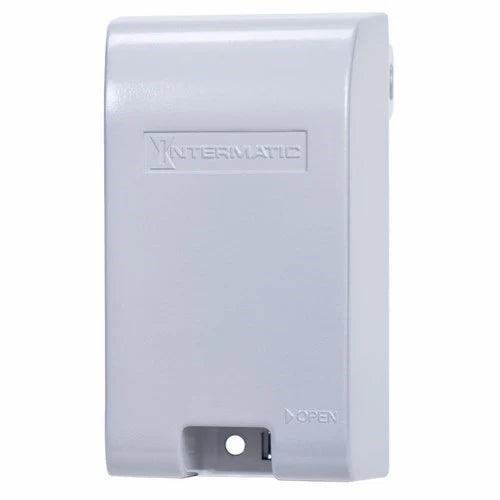

Intermatic WP1250MVXD Two Gang Extra-Duty Weatherproof In-Use Receptacle Cover Vertical

Product Description

Intermatic WP1250MVXD is a two gang extra-duty weatherproof in-use receptacle cover. This product features heavy-duty die-cast aluminum construction designed to withstand various weather conditions. Installation is simple, and it includes a gasket, mounting screws, a base, and cover assembly. The cover is suitable for residential, industrial, and agricultural applications.

• Complies with 2020 NEC Article 406.9 (B)(1) for wet locations and extra-duty applications
• UL Certified for Type 3R outdoor enclosures
• Meets cold impact testing requirements at -60 degrees Fahrenheit

Product Highlights

This receptacle cover is specifically designed for applications where exposure to the elements is a concern. It offers safety and reliability for outdoor electrical installations.

Product Information

Standard Information

• Brand: Intermatic
• Catalog Number: WP1250MVXD

Technical Specifications

• Material: Die-Cast Aluminum
• Mounting Type: Vertical
• Shape: Rectangular
• Depth: 4-5/8 inches
• Width: 3 4/5 inches
• Height: 6-3/8 inches
• Number of Gangs: 1
• Number of Outlets: 1
• Insulation: Neoprene Gasket
