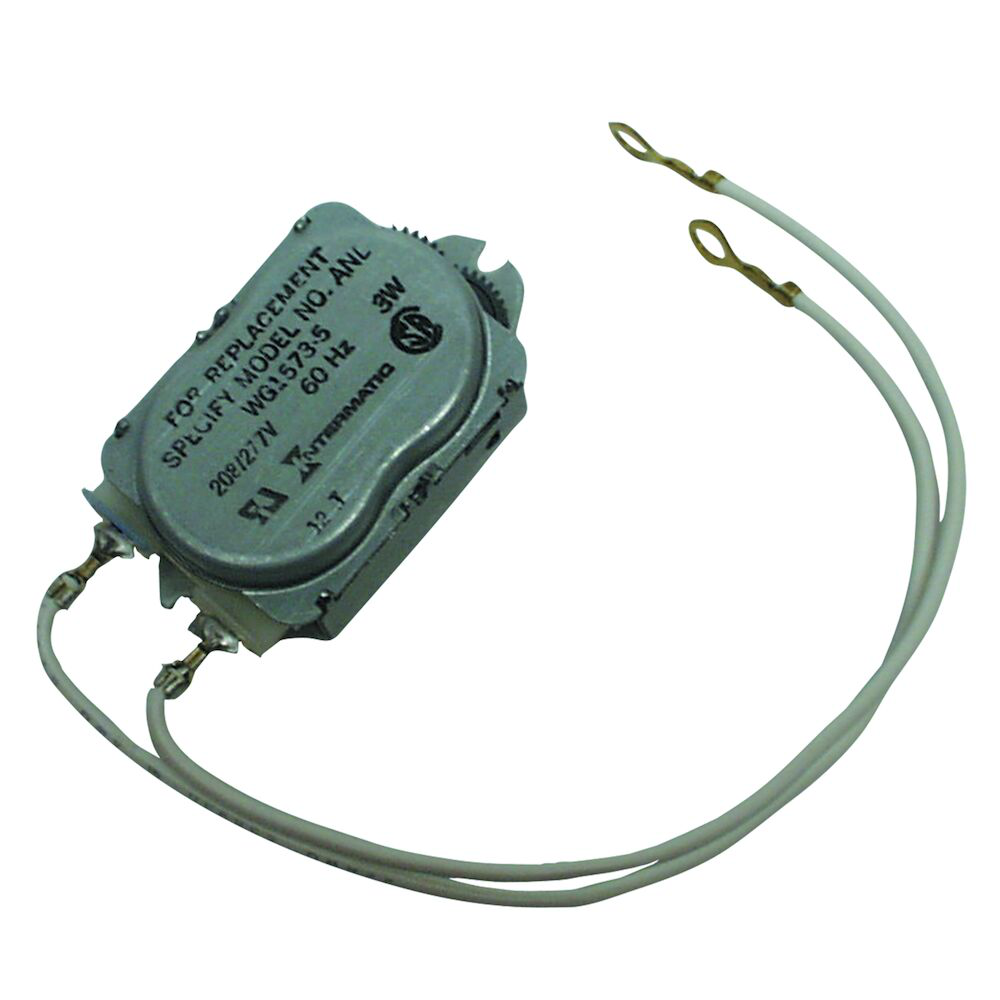

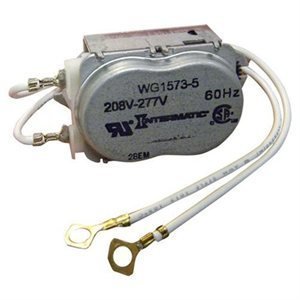

Intermatic WG1573-10D Timer Motor 220 Volts for T104M

Product Description

The Intermatic WG1573-10D is a timer motor designed for use in the T104M series. Operating on 208 to 277 VAC and with a frequency of 60 Hz, this motor provides reliable performance for time-controlled applications.

• Compatible with Intermatic T100 series
• High torque and durable
• Fixed tab connectors for easy installation

Product Highlights

This motor is compatible with the Intermatic T100 series and offers high torque, making it reliable for heavy-duty use. The fixed tab connectors ensure simplified installation.

Product Information

Standard Information

• Brand: Intermatic
• MPN: WG1573-10D
• Voltage: 208-277 VAC
• Frequency: 60 Hz
• Wattage: 3 W

Technical Specifications

• Manufacturer Part Number: WG1573-10D
• UPC: 078275020122
• GTIN: 00078275020122
• Dimensions: 2.2 in L x 1.4 in W x 3.1 in H
• Material: Steel
• Country of Origin: Mexico
• Standards and Approvals: CSA Certified, UL Recognized
• Suitable For Use With: T100, T102, T104, T170, T180, T100R201, T1400, T100-20, T100R301, and WH10, WH30, WH40 series mechanical time switches
