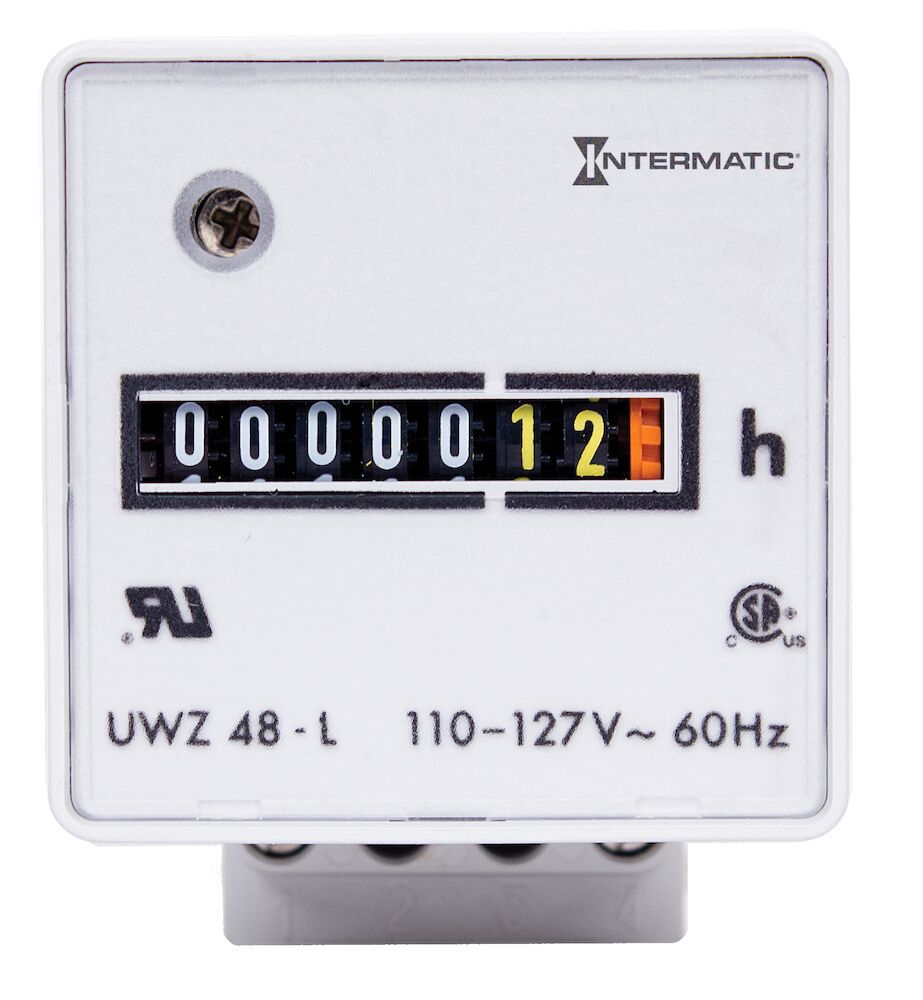

Intermatic UWZ48-120U AC Hour Meter 120V Surface Mount Screw Terminals

Product Description

The Intermatic UWZ48-120U Hour Meter is a reliable and precise device designed for tracking the operating time of machinery and equipment. This hour meter is built for surface mounting with screw terminals for easy installation. The meter operates at 120 volts and features a clear analog display for easy readability.

• Brand: Intermatic
• MPN: UWZ48-120U
• Operation: 120V

Product Highlights

The Intermatic UWZ48-120U Hour Meter is ideal for industrial control panels, pumps, HVAC equipment, and other indoor applications. It registers up to 99,999.99 hours of runtime and has high numeral digits for easy tracking.

Product Information

Standard Information

• Bezel: 1.89 inches by 1.89 inches (48 mm by 48 mm)
• Capacity: 99,999.99 hours

Technical Specifications

• Voltage: 120V
• Frequency: 60 Hz
• Mounting: Surface
• Digits: 7 digits
• Power Consumption: 1 VA
• Dimensions: 1.89 in L x 1.77 in W x 2.72 in D
• Operating Temperature: -40 to 160 degrees F (-40 to 72 degrees C)
• Enclosure: IP20
• Material: Plastic
• Weight: 2.5 oz
