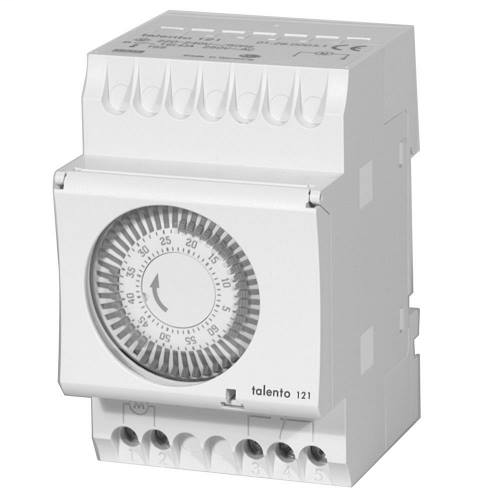

Intermatic TALENTO121-120 1HR CYC TMR SURORDNRL 120V 60HZ

Product Description

The Intermatic TALENTO121-120 is a synchronous motor driven electromechanical one-hour time switch. This timer is designed for industrial processes and other applications where a low-cost repeat cycle timer is needed. It performs continuous ON/OFF cycling of a load in a pattern repeating every hour. Captive trippers enable setting up to 24 ON/OFF times in 1.25-minute increments over an hour. This timer can be used with a Gr.sslin 24-hour or 7-day time switch for timed switching during specific periods. It can be DIN rail mounted or installed in a Gr.sslin indoor or outdoor enclosure.

• 1.25 minute resolution
• Up to 24 ON/OFF times per hour
• DIN rail or enclosure mounting

Product Highlights

This timer is ideal for a range of industrial applications due to its precision and flexibility. It's straightforward to install and configure, offering reliable performance in both indoor and outdoor environments.

Product Information

Standard Information

• Brand: Intermatic
• MPN: TALENTO121-120

Technical Specifications

• Size: 3.31 inches height x 2.13 inches width x 2.56 inches depth
• Type: Mechanical
• Voltage: 120 Volt
• Wattage: 750 Watt
• Amperage: 16 Amp
• Action: SPDT
• Enclosure: Type 3R
• Wire Size: 12 AWG
• Horsepower: 1 hp
• Applications: Indoor/Outdoor, Industrial Process
• Standard: CE, CULus Listed, CULus Recognized
• Contact Configuration: 1 NO/1 NC
• Operating Temperature: 0 to 131 degrees F
• Mounting Type: DIN, Surface
• Warranty Length: 1 year
