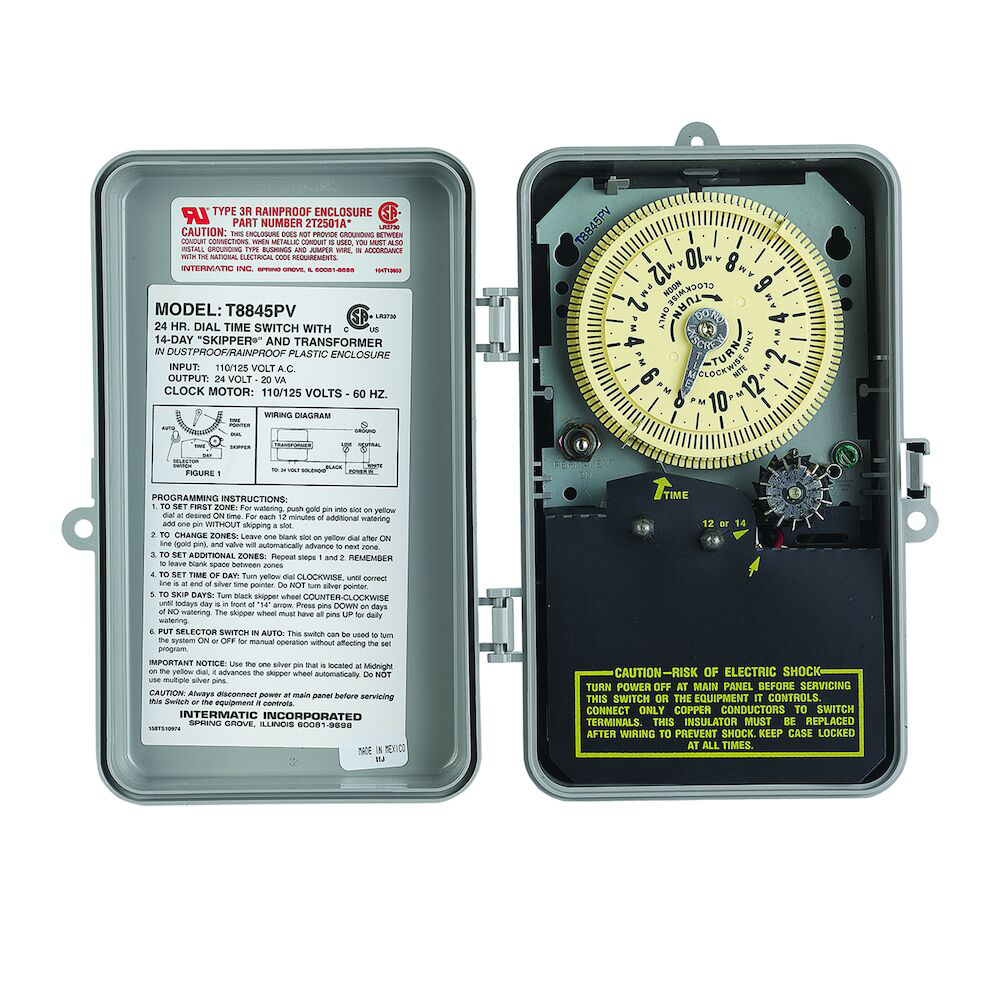

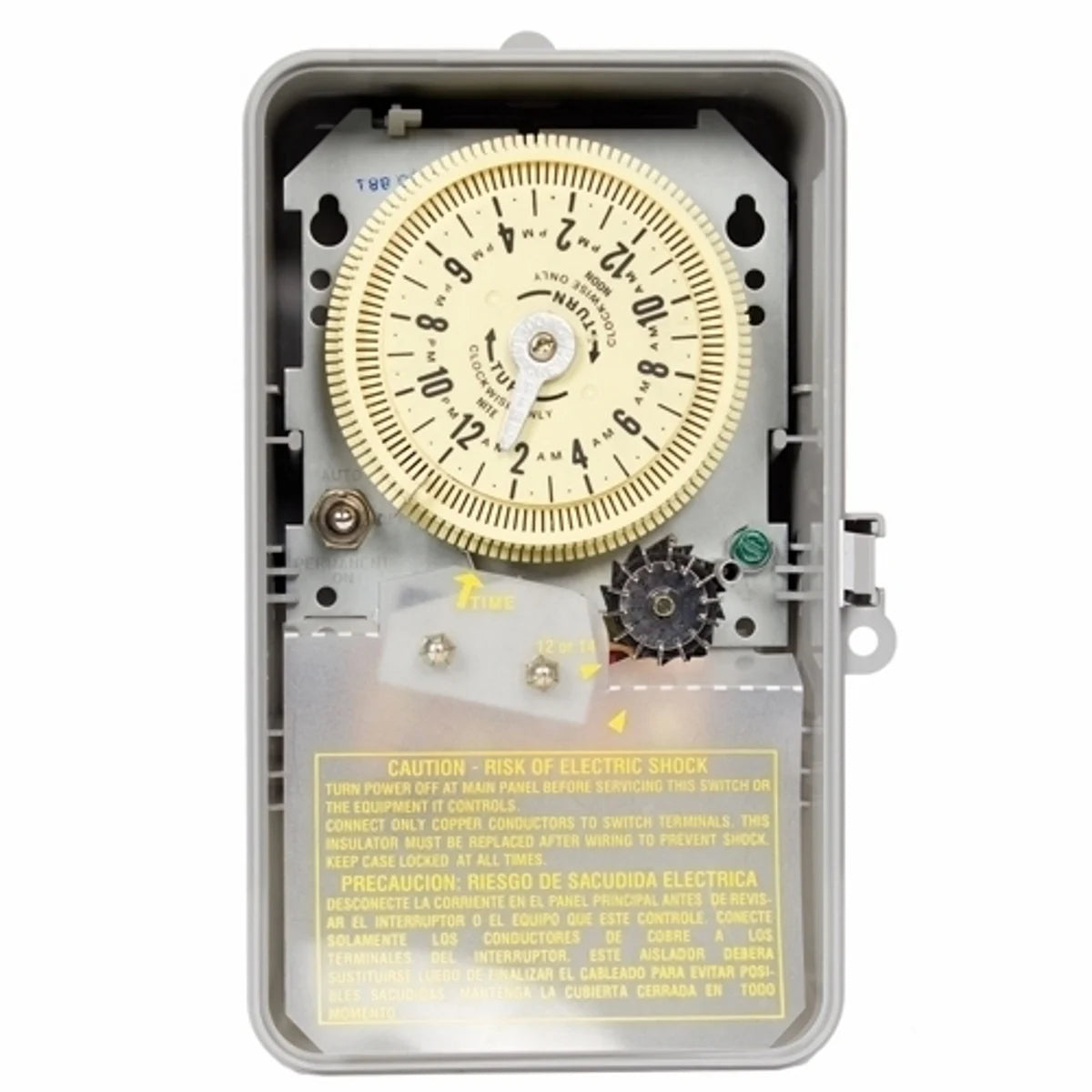

Intermatic T8845PV NEMA 3R Plastic Case 125 VAC 60 Hz 20 VA SPST Electromechanical Time Switch

Product Description

The Intermatic T8845PV is a clock timer designed for irrigational use. It operates at one hundred twenty-five volts alternating current and sixty hertz. This electromechanical timer is suitable for outdoor or indoor mounting due to its NEMA 3R rated enclosure.

• Permits up to forty-four on/off operations per day.
• Time range settings from twelve minutes to twenty hours and forty-five minutes.
• Allows for biweekly scheduling with a fourteen-day skipper feature.

Product Highlights

This timer is essential for efficient irrigation management, ensuring the right amount of water is delivered as needed.

Product Information

Standard Information

• Brand: Intermatic
• MPN: T8845PV

Technical Specifications

• Voltage: 24 VAC
• Amperage: 20 Amp
• Dimensions: 10 inches high x 6.5 inches wide x 4 inches deep
• Enclosure: NEMA 3R Plastic
• Contact Configuration: 1 NO (Normally Open)
• Type: Electromechanical
• Operating Temperature: -40 to 130 degrees F
• Switch Type: SPST
