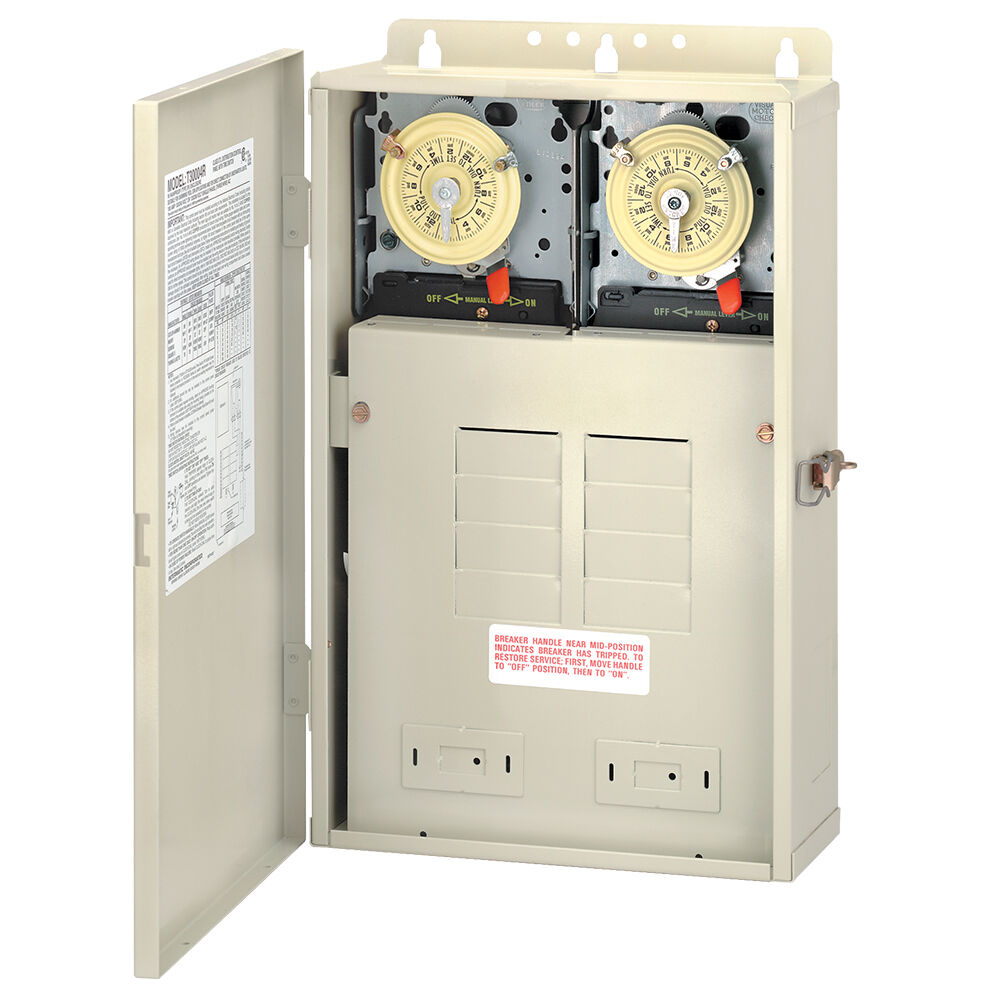

Intermatic T30404R NEMA 3R Load Center 240 VAC 60 Hz 100 Amp DPST/DPST Control System

Product Description

The Intermatic T30404R is a NEMA 3R load center designed for control systems operating at 240 VAC and 60 Hz with a capacity of 100 amps. This model can function as a standalone load center or be enhanced with additional mechanisms or wiring devices for complete control solutions, offering versatility in various applications.

• Features eight breaker spaces for extensive electrical distribution
• Compatible with hard-wired timers and other control devices
• Constructed for outdoor use with a weatherproof enclosure

Product Highlights

The T30404R is ideal for pool and spa installations, ensuring compliance with all electrical requirements. Its design eliminates the need for additional service panels, thus reducing installation costs.

Product Information

Standard Information

• Brand: Intermatic
• Catalog Number: T30404R

Technical Specifications

• Amperage Rating: 100 A
• Voltage Rating: 240 VAC
• Frequency: 60 Hz
• Dimensions: 16-1/2 in height, 10-7/8 in width, 4-1/2 in depth
• Enclosure Type: NEMA 3R
• Material: Metal
• Mounting Type: Wall Mount
• Operating Temperature: -40 to 130 degrees F
• Country of Origin: Mexico
