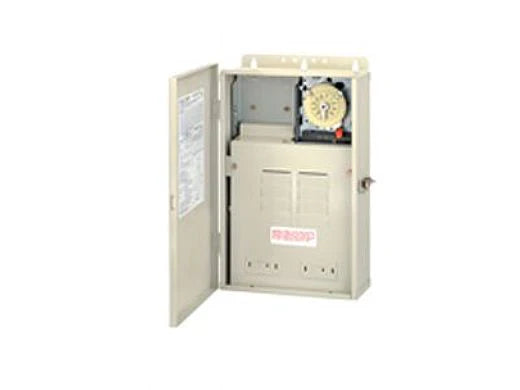

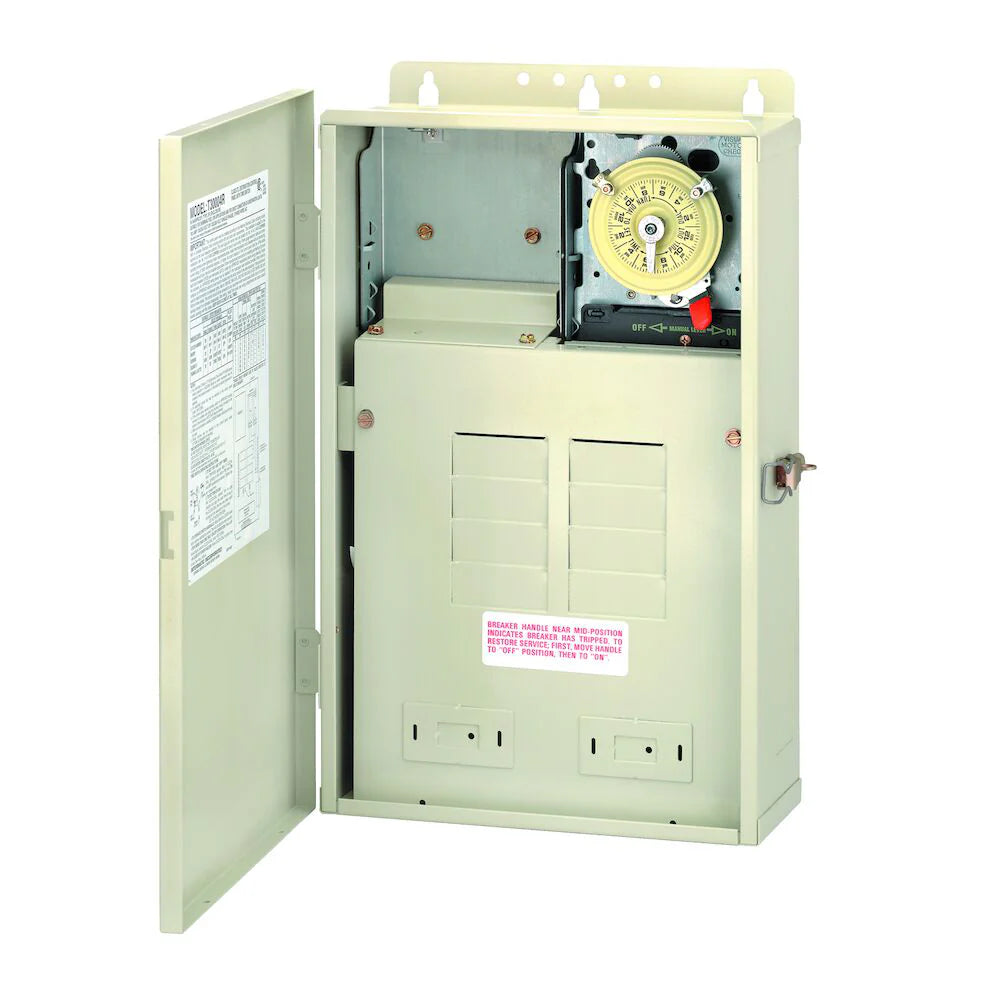

Intermatic T30004R NEMA 3R Load Center 240 VAC 60 Hz 100 Amp DPST Control System

Product Description

The Intermatic T30004R is a NEMA 3R load center designed for use in pool and spa applications with a voltage rating of two hundred forty VAC. It operates at a frequency of sixty hertz and supports an amperage of one hundred amp. This control system can function solely as a load center or can be enhanced with specific mechanisms or wiring devices for a complete control solution.

• Includes eight breaker spaces.
• Compatible with most T100 mechanical and PE digital timers.
• Supports two-speed pumps when used with the T30604R.

Product Highlights

Reduces installation costs and eliminates the need for extra service panels. The load center has provisions for wiring devices and features knockouts for additional installation options.

Product Information

Standard Information

• Manufacturer: Intermatic, Inc
• Country of Origin: Mexico

Technical Specifications

• Voltage Rating: 240 VAC
• Amperage Rating: 100 Amp
• Enclosure: Type 3R
• Size: 16-1/2 inches height x 10-7/8 inches width x 4-1/2 inches depth
• Frequency: 60 Hz
• Mounting Type: Wall Mount
• Temperature Rating: -40 to 130 degrees F
• Applications: Distribution/Control Panel, Motor Control, Pump Control
