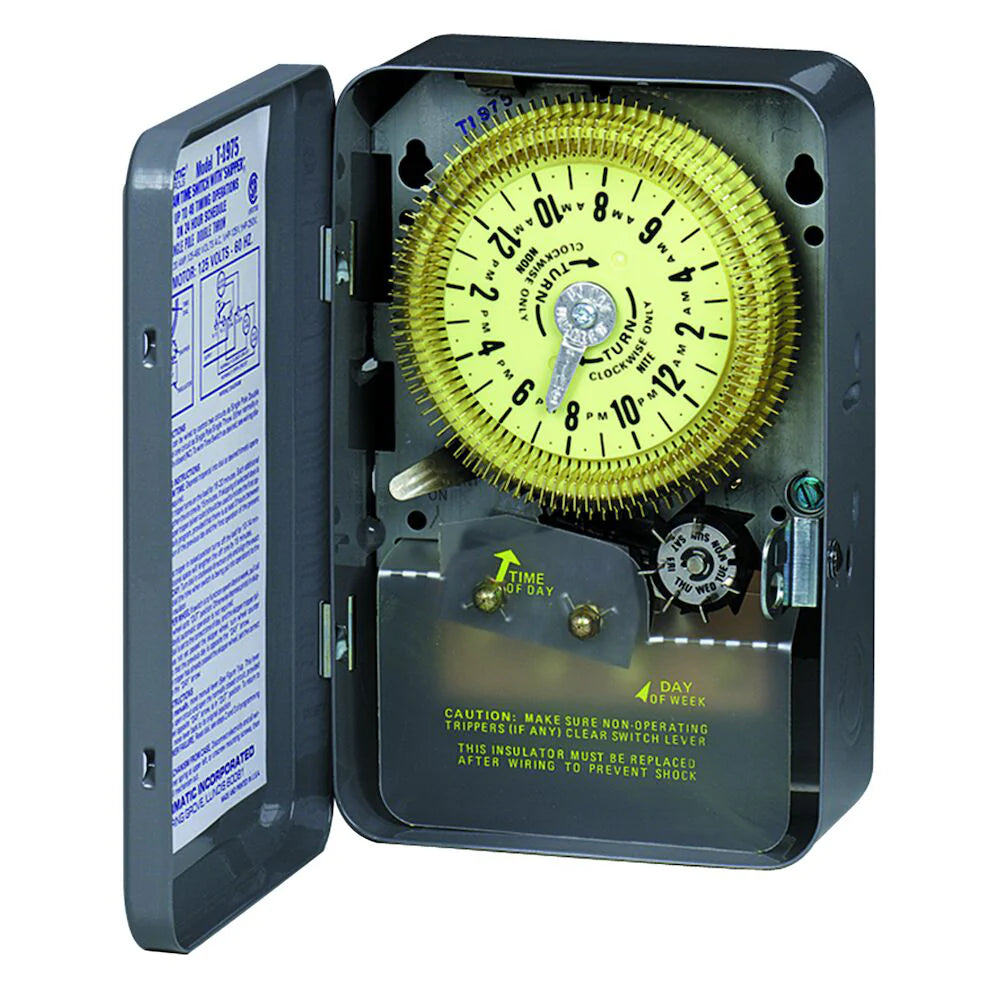

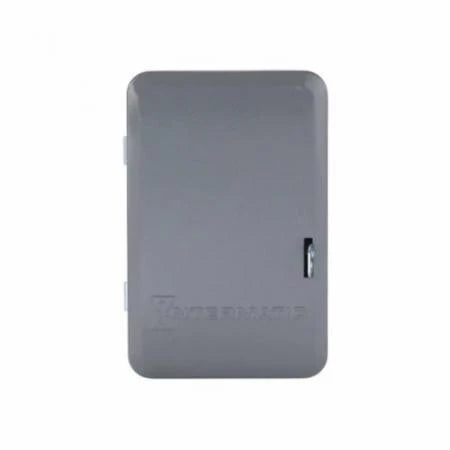

Intermatic T1976 NEMA 1 208 to 277 VAC 60 Hz 20 Amp SPDT Electromechanical Time Switch with Skipper Wheel

Product Description

The Intermatic T1976 is a NEMA 1 electromechanical time switch designed for controlling electrical loads from two hundred eight to two hundred seventy-seven volts AC. With a single pole double throw (SPDT) configuration, it allows for precise scheduling of lighting and other electrical devices.

• Controls up to 20 Amps of electrical load
• Features 15-minute interval scheduling
• Trippers allow for quick and accurate time setting

Product Highlights

This device is suitable for a variety of indoor applications where automated timing is required.

Product Information

Standard Information

• Manufacturer: Intermatic
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: T1976
• Voltage Rating: 208-277 VAC
• Frequency: 60 Hz
• Wattage: 3 W
• Dimensions: 7-7/8 inches H x 5-1/8 inches W x 3-7/16 inches D
• Contact Configuration: 1 NO/1 NC
• Contact Rating: 20 AMP @ 125/208 - 277/480 VAC
• Mounting Type: Wall Mount
• Special Features: Provides up to 96 operations (48 ON/48 OFF) every 24 hours
• Warranty Length: 1 year
• Operating Temperature: -40 to 130 degrees F
• Max Operating Temperature: 130 degrees F
• Min Operating Temperature: -40 degrees C
